Medical Models

Custom medical model by KiwiMill, built for trade shows, sales, and training.

Medical equipment models we build

KiwiMill builds models of medical equipment and devices for manufacturers' trade show and sales teams: CT scanners, MRI systems, linear accelerators, C-arm and dental X-ray units, lab automation, and orthopedic implants.

Big systems shrink to tabletop size (a 1/4 scale MRI with a detachable patient table packs down for travel), and small devices grow, with hip, knee, shoulder, and spine implants built three to five times life size so a booth visitor can see the surface finish and how the parts fit together. Models can move and light up, like a C-arm whose lift, arm rotation, and LED X-ray emitter run from a wireless foot pedal and handheld remote.

Recent Medical Models

All 19 projects

Mobile Cleanroom Model

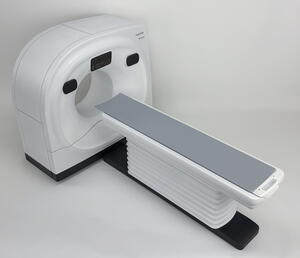

iStream CT scanner scale model by KiwiMill, gantry and patient table shown at an angle against a white backdrop

iStream CT Scanner Model

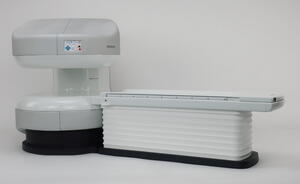

Open MRI scale model at 1/4 scale in side view, with the patient table docked against the magnet gantry

MRI Model

Blood separator scale model at three-quarter angle, yellow plasma and red cell layers inside a clear acrylic tube

Separator Model

Gene sequencing scale model from above, showing glass-walled enclosures, red modules and a gray carousel on black shelving

Gene Sequencing Model

Rotifer display model hanging against a light backdrop, its translucent shell showing reddish internal structures

Protozoa Display Models

Water bear model in three-quarter front view on a gray foam block, with a marker pen beside it for scale

Protozoa Models

Hip Implant Model

Shoulder Cup Model

Knee implant model at 3.5x scale, rear angled view of chrome condyles on cream insert and tibial tray on a black stand

Medical Implant Models

Handheld thyroid analysis device prototype with white cast housing, metal ball-tipped legs and flat ribbon cable

Medical Prototype Model

Spine Implant Model

Linear accelerator scale model seen from above, gantry upright with gray covers and imaging panel over a black base

Linear Accelerator Model

CT scanner model's white overhead gantry arm beside a patient table with pleated bellows base, on a black display base

CT Scanner Model and Patient Table

CT scanner scale model with ring gantry and patient table, shown at an angle on a wooden desk

CT Scanner Model

C-arm X-ray scale model in three-quarter view, showing cream base column, dark gray C-arm and T-shaped floor stand

C-Arm X-Ray Model

Dental x-ray sensor model at 13x scale, viewed from the cable end, beside the actual small sensor and its cord

Dental X-Ray Model

Medical wall stand close-up of the white joint housing with a screwed cover plate and a black locking knob on the arm

Medical Study Model

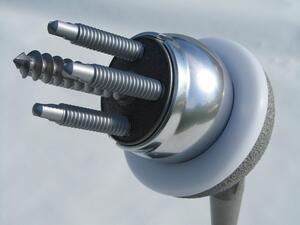

Shoulder implant model close-up of polished dome, baseplate and four screws above white liner and textured stem top

Shoulder Implant Model for Training

Frequently asked questions

How much does a medical model cost?

Models typically start around $6,000. Multi-model projects often run $10,000 and up. For medical work, price depends on size, the finishes needed (chrome, clear, or textured surfaces), any motion or remote control, and whether you need a matched set, such as hip, knee, and shoulder implants. A quote is free.

Can you make a small device big enough to see across the booth?

Yes. We've built a blood separator six times life size, with clear acrylic and clear 3D printed parts so you can follow the path inside, and a dental X-ray sensor thirteen times life size. Implant models can be modular, with parts that nest together or attach with magnets, so a rep can take them apart in front of a customer.

Can the model show how the system moves around a patient?

Yes. Our C-arm X-ray model raises, lowers, and rotates its arm on command from a wireless foot pedal and remote, with a blinking LED as the emitter. We've also built a gene sequencing lab model showing a robotic arm moving samples from machine to machine.

How close can you get to the real finish?

Very close. We've used vacuum-metalized chrome and clear coat to match polished implant surfaces, built up texture on a shoulder cup to resemble the real product, used brushed stainless steel for a mobile cleanroom interior, and layered paint colors and textures on an MRI to match its housing.

Have a project like these? Let's talk.

Send photos or CAD of your product plus your deadline — we'll come back with a price and a timeline. In 60+ years, we've never missed a client's show date.
