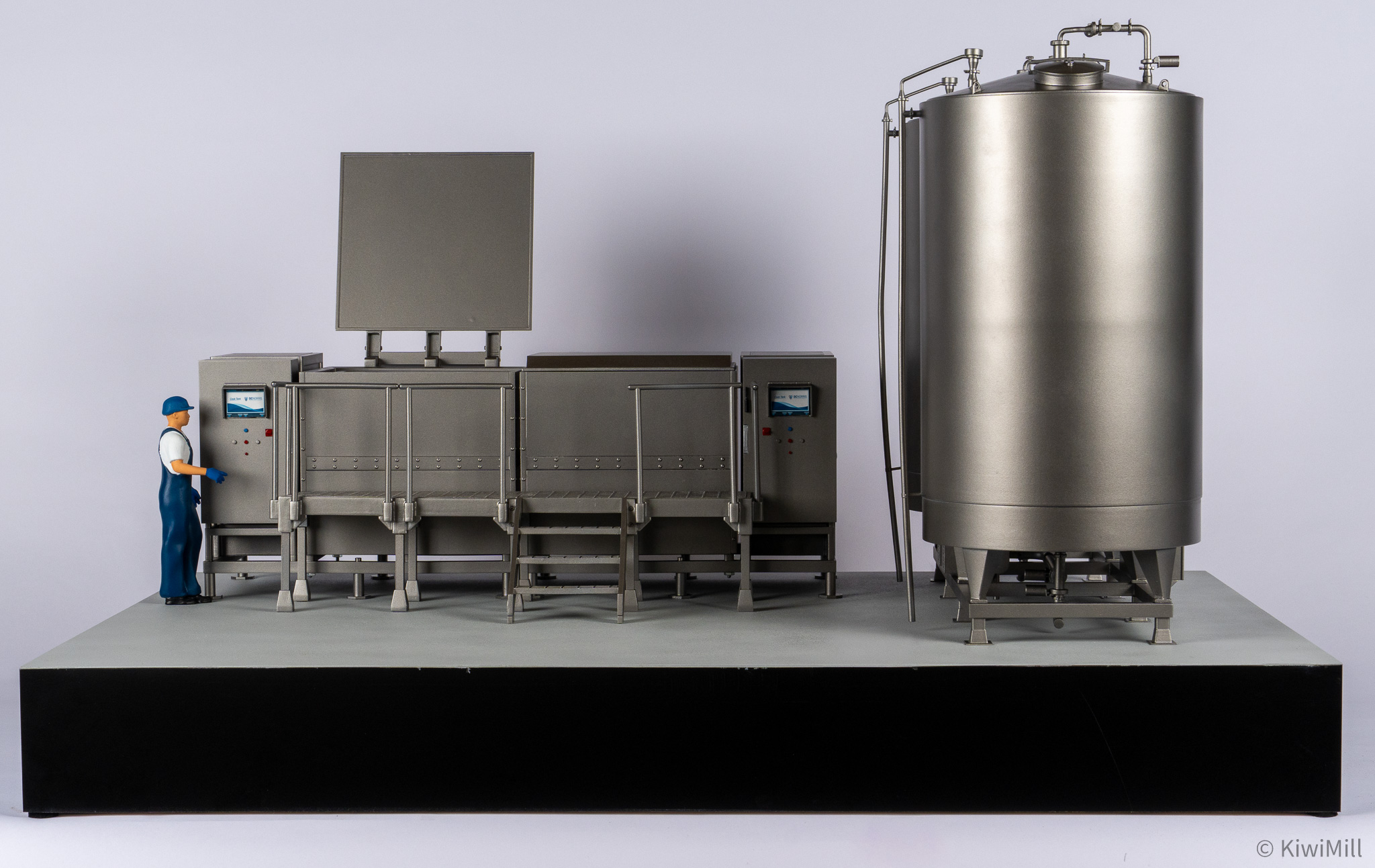

Sous vide cook tank model from the front, lid propped open to show the cooking basket grid, water tanks at right

Eye-level front view of the cook tank model with raised lid, handrails and stair, tanks lined up behind each other

Cook tank scale model from the front left with lids closed, showing the grated platform and conical tank bottoms

Low left-side view of the cook tank model showing the control cabinet touchscreen, stair and twin water tanks

Water tanks seen from the front right, top manway and piping on the near tank, cook tank platform behind

Low right-side angle of the two water tanks on their frames, with the cook tank and handrails in the background

Front view of the sous vide cook tank model with both lids closed and red and blue push buttons on the end cabinets

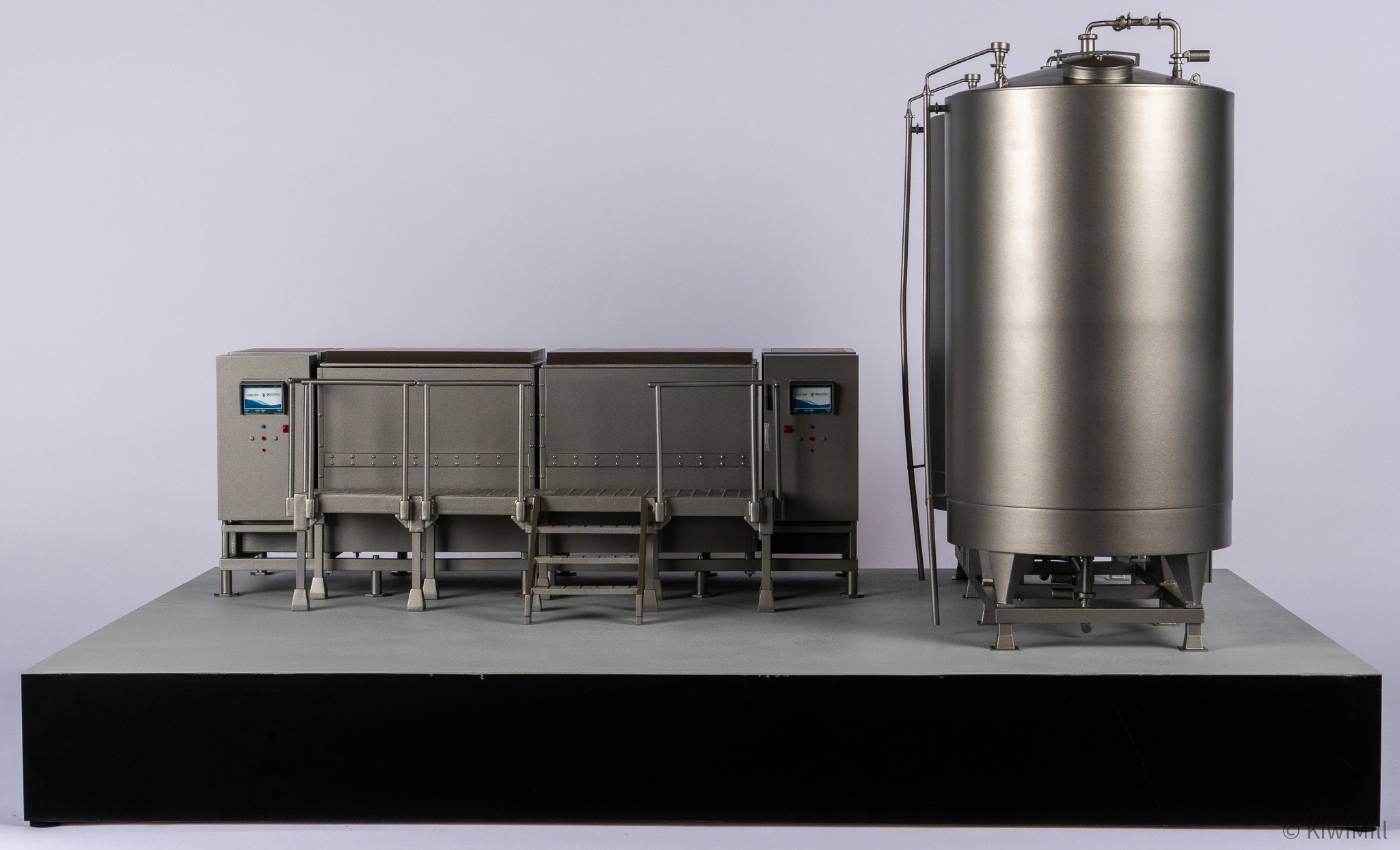

Straight-on front elevation of the closed cook tank, operator platform and stair, with one water tank hiding the other

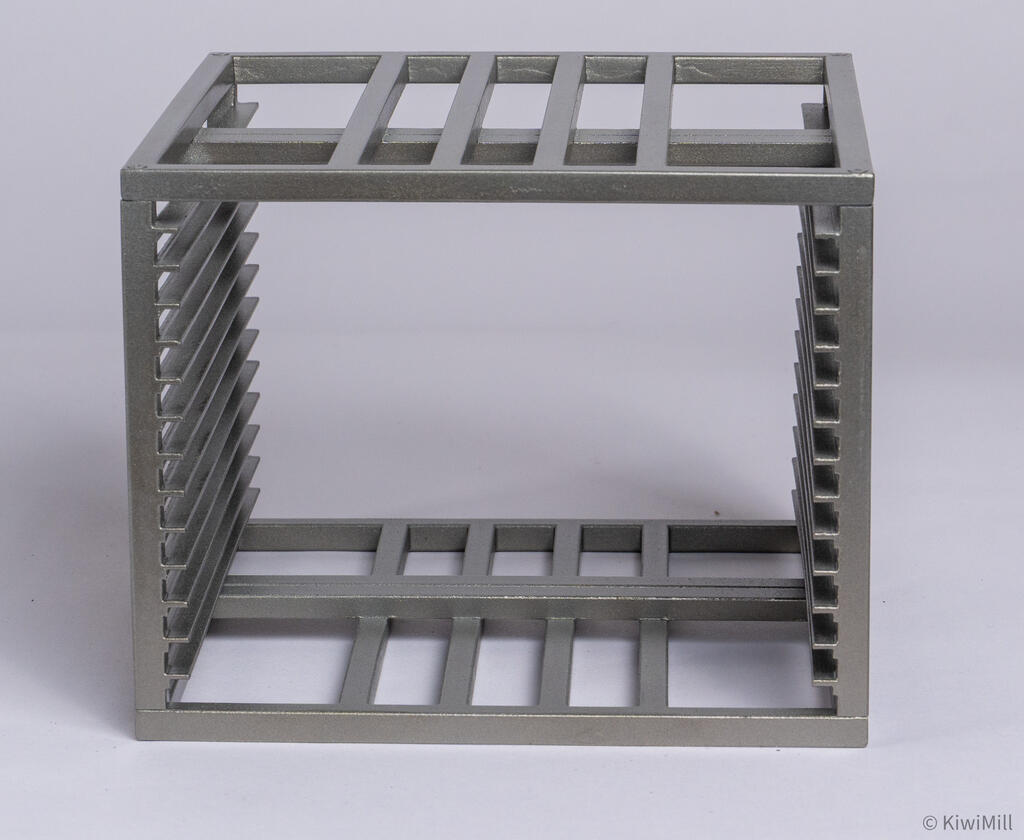

Removed cooking basket from the cook tank model, side view of the bar grid frame with rows of shelf slots

Cooking basket shown at an angle, an open metal grid cage with slotted side rails and a barred top and floor

Rear view from above of the cook tank model, showing lid hinge brackets and pipe fittings on the end cabinets

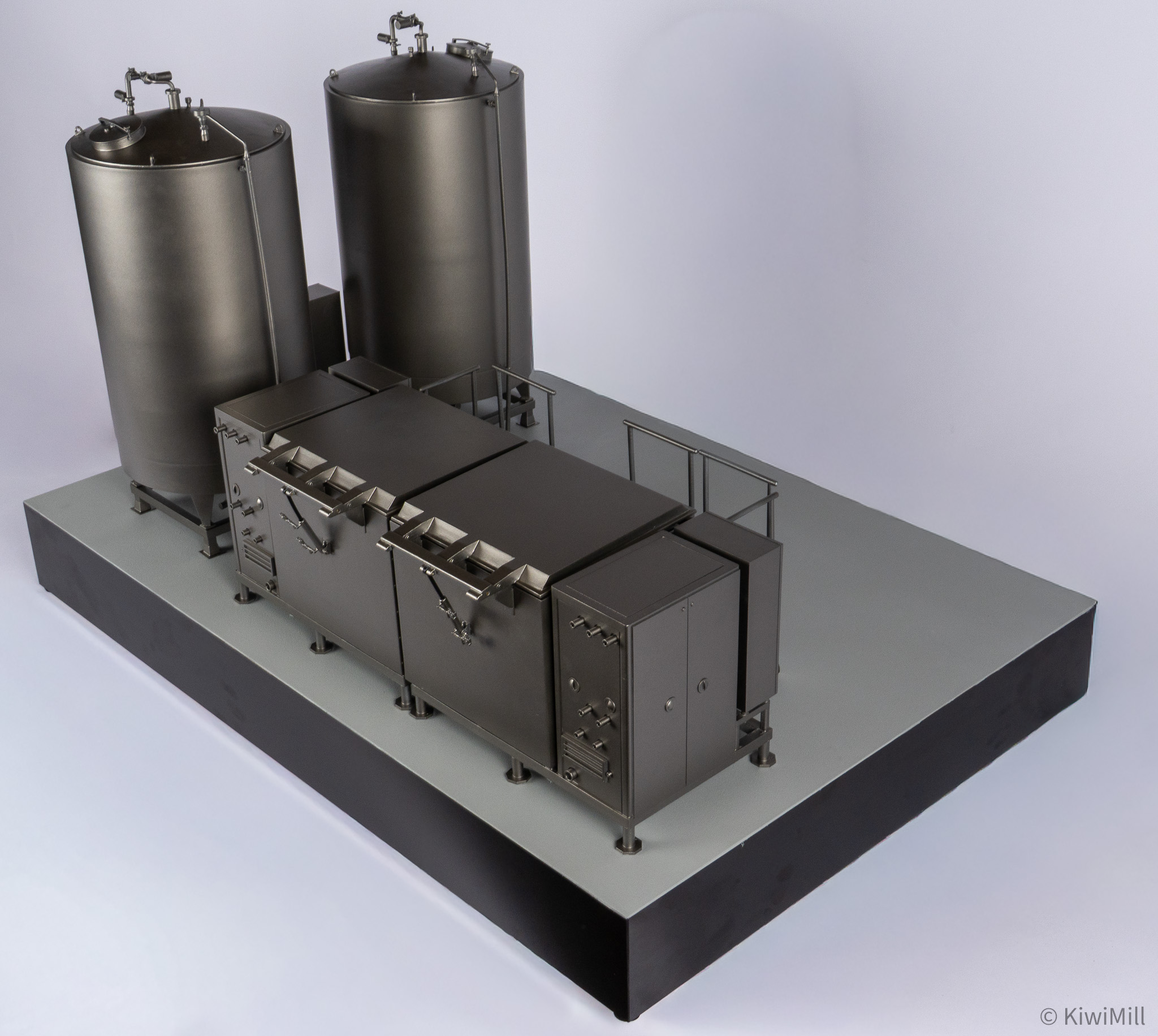

Low rear angle of the cook tank model with hinge linkages on each tank wall and water tanks rising behind

High rear view of the water tank tops with manways and valves, plus a small enclosure between the tank frames

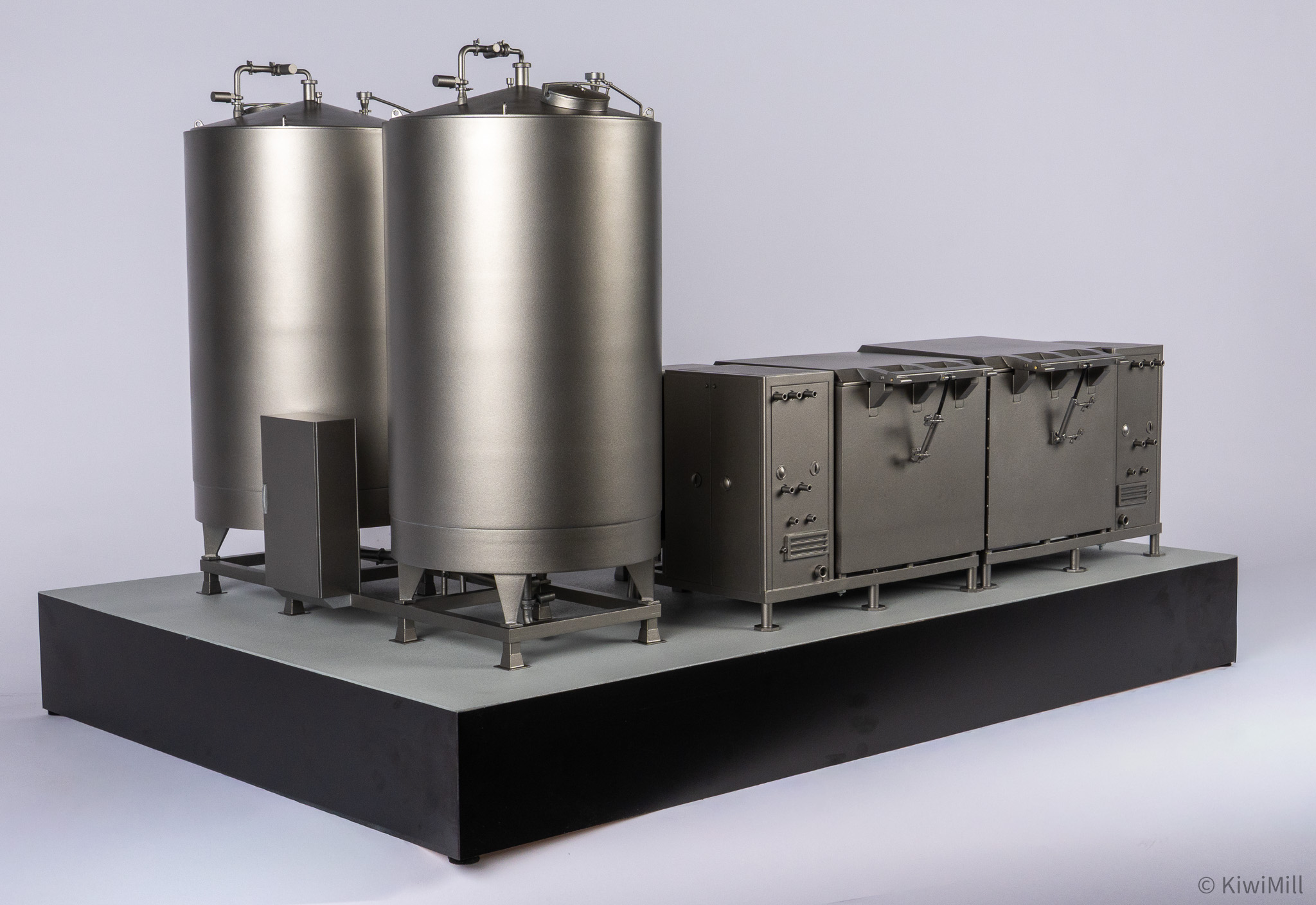

Rear side view of the model with tall water tanks and conical bottoms at left and the cook tank units at right

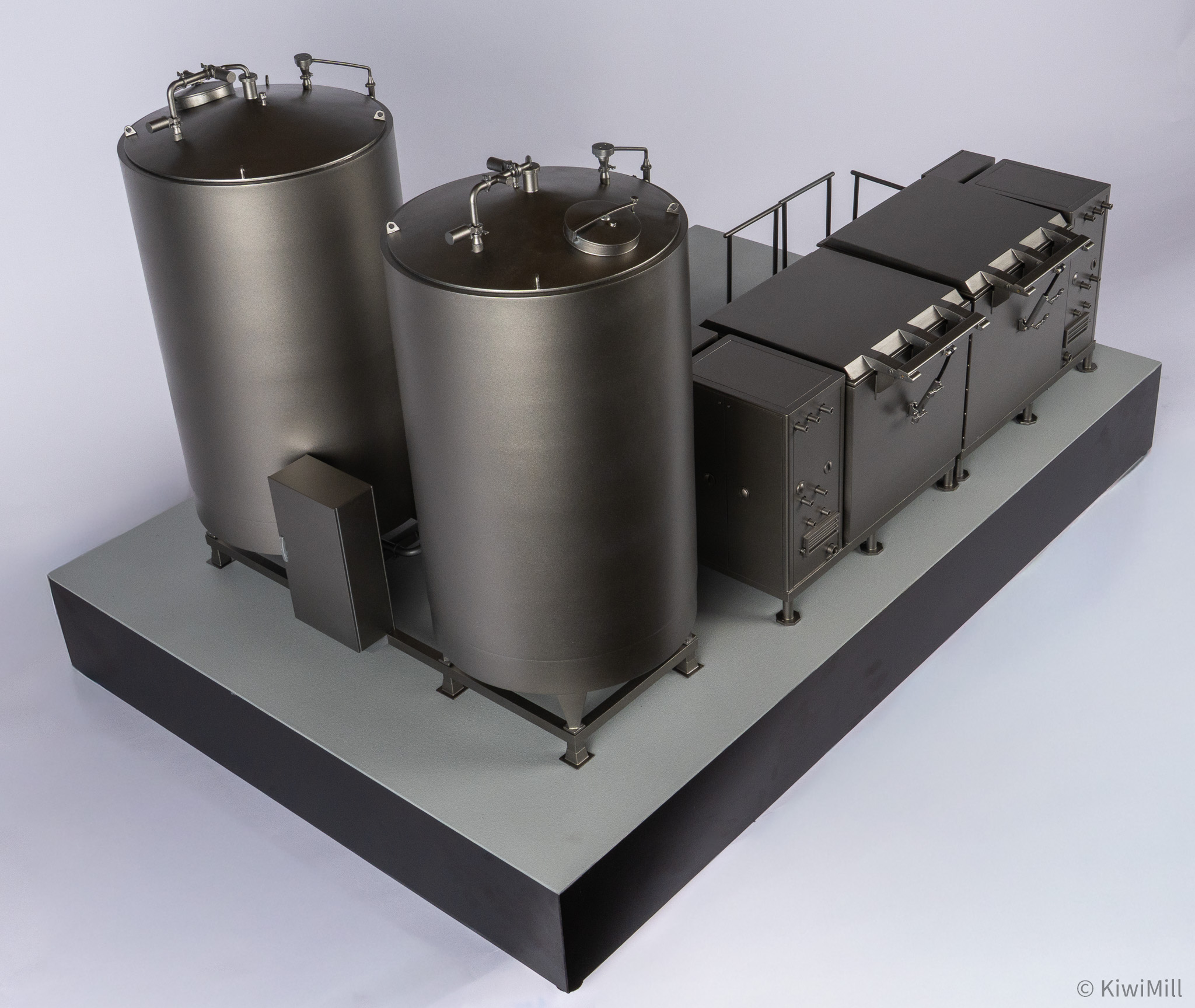

Overhead rear view of the full layout, two tank lids and piping beside the cook tank's hinged lids and handrails

Rear elevation at an angle showing the cook tank's hinge arms, side vents and pipe connections on the end cabinets

Back of the cook tank model from the right, two hinged lid sections between end cabinets with fittings and vents

Low rear view of the cook tank with lid hinge arms and vent grilles, the two water tanks standing at left

Straight rear elevation of the model, the cook tank's lid hinges and end cabinets beside the two water tanks

Industrial Sous Vide Equipment for Food Manufacturing

Portfolio Industrial Models

Industrial Sous Vide Cook Tank and Water Tanks Scale Model

18.5" L x 31.5" W x 17.5" H

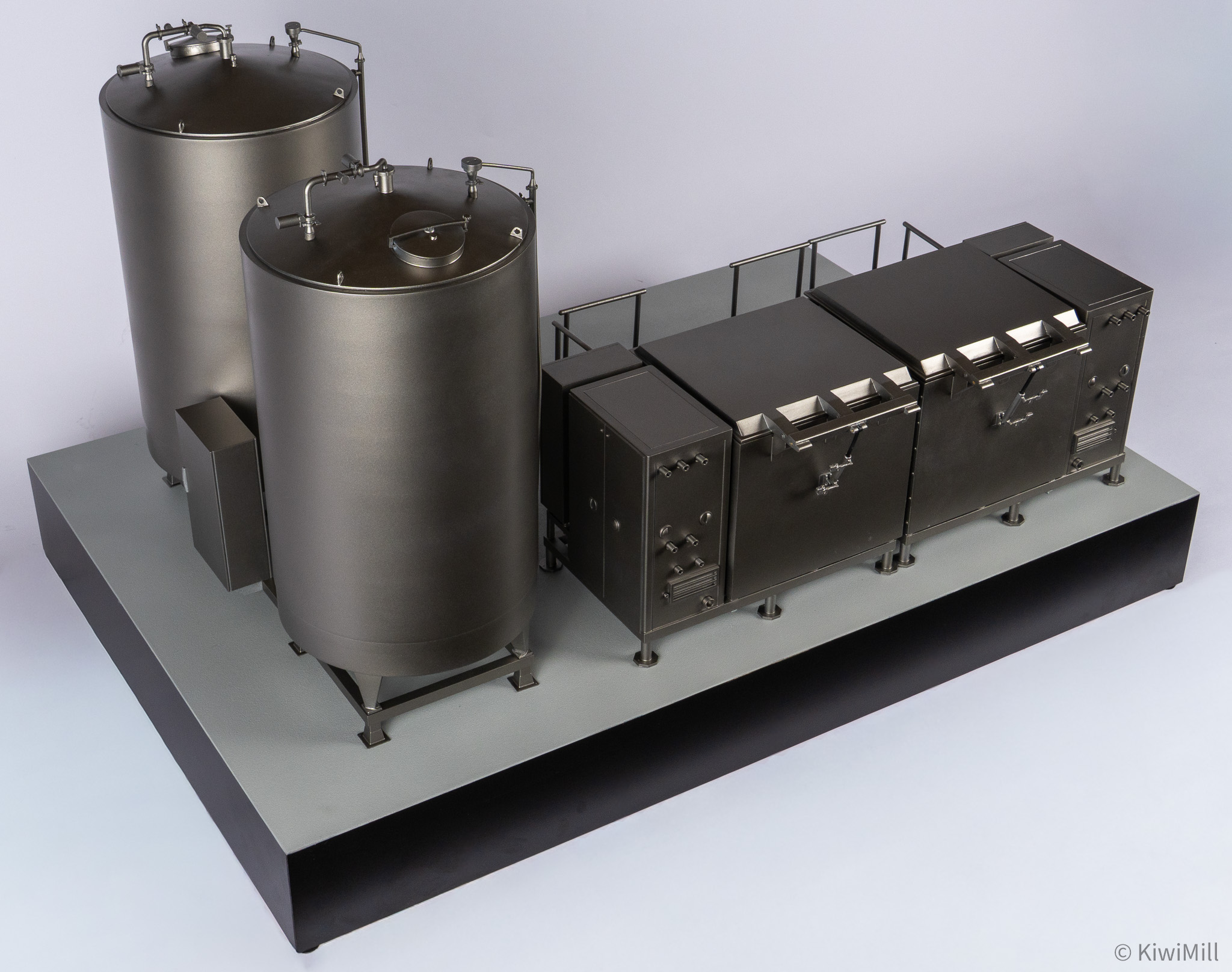

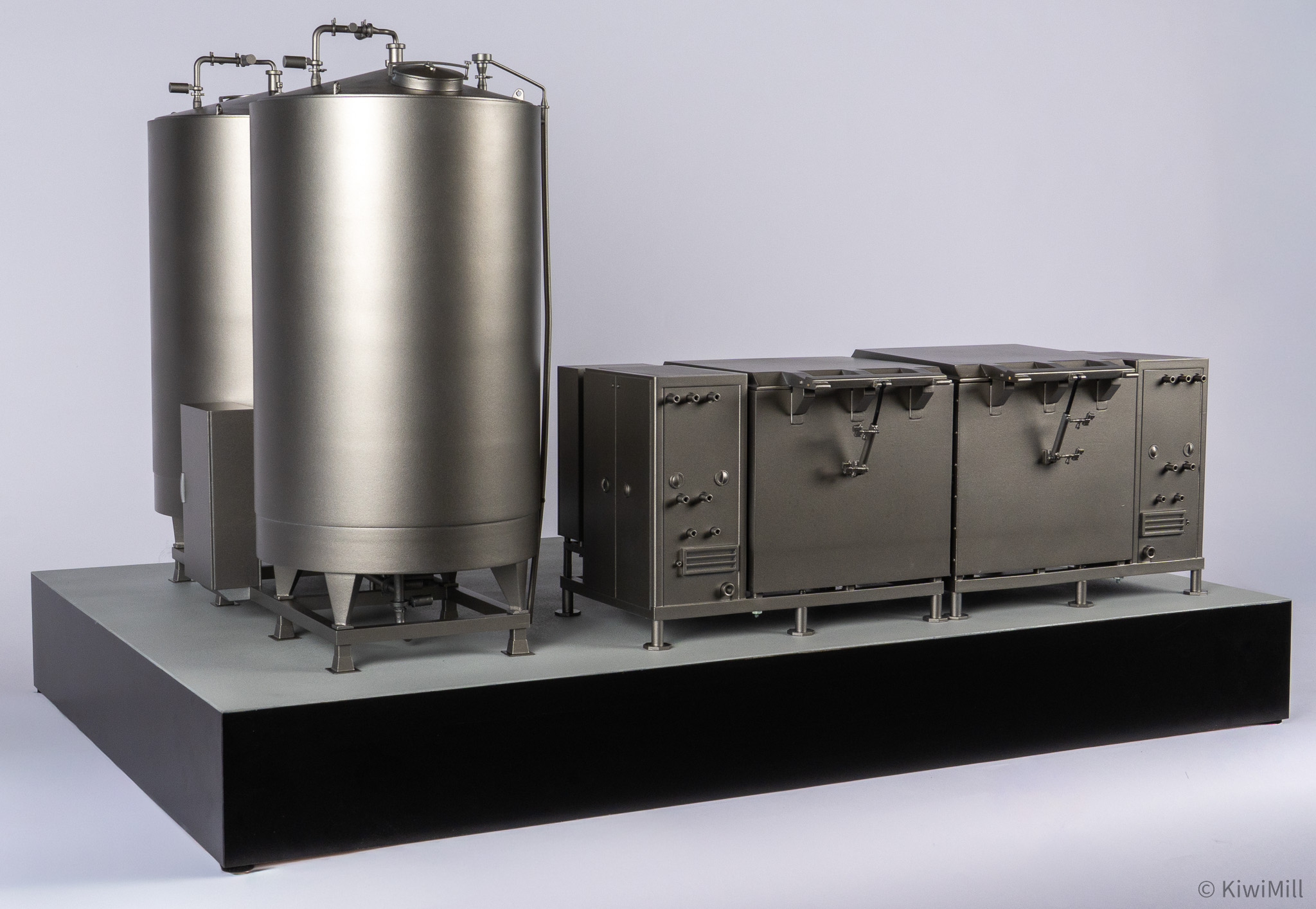

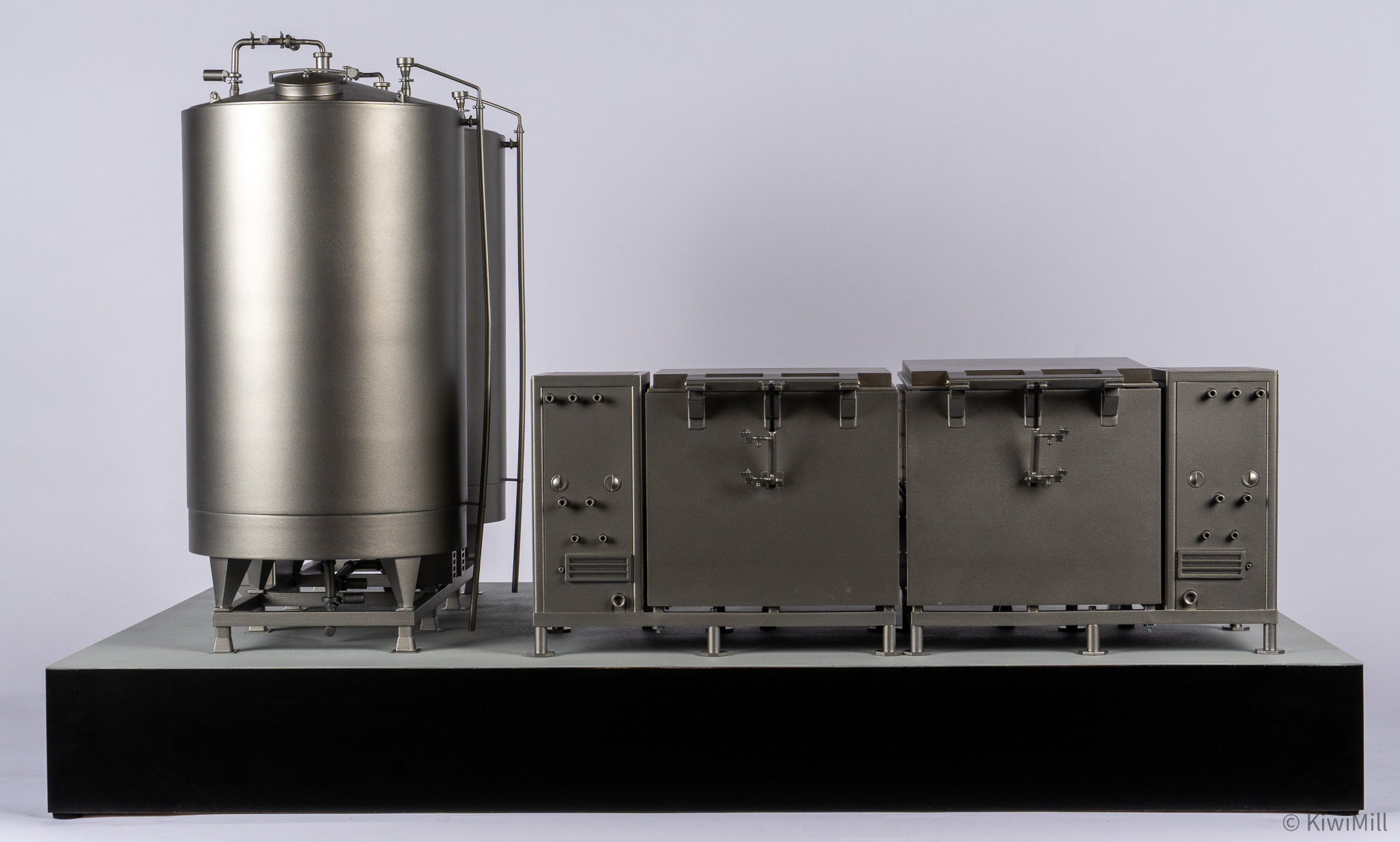

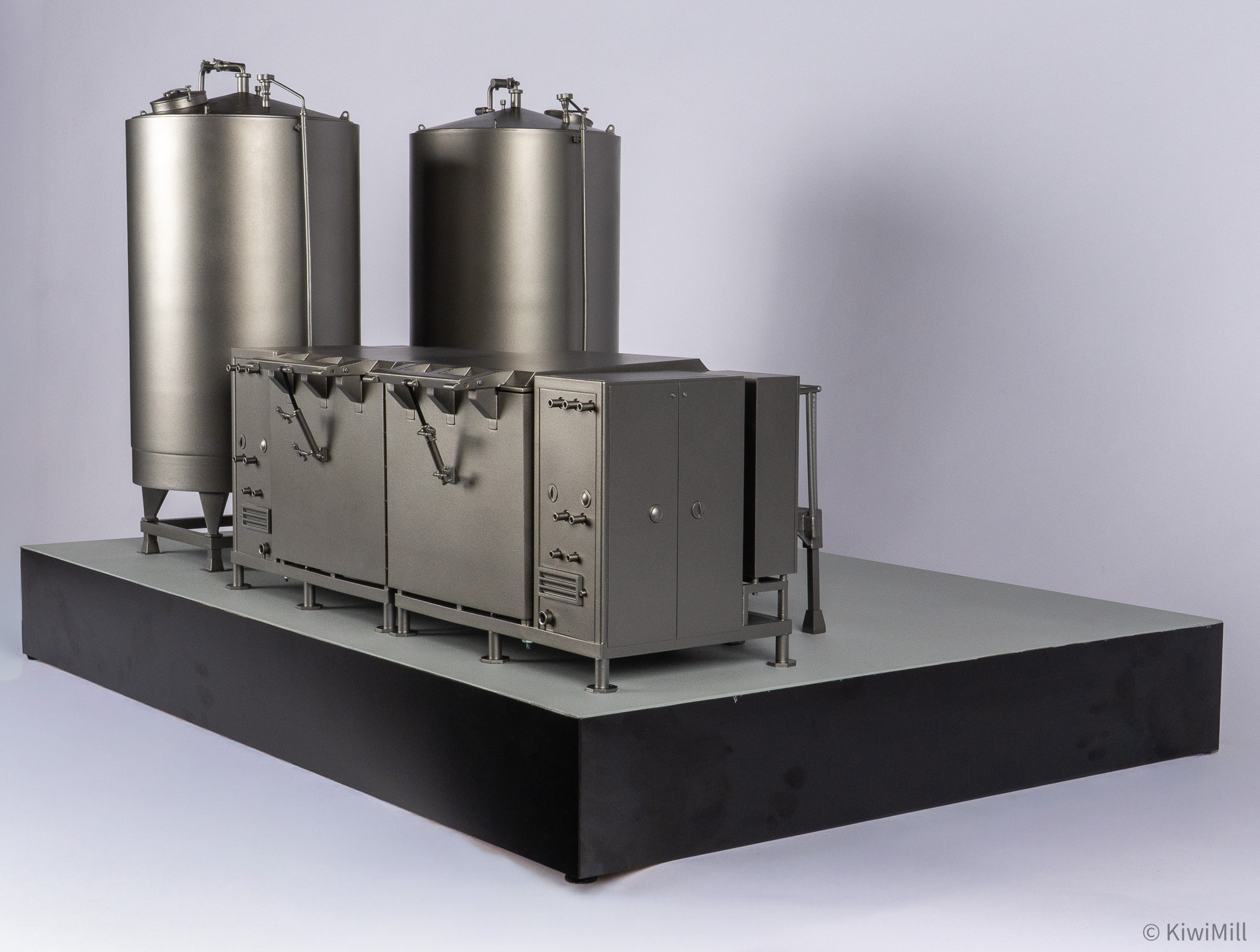

This industrial sous vide cook tank model first looks like two tall water tanks standing beside a long, low processing unit, all in the same brushed metallic finish. The real system is industrial food manufacturing equipment that slow-cooks vacuum-sealed products in a circulating water bath, and those two tanks hold the temperature-regulated water the process depends on.

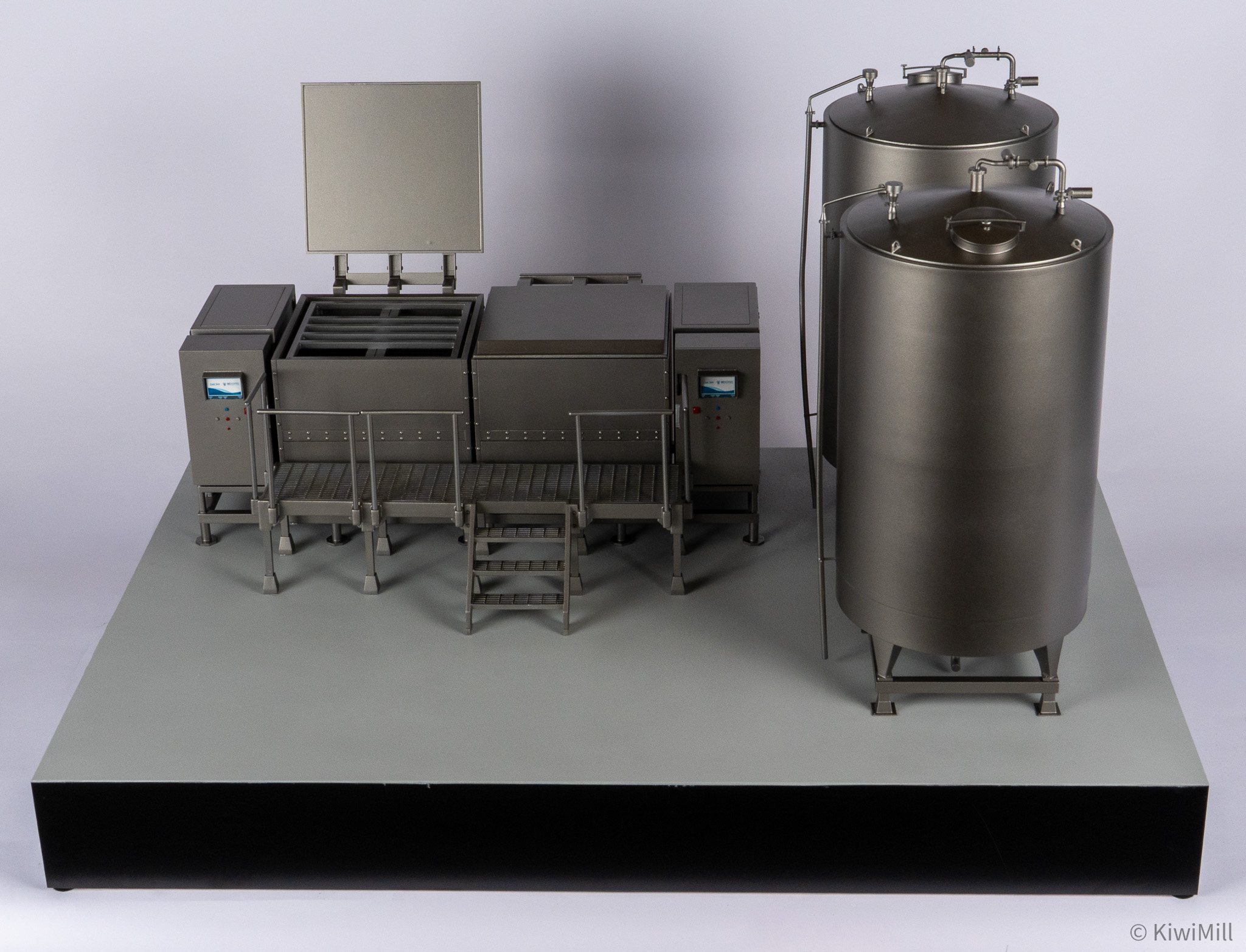

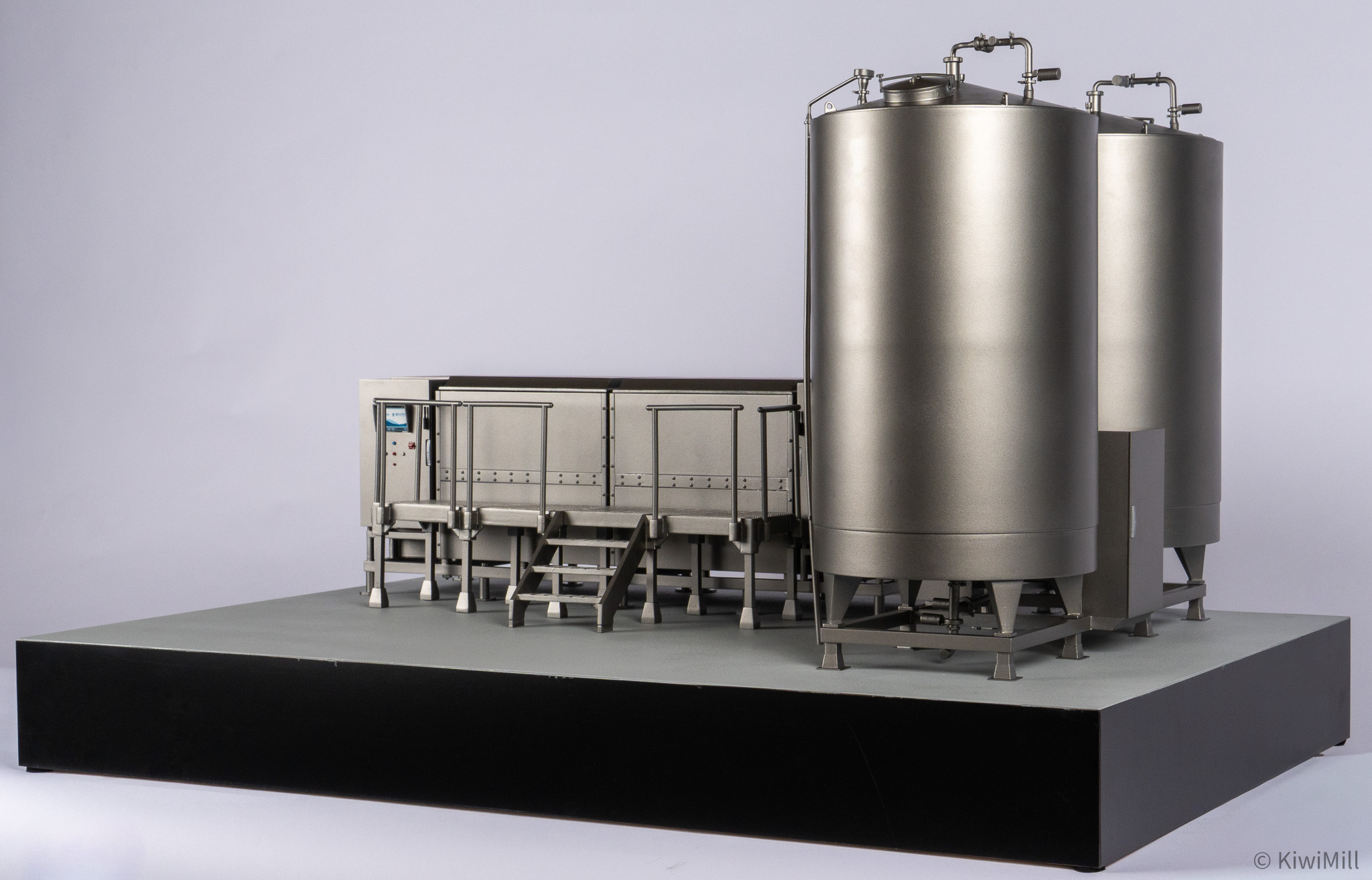

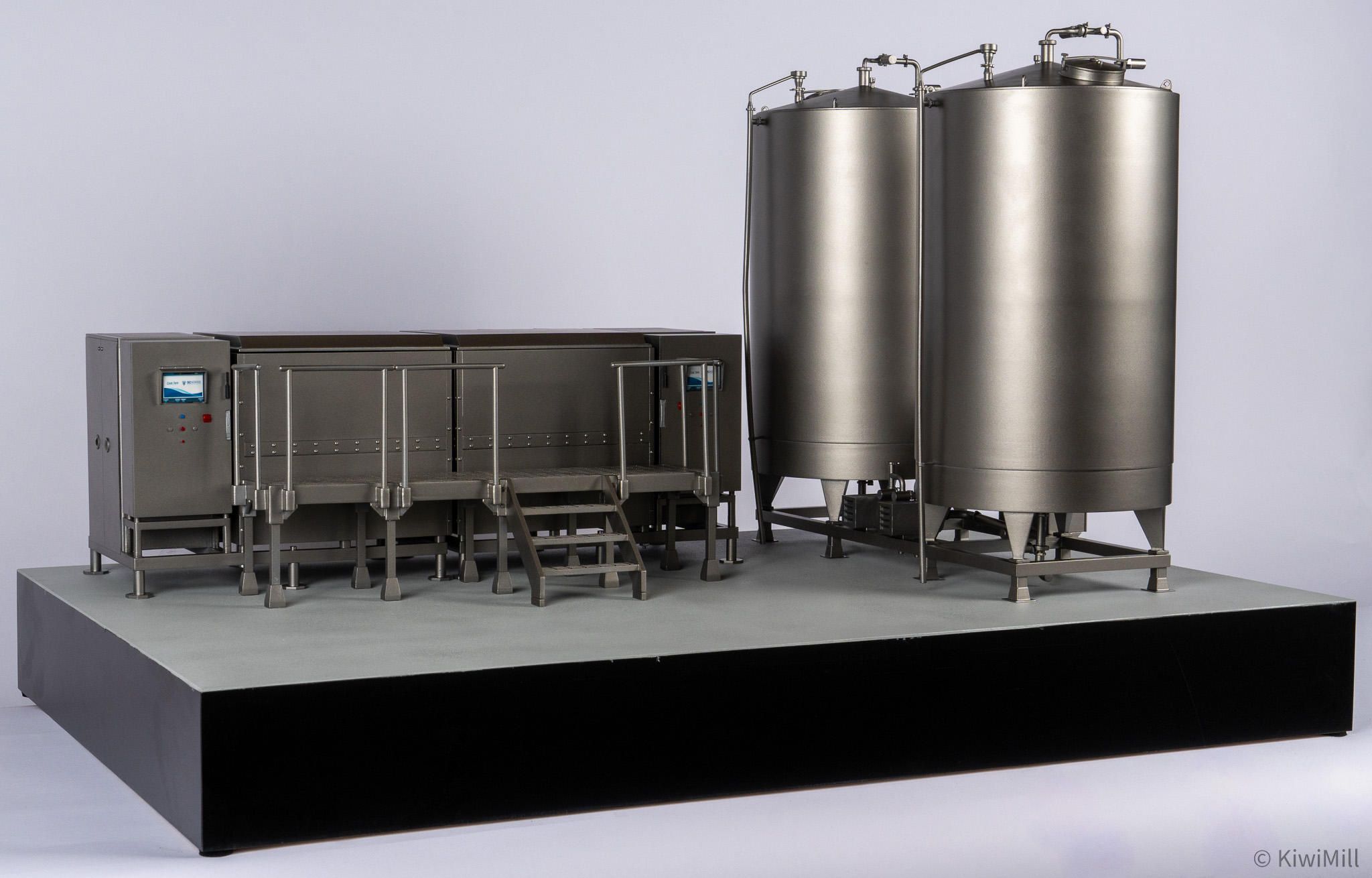

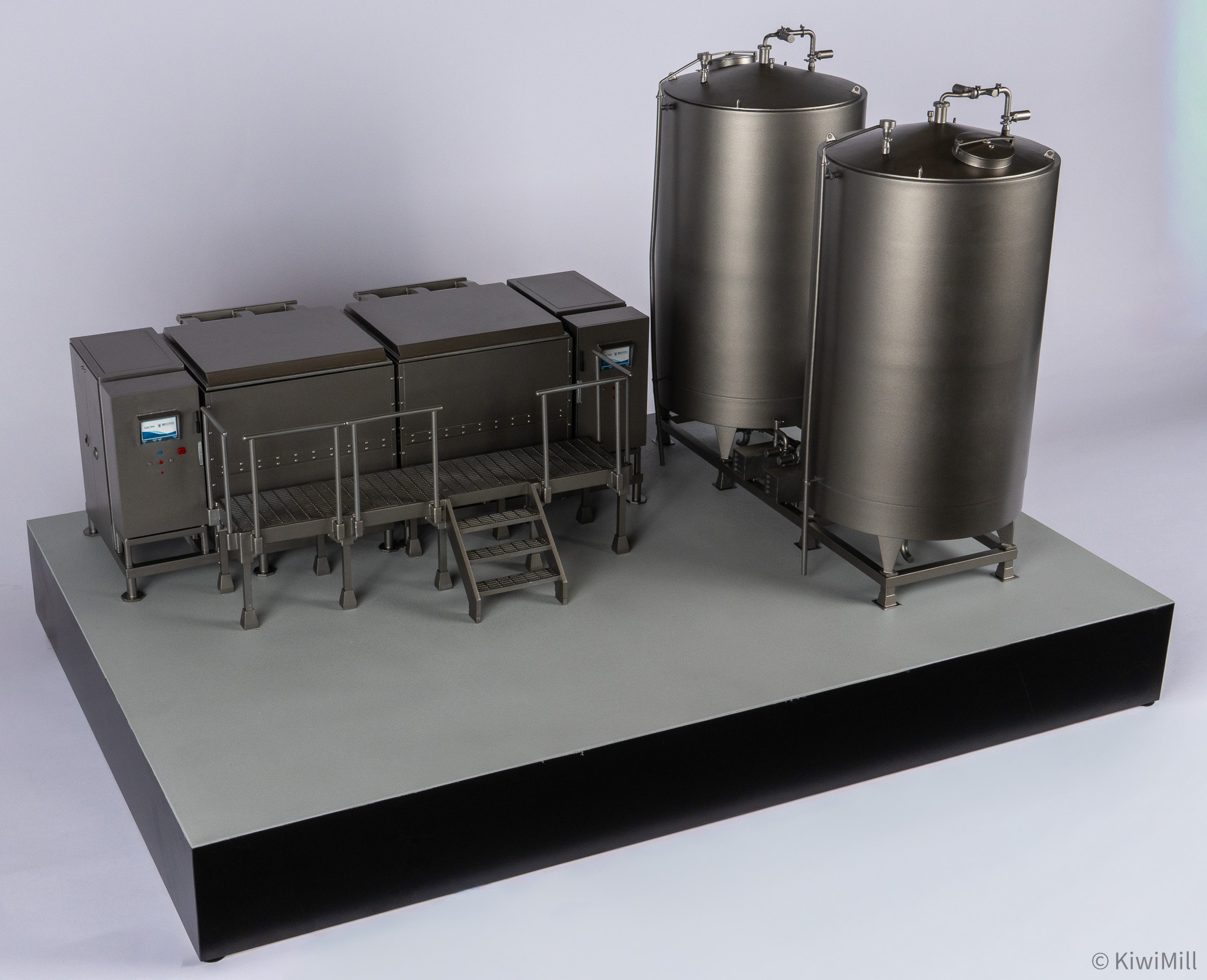

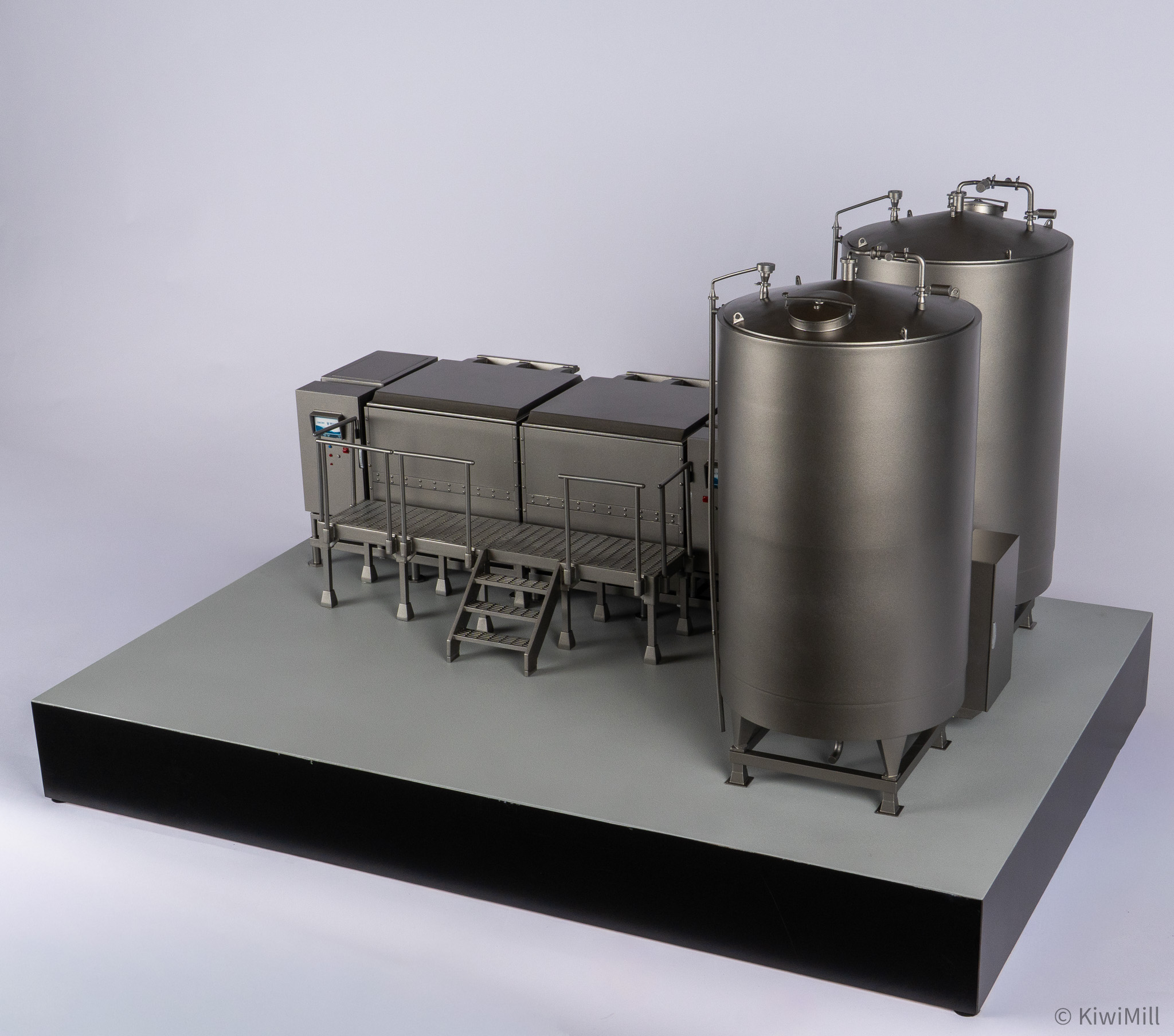

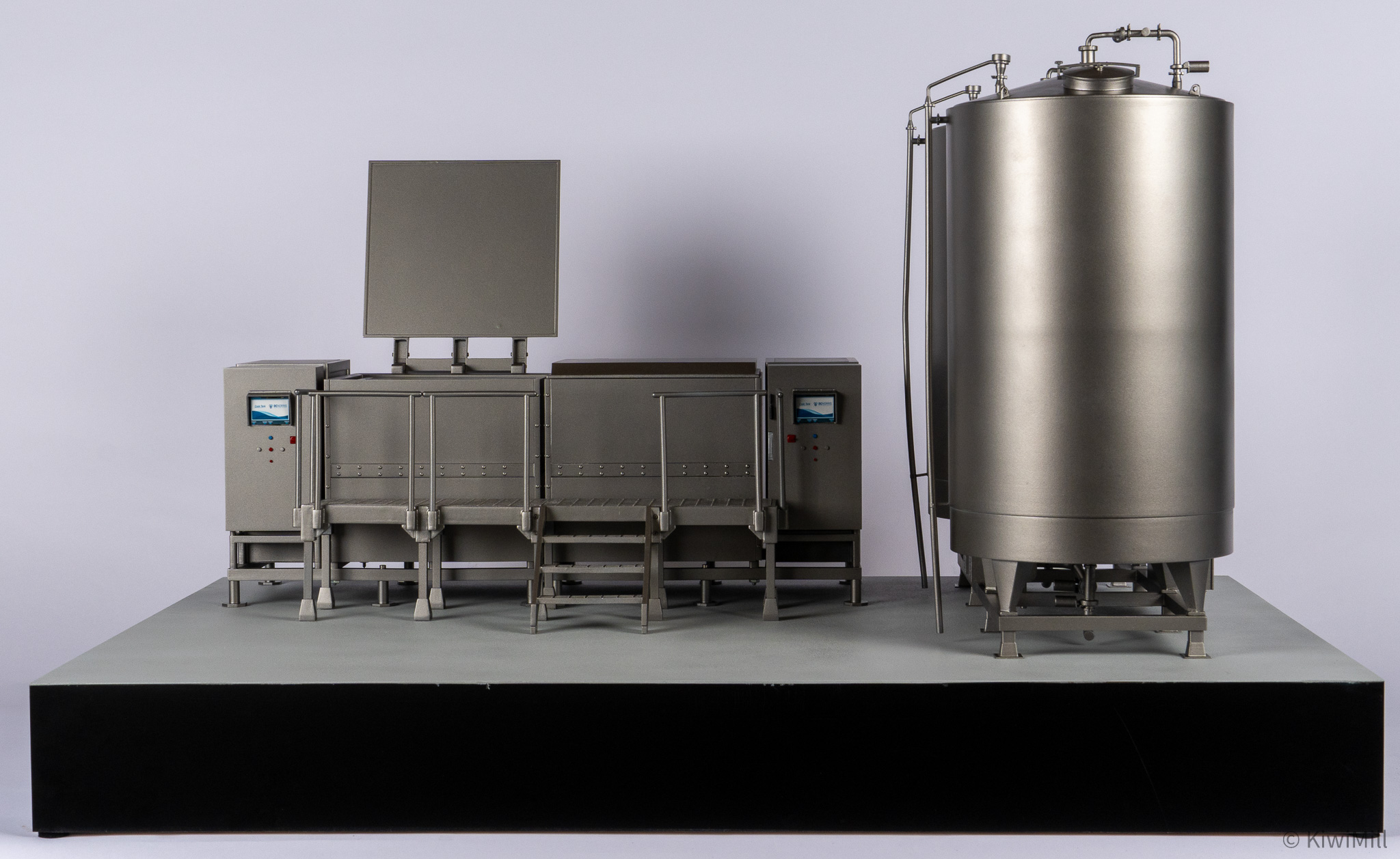

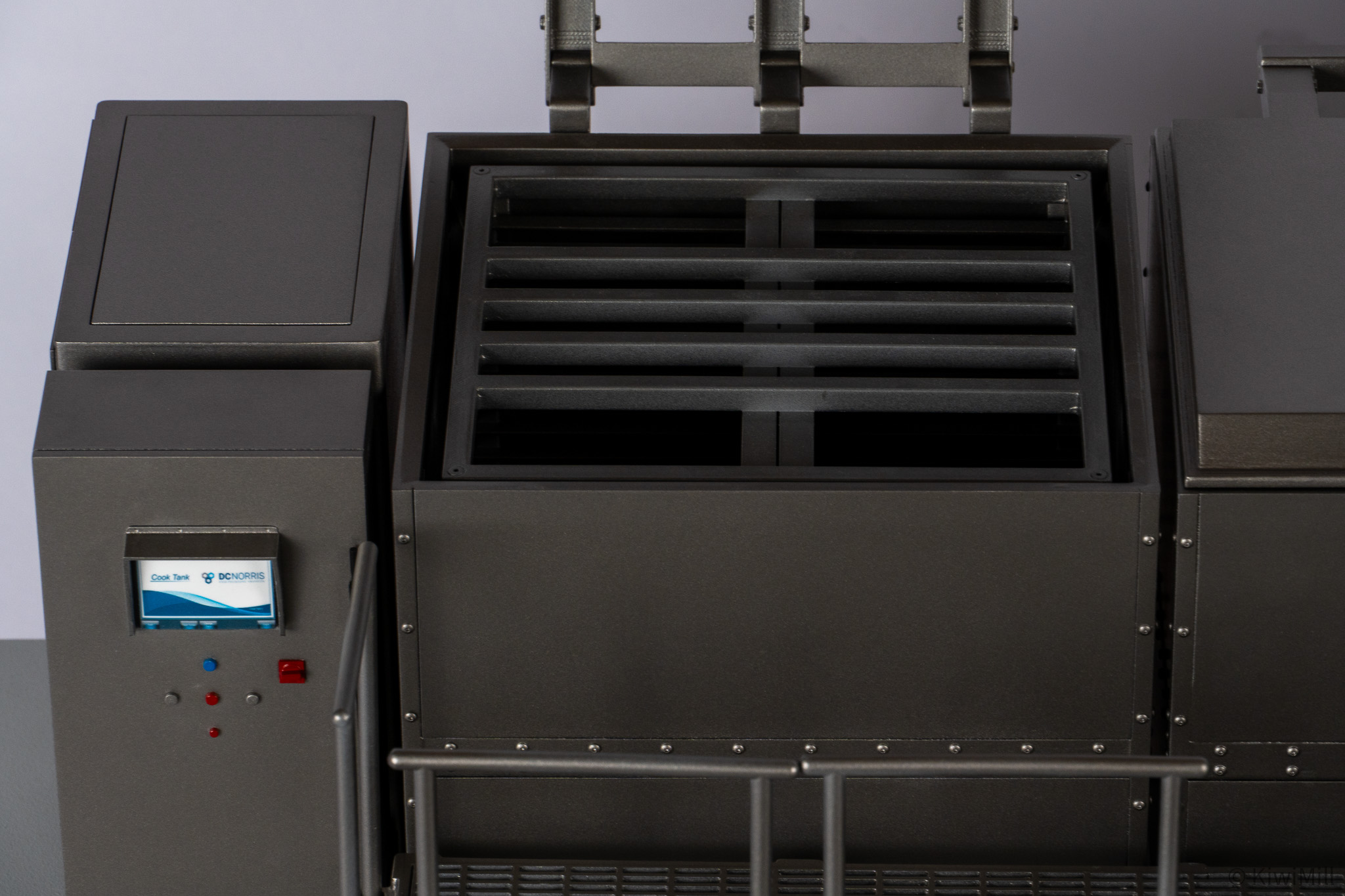

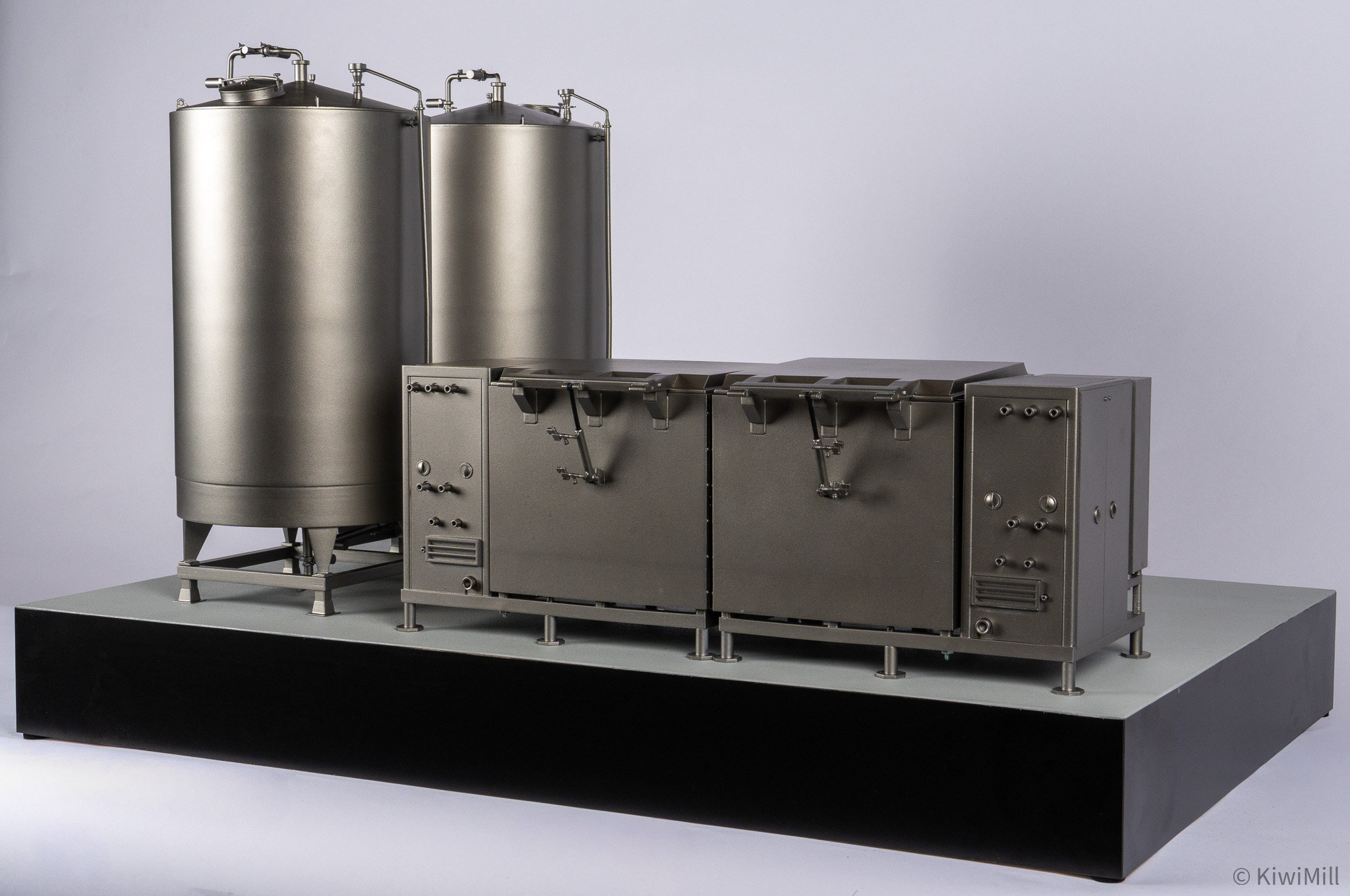

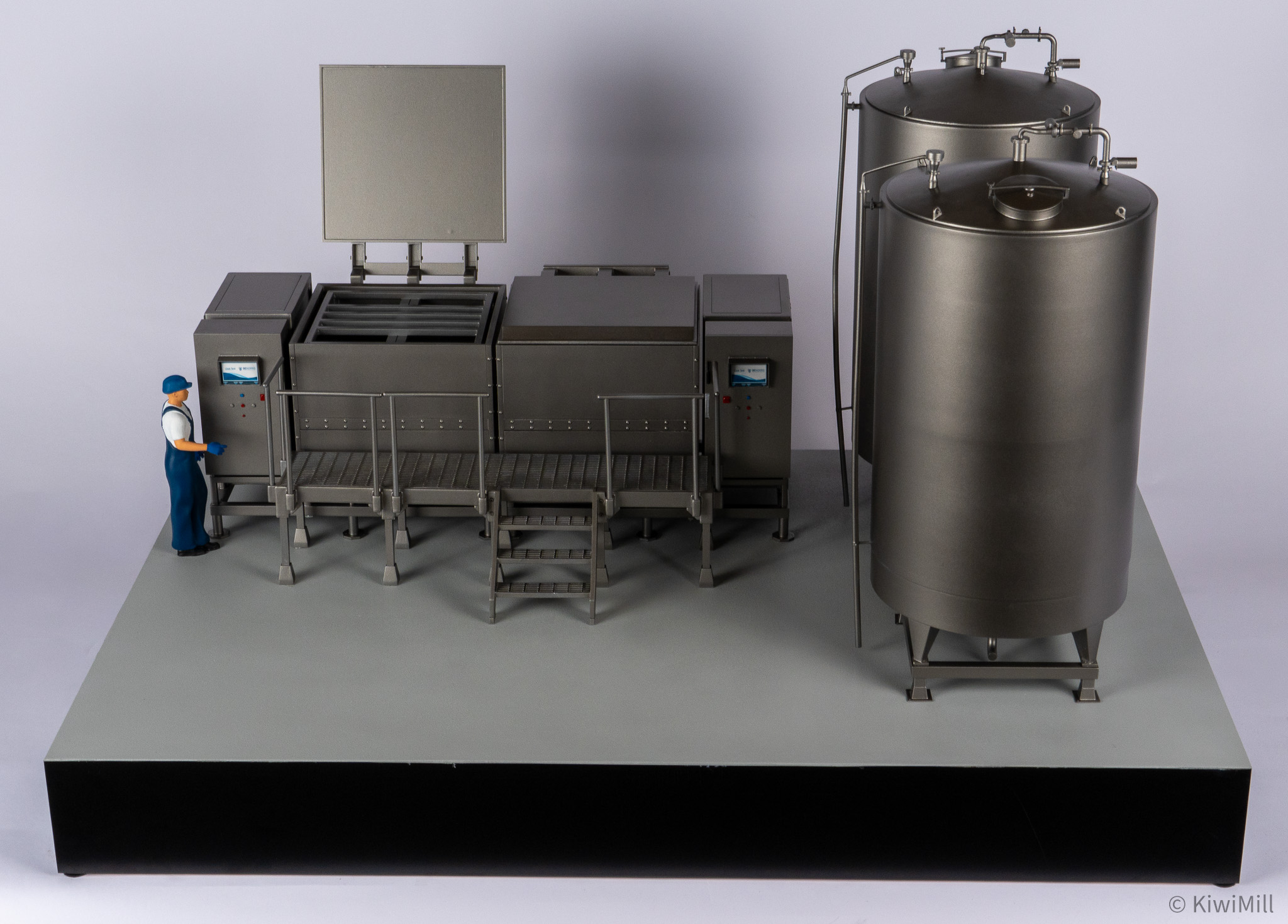

Step closer and the detail starts to add up. Each tank has a conical bottom, a top manway, valve fittings and piping running down the sides. An operator platform with grated decking, slim handrails and a short stair runs along the front of the cook tank. Control cabinets at either end carry small touchscreen displays and red and blue push buttons, and rows of fastener detail line the tank walls.

Then come the parts visitors can handle:
