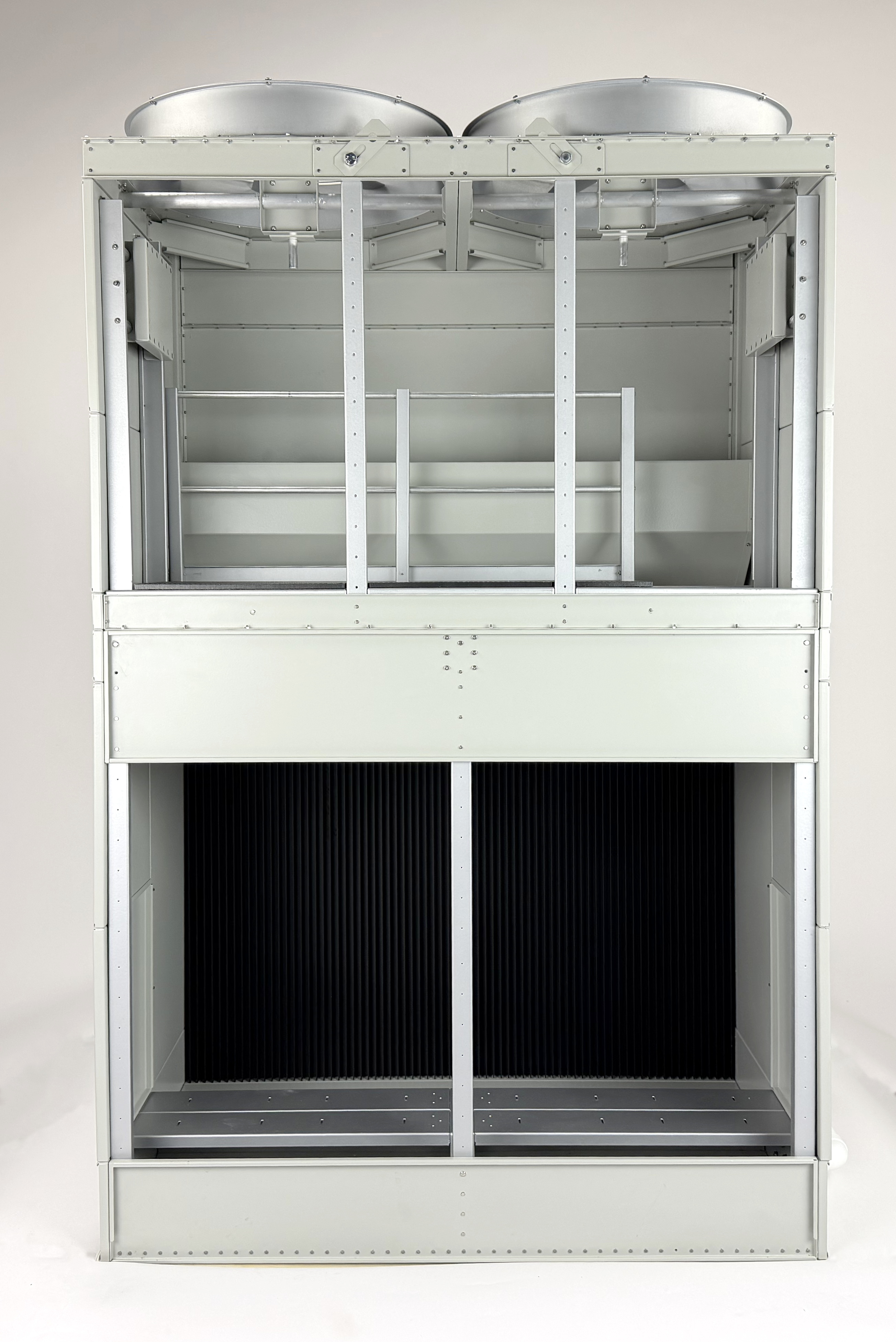

Cooling tower cutaway model seen head-on, with open upper coil section and black fill media in the lower bay

Cooling tower model from the front, looking down on two guarded fans, louvered top section and open interior

Cooling tower scale model at an angle from above, showing twin fan guards, top louvers and open cutaway bays

Upper cutaway bay of the cooling tower model, close-up of black grating, handrail and internal support posts

Angled close-up inside the upper bay, with grating floor, railings and fan deck mounting brackets overhead

Lower bay of the cooling tower model, straight-on view of black fill media behind a center post and metal trays

Lower bay seen from an angle, with fill media, basin trays and white drain piping on the right side of the model

Close-up of the fan deck on the cooling tower model, showing wire fan guard, blades and louvered air inlet behind

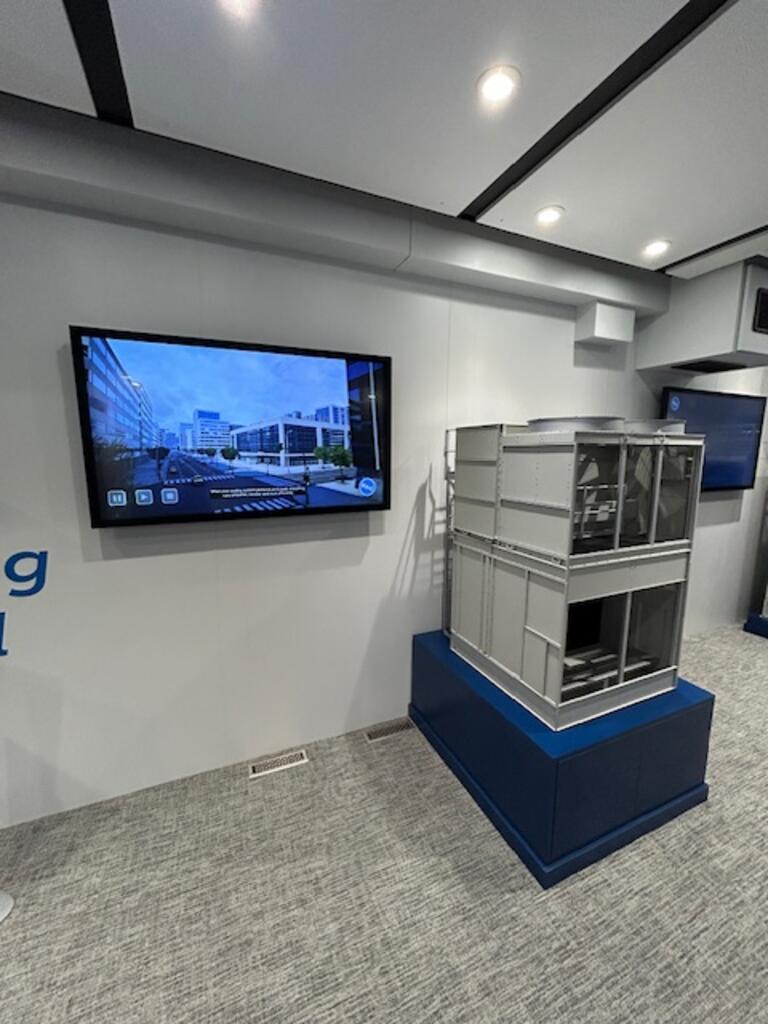

Cooling tower model on a blue display base inside a semi-trailer exhibit, next to a wall-mounted video screen

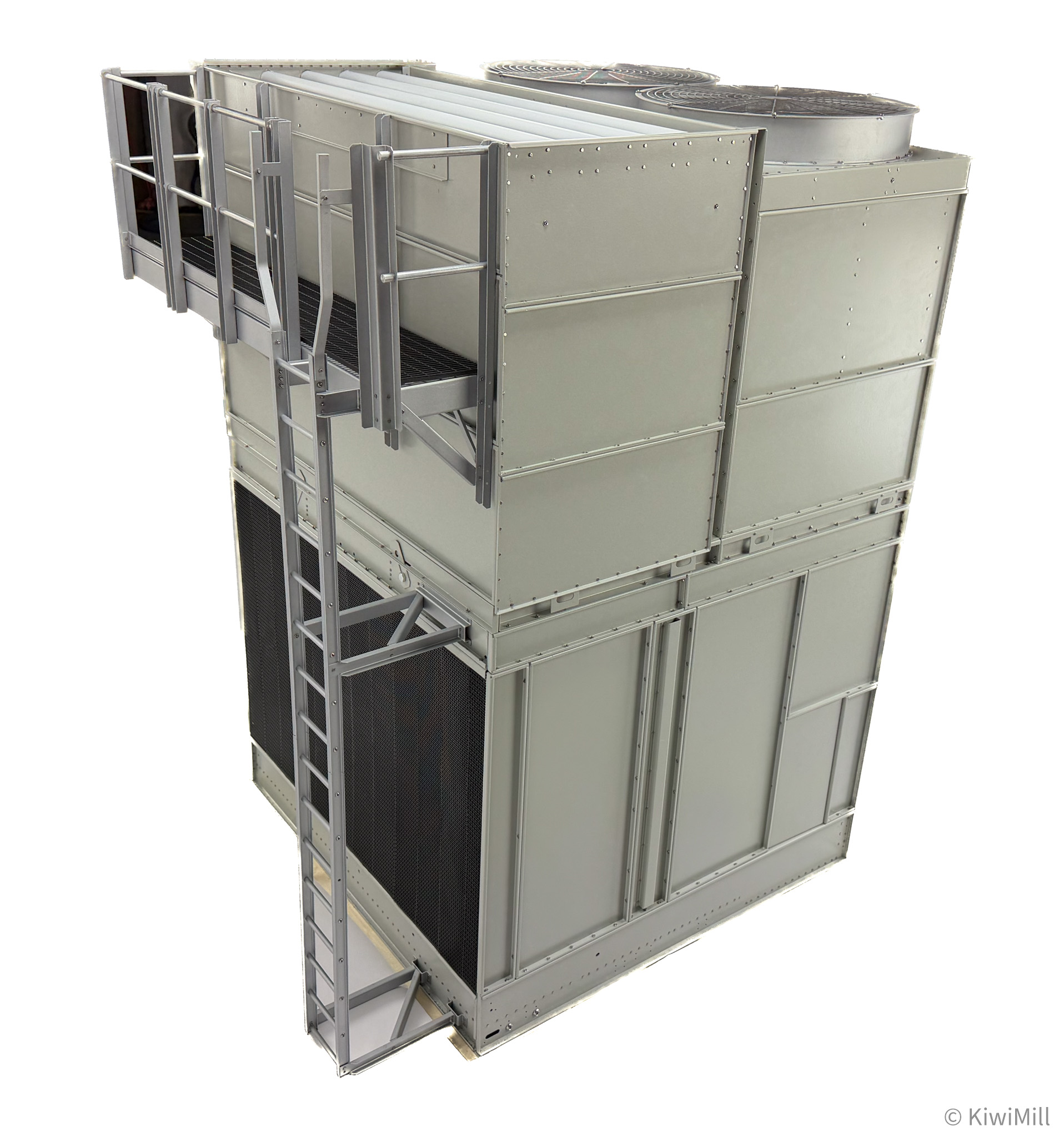

Closed side of the FXV cooling tower model, with access ladder, railed platform walkway and paneled housing

Portfolio Industrial Models

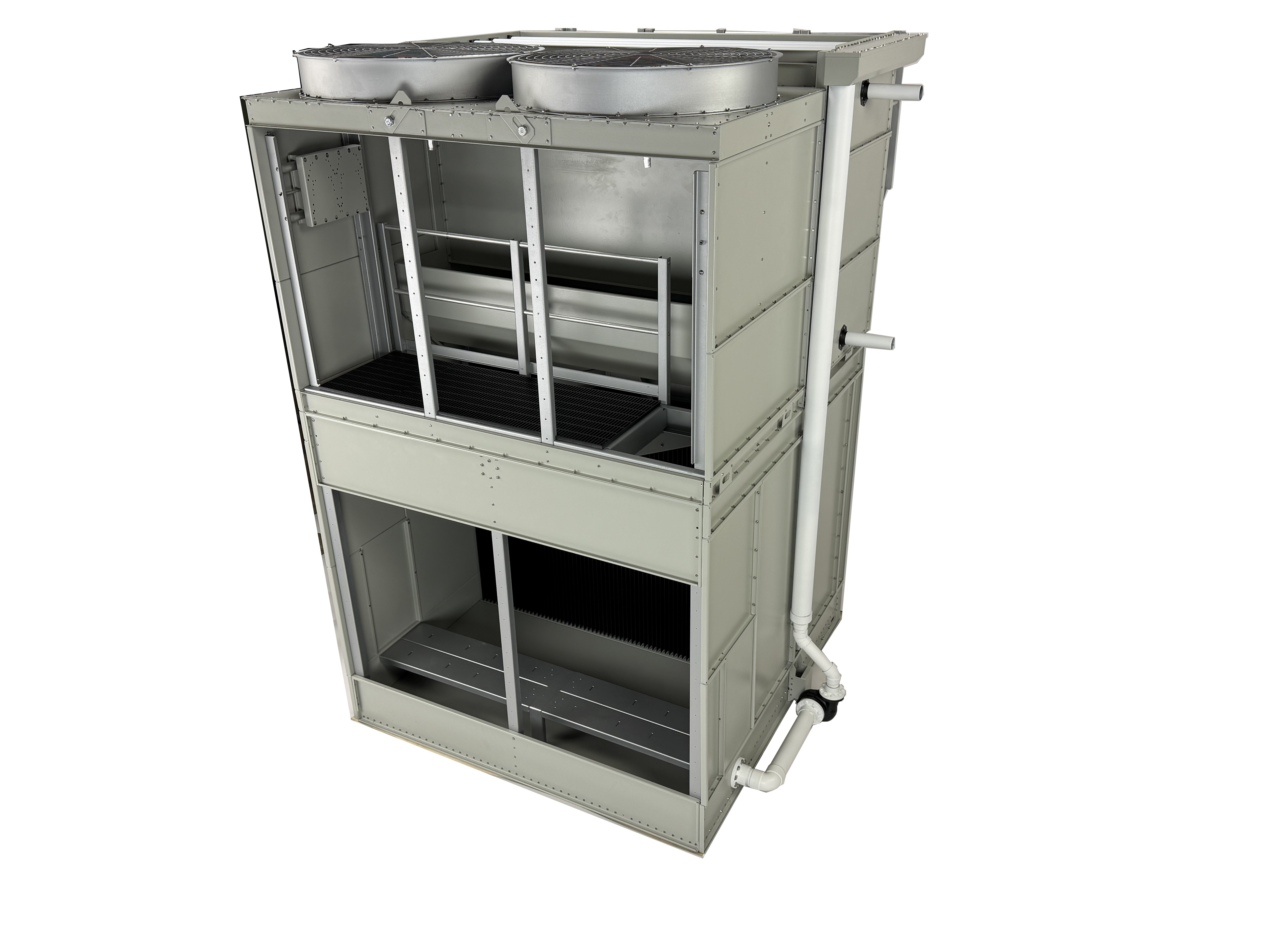

FXV Closed Circuit Cooling Tower Model

33"W x 35"W x 45"H

Industrial Precision in Miniature: The FXV Closed Circuit Cooling Tower Model

Bring your large-scale engineering on the road with a high-fidelity cutaway model designed for impact and durability. This custom-built replica of the FXV Closed Circuit Cooling Tower by Baltimore Aircoil Company captures the technical details of the industry-leading original.

Built to Last, Designed to Impress

To mirror the rugged, industrial nature of the full-sized unit, this 33"W x 35"W x 45"H model is constructed from powder-coated sheet metal. This choice of material doesn't just provide a realistic metallic finish—it ensures the model can withstand the rigors of travel and frequent interaction.

Authentic Materials: The use of real metal provides a weight and texture that plastic models simply can't match.

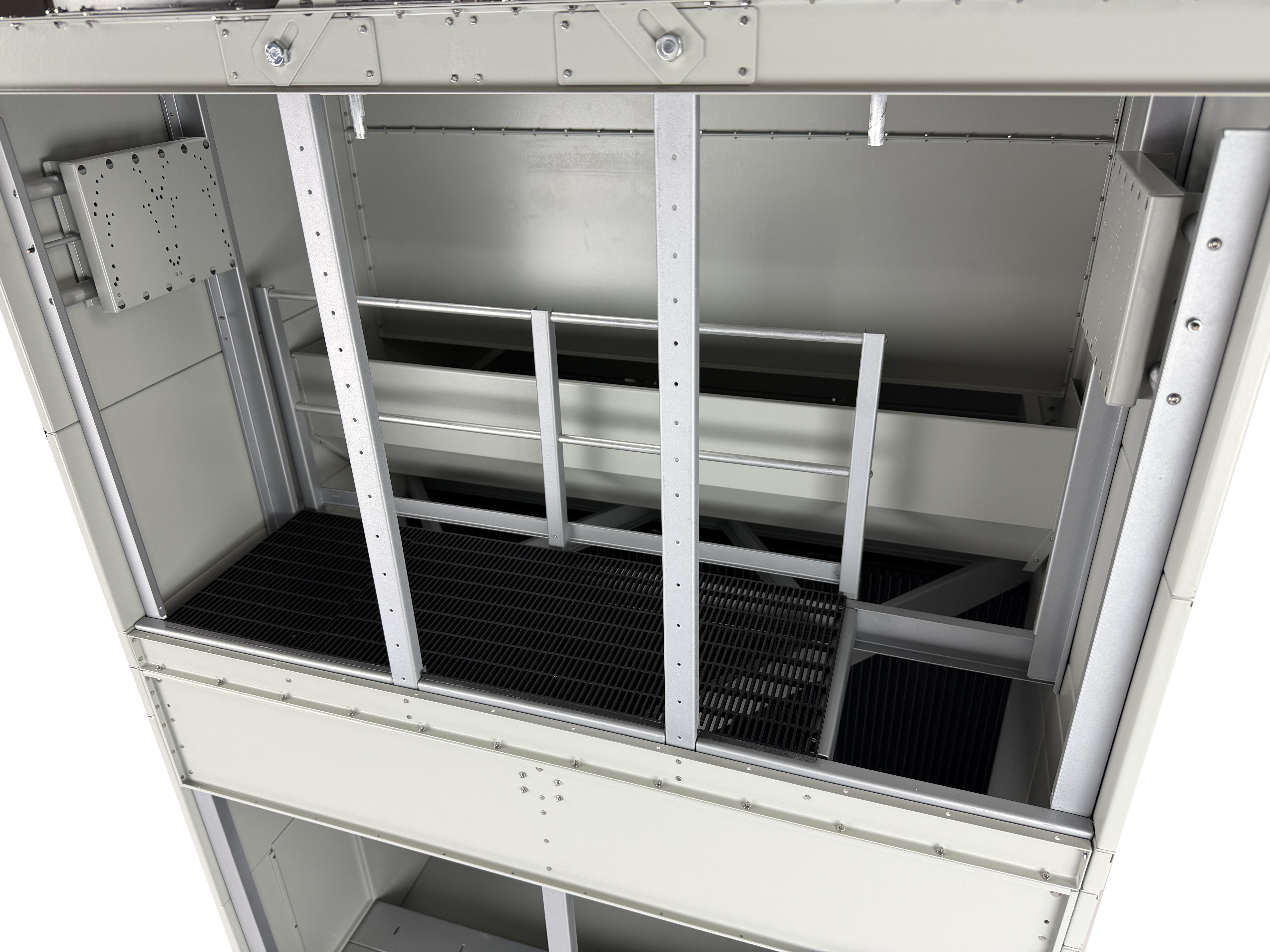

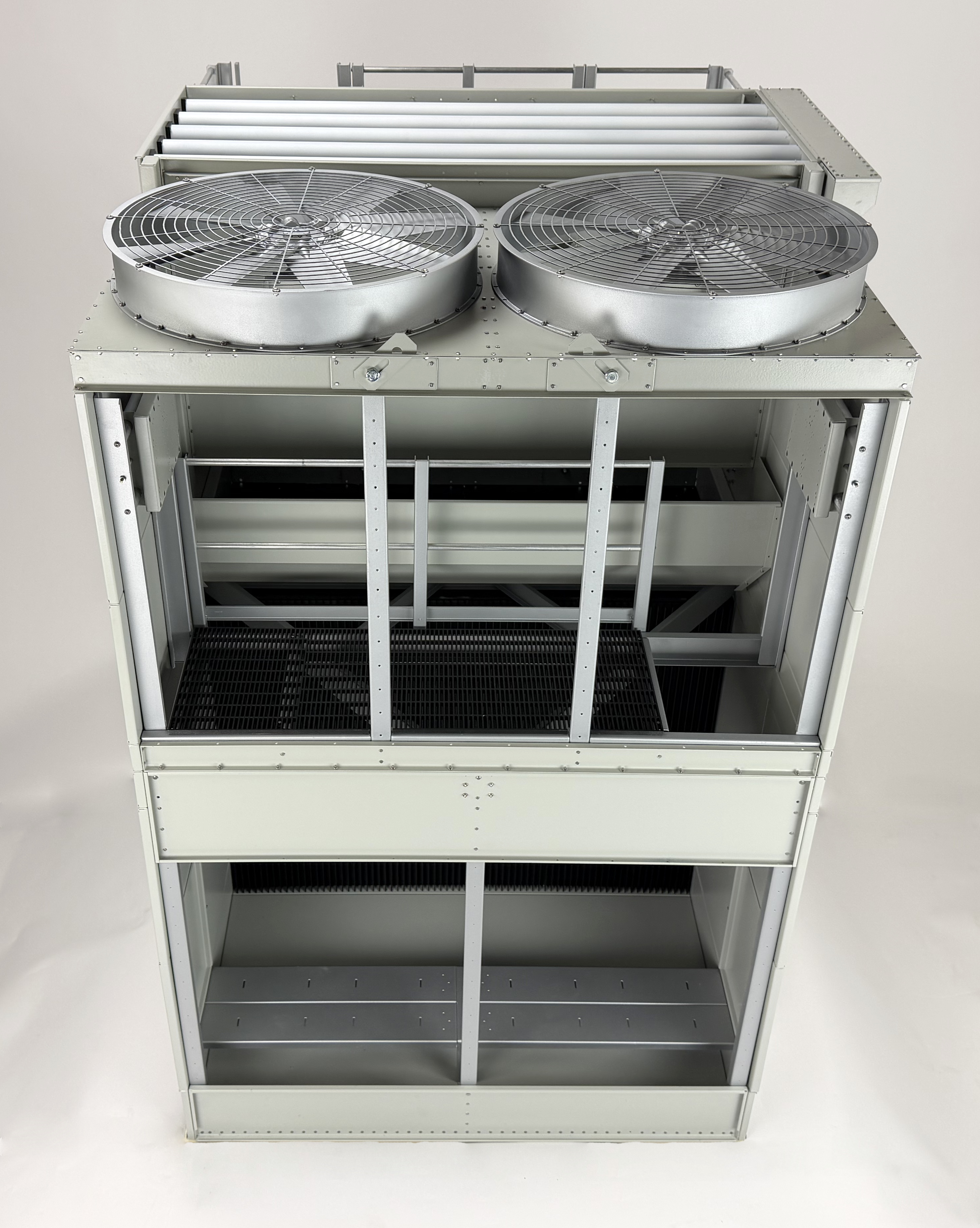

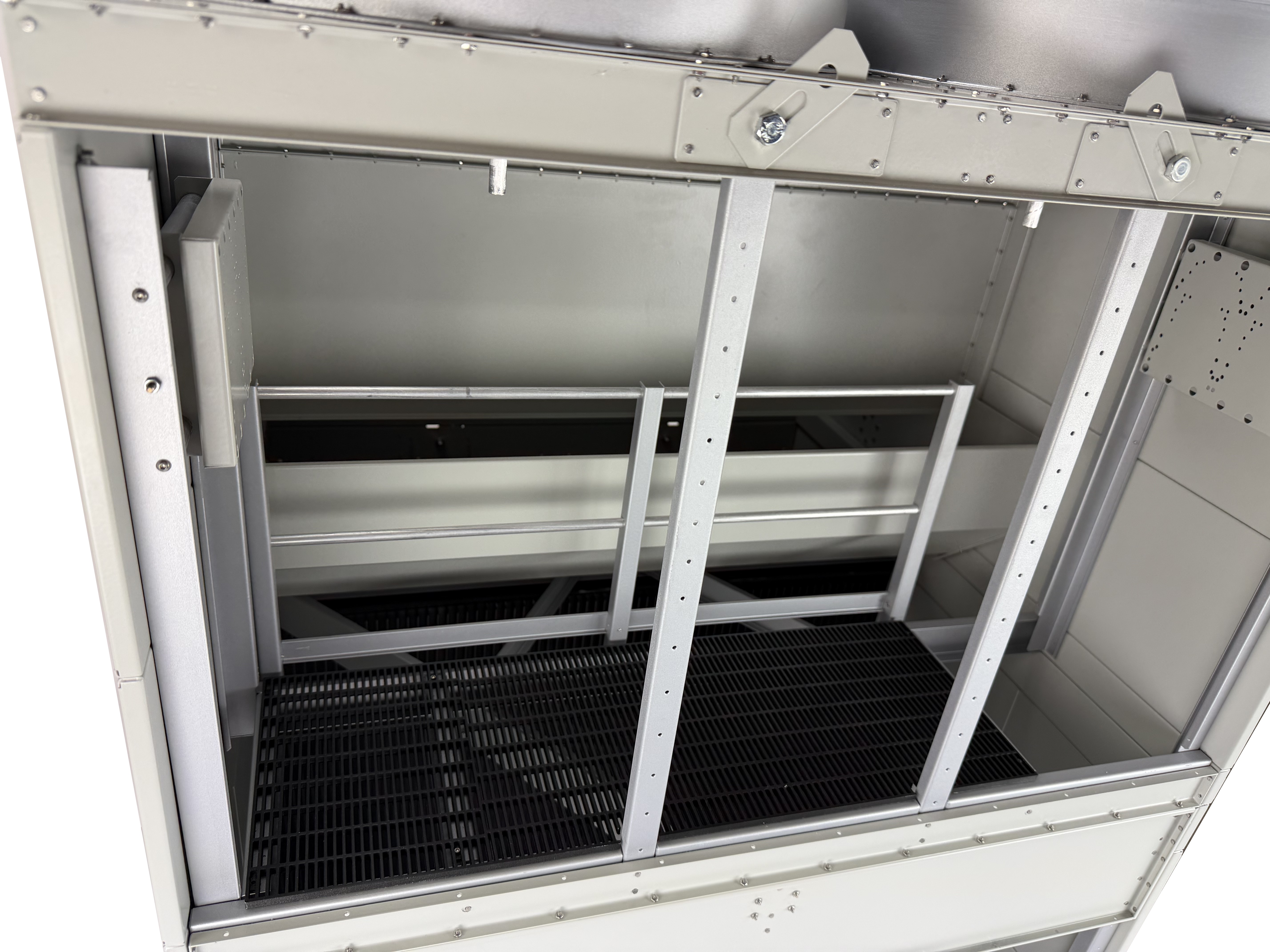

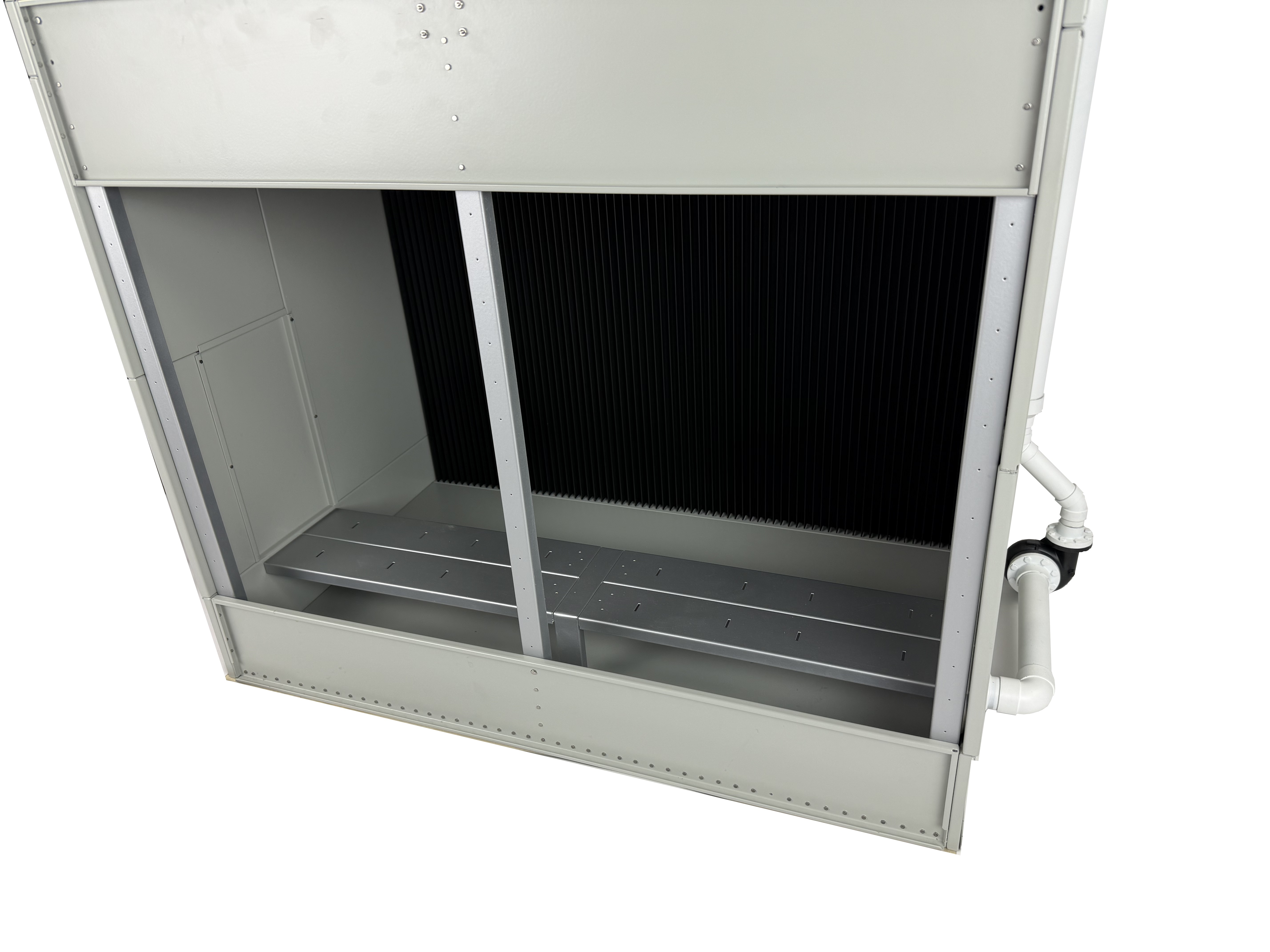

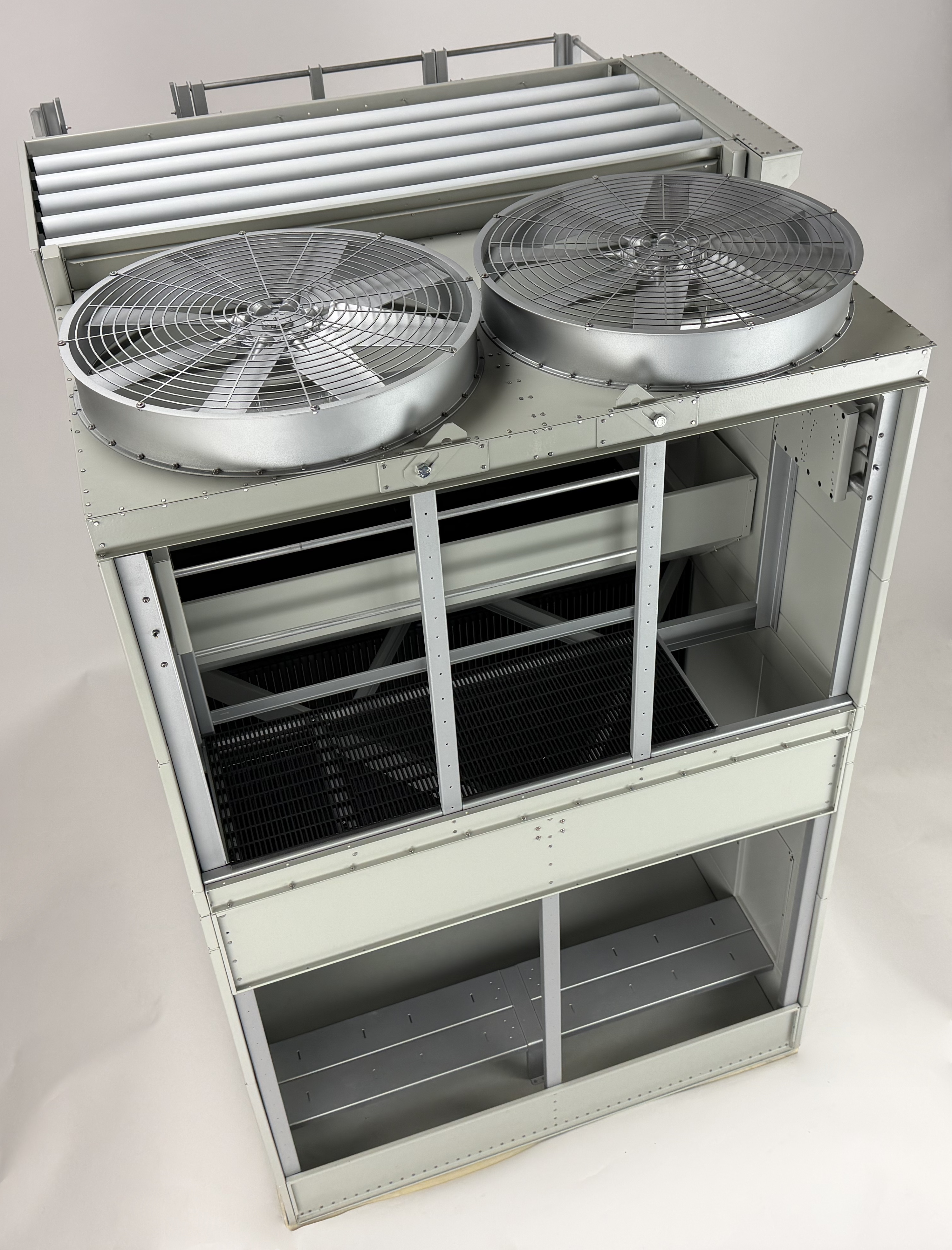

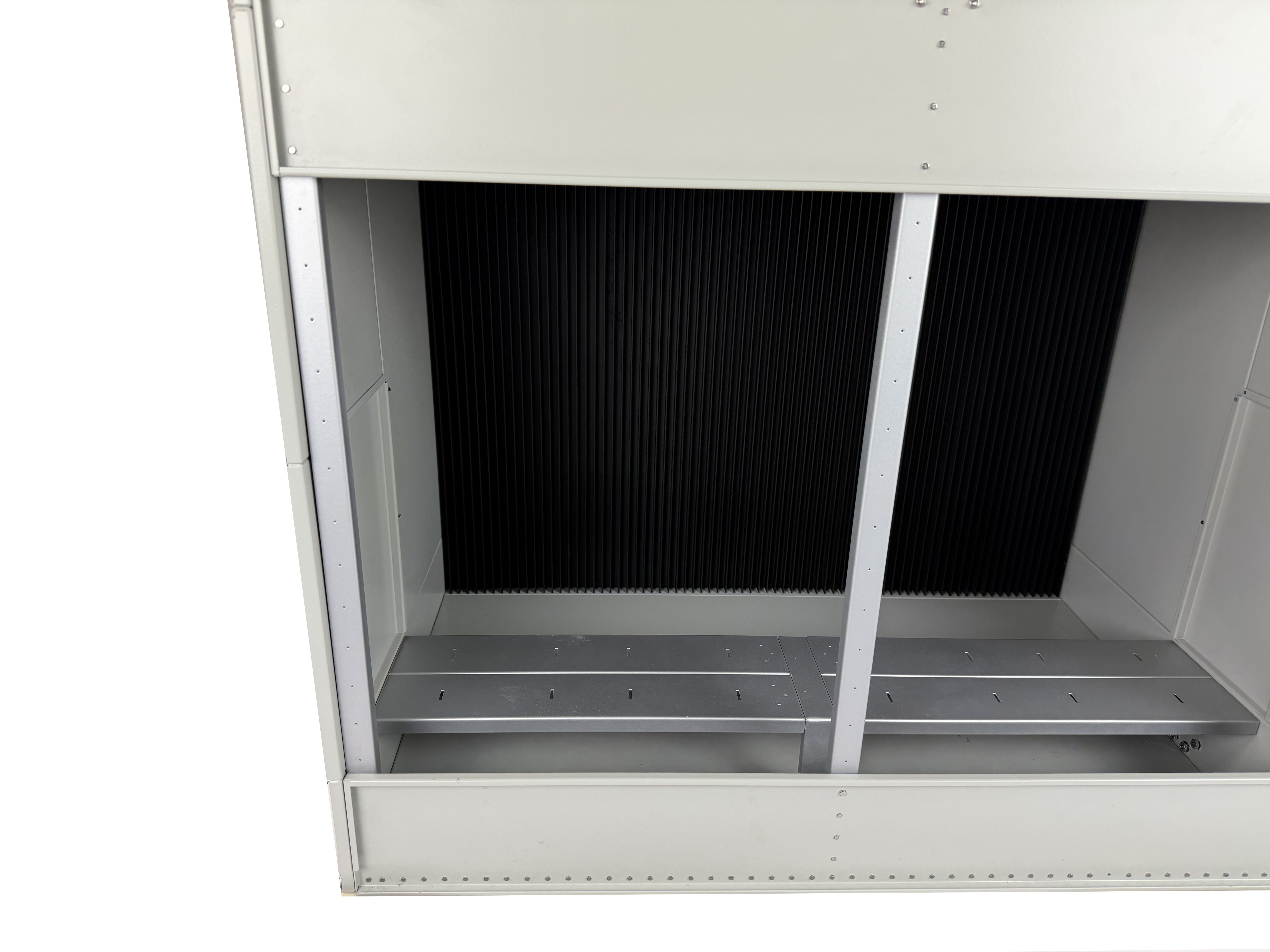

Cutaway Detail: The open-face design allows viewers to inspect the internal configuration, including the coil sections and spray systems, making it an invaluable tool for mechanical demonstrations.
Road-Ready Durability: Specifically engineered for a 2-year nationwide road show, this model is permanently mounted inside a semi-trailer to serve as a traveling centerpiece for our customer's product line.

Perfect for Trade Shows & Education

Whether it's mounted in a mobile showroom or displayed in a corporate lobby, this model bridges the gap between complex engineering and client understanding.
