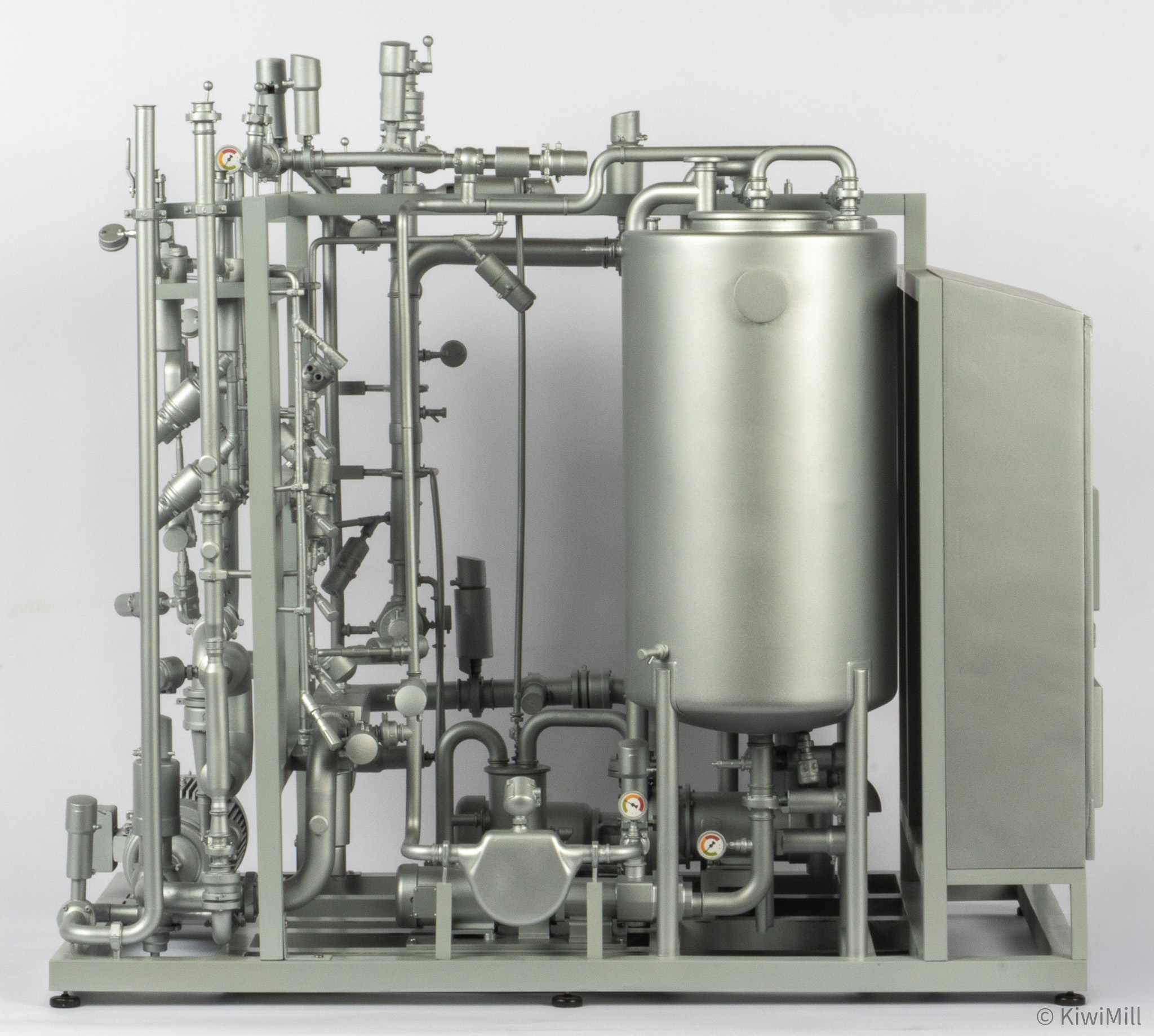

Side elevation of the blending system model with cone-bottom tank on legs, mass flow meter and electrical enclosure

Electrical enclosure end of the BlenZer model from above, two doors, operator display and both tank tops behind

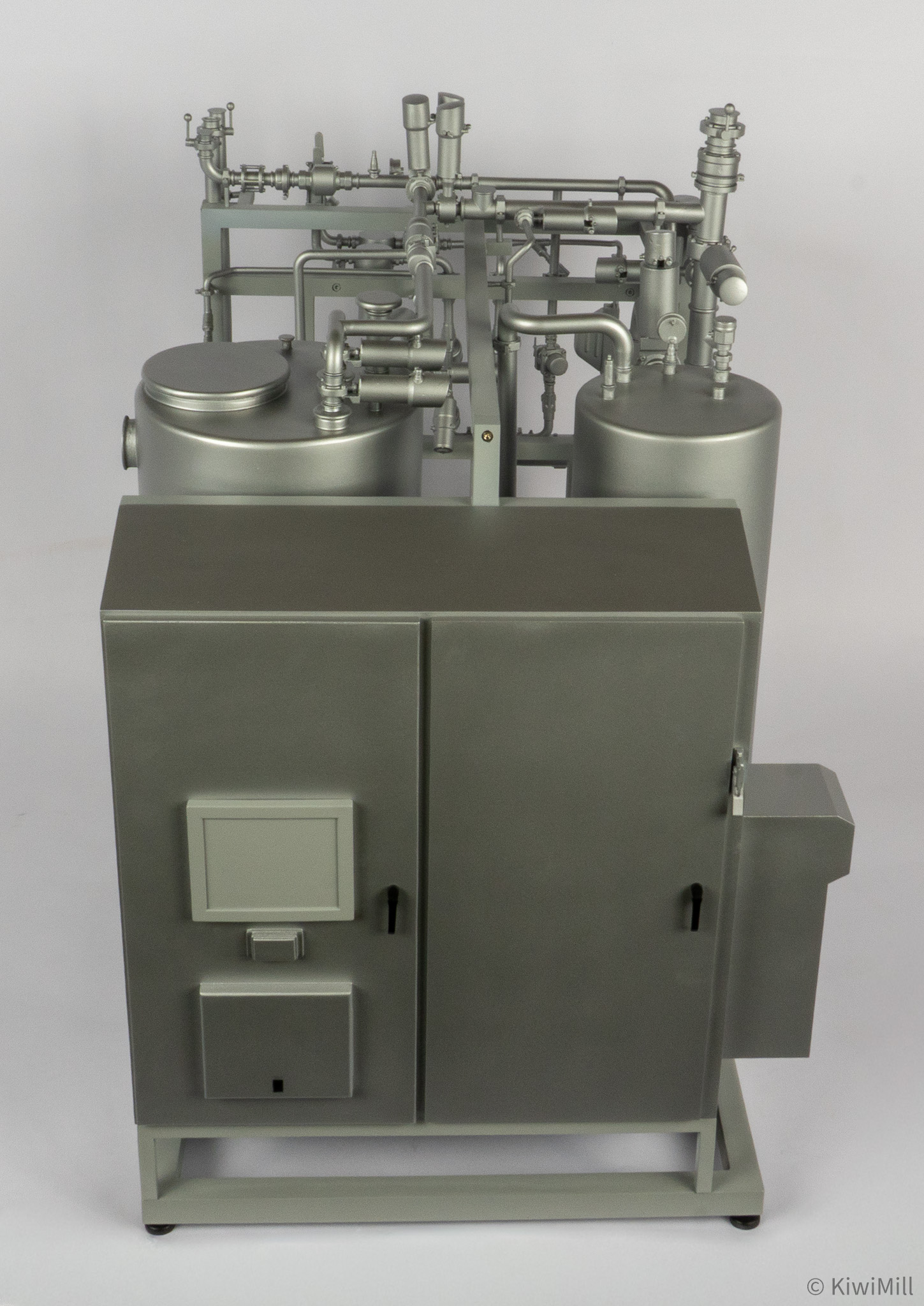

Straight-on view of the enclosure end with two door handles, operator display panel and side-mounted box

High rear corner view of the blending skid model with enclosure, second vertical tank and vented side box

Blending system model rear three-quarter view showing the louvered side box, tall tank, pump and pipe rack

Close-up of piping between the tanks with a colored pressure gauge, sanitary clamp fittings and pump below

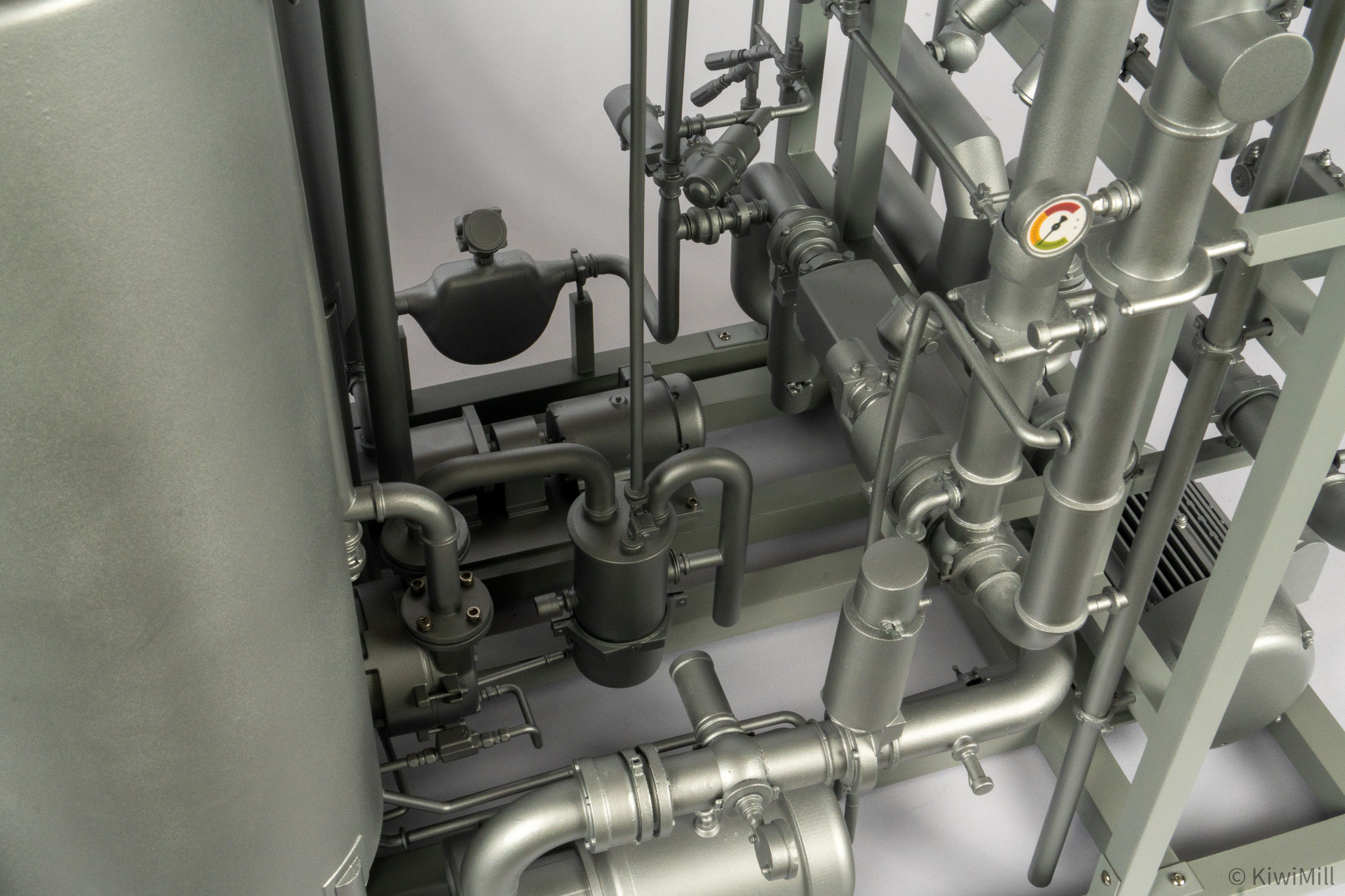

Overhead close-up into the skid showing mass flow meter, pump housing, gauge and clamped pipe bends

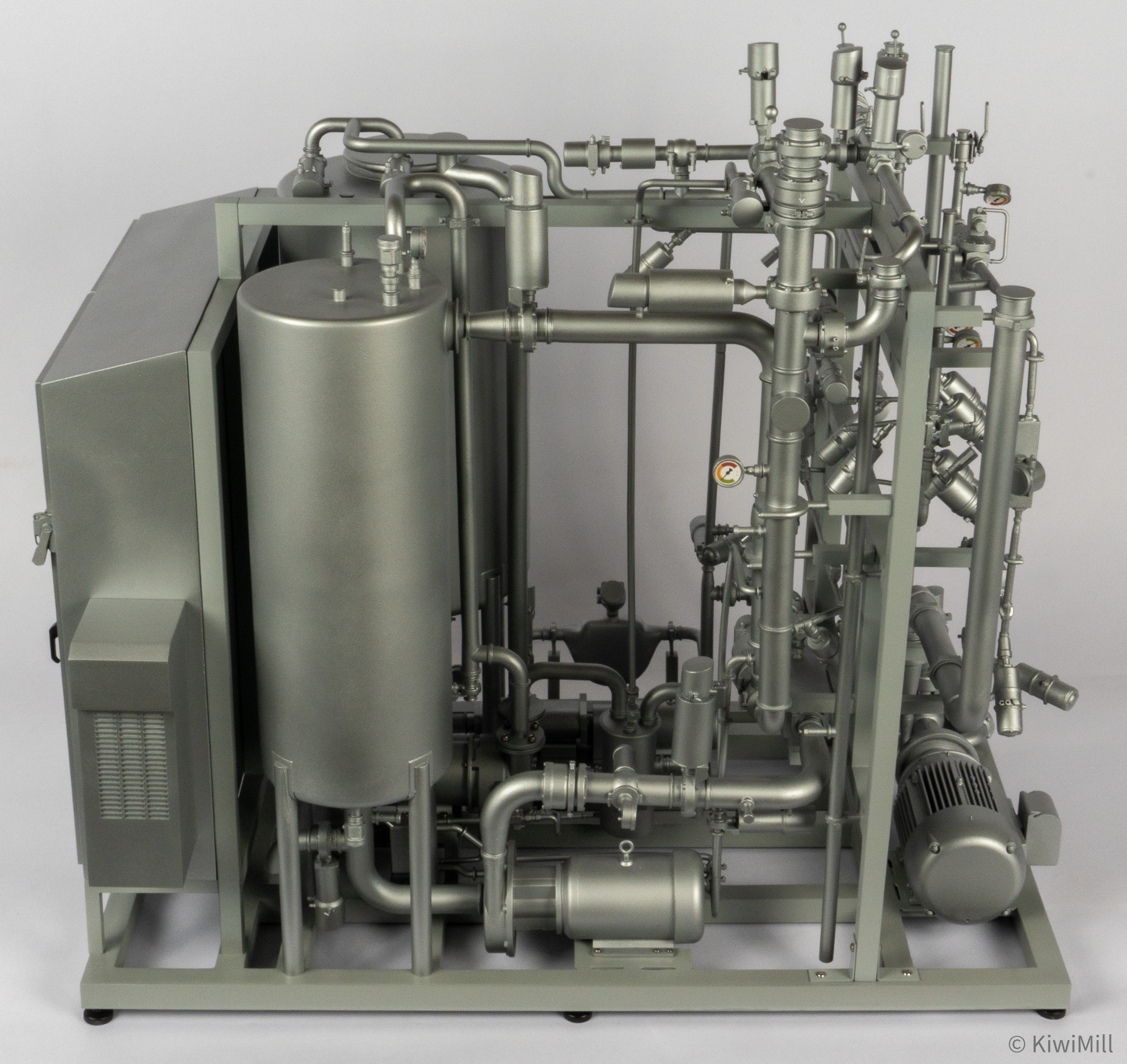

Rear side elevation of the BlenZer model with vented enclosure box, tall tank, pump and finned motor

Straight rear elevation of the blending skid with louvered panel, legged tank and frame of valves and gauges

Elevated corner view of the model's valve end, angled actuator banks, finned motor and gray skid frame

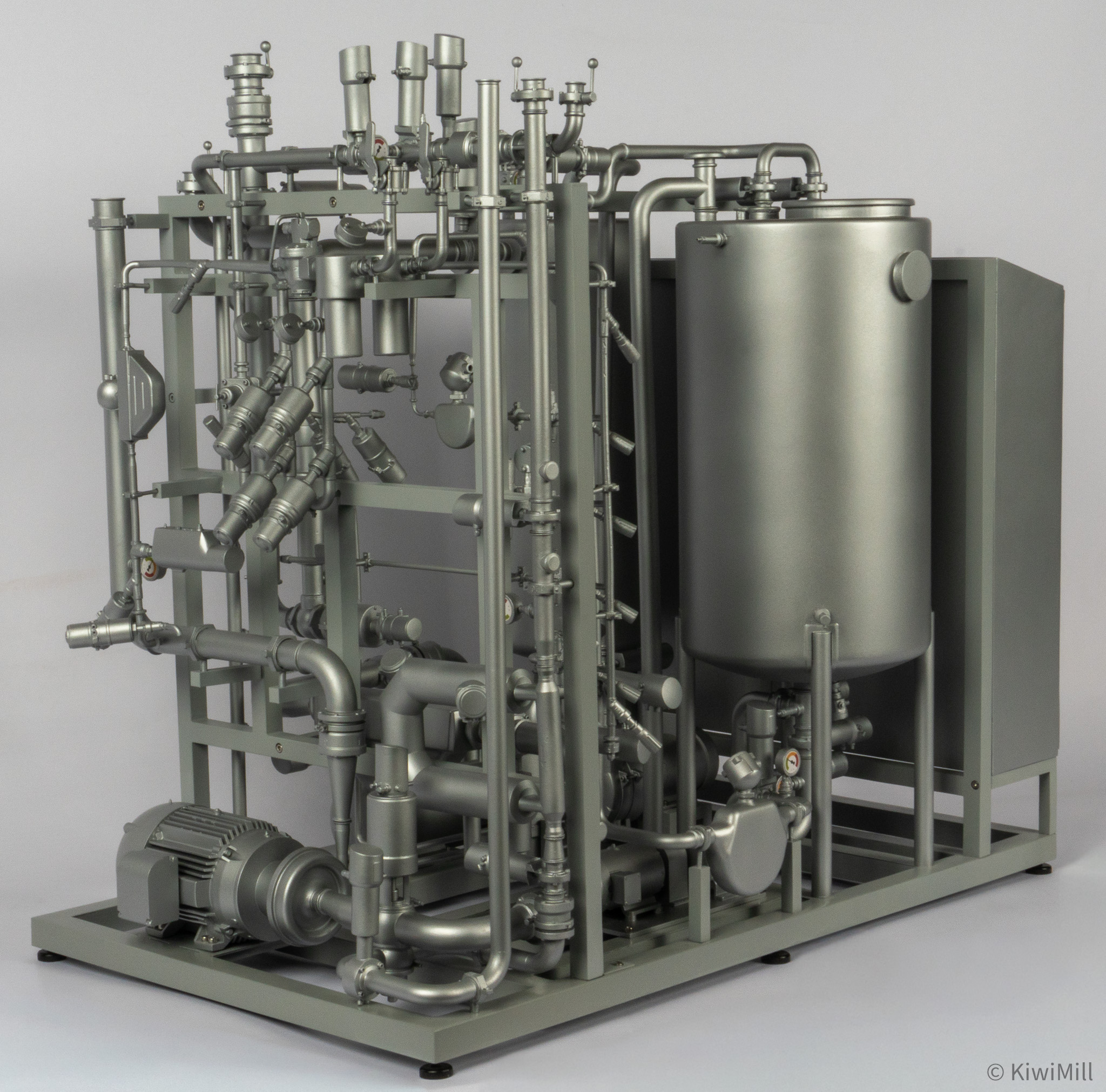

Low corner view of the blending system model showing angled valve actuators, gauges and two pump motors

End view of the skid from above, showing the valve rack, angled actuators, upper manifold and front motor

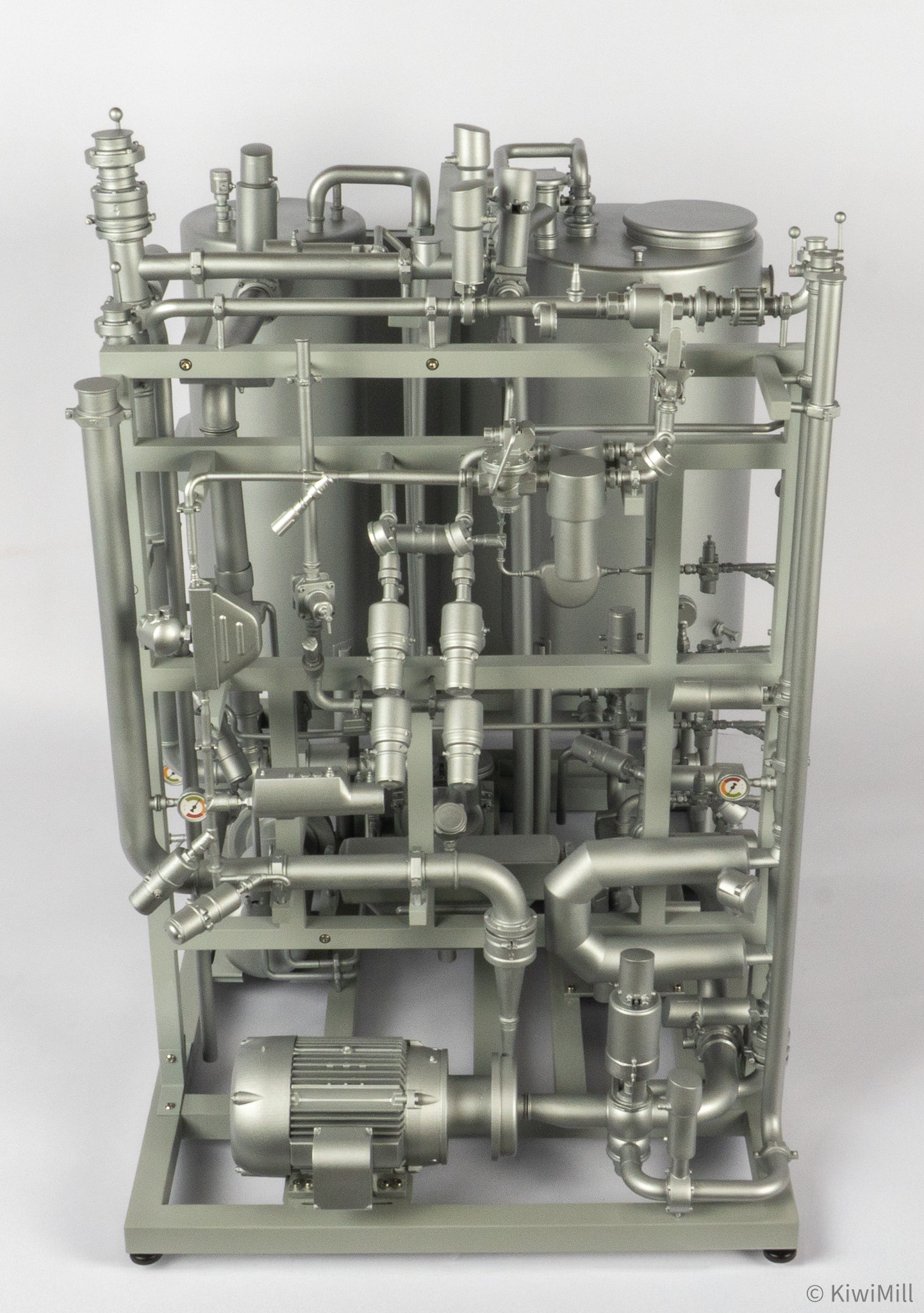

Straight-on end elevation of the valve rack with paired actuators, gauges, pipe bends and finned pump motor

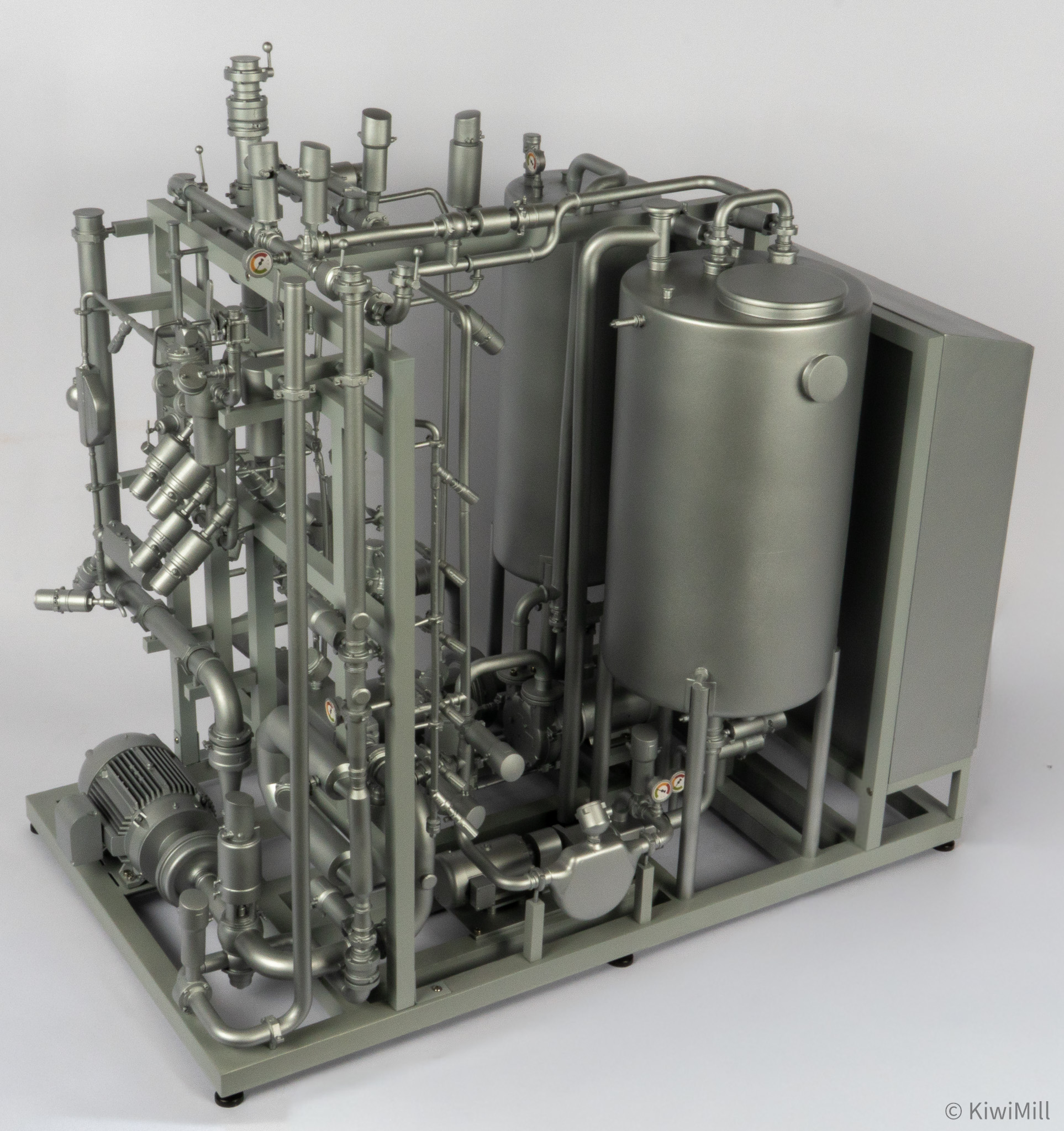

Elevated three-quarter view of the open skid with angled actuator banks, both tanks and enclosure at the far end

Close-up of the lower skid with finned motor and centrifugal pump, mass flow meter and cone-bottom tank legs

BlenZer model in an acrylic case on a Statco-DSI pedestal at a trade show, with three booth staff beside it

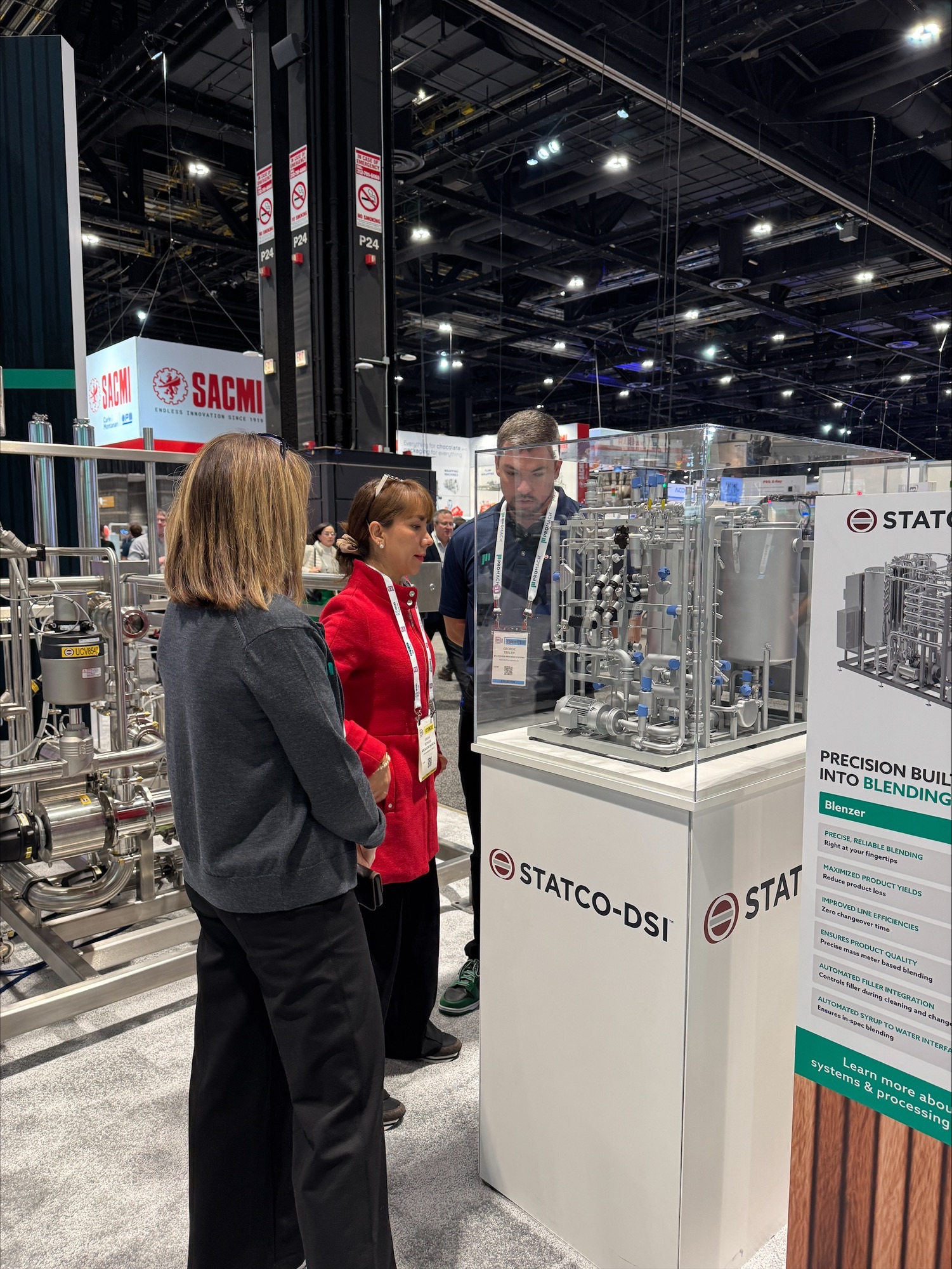

Visitors examining the blending system model under its acrylic cover at the Statco-DSI trade show booth

Statco-DSI display pedestal with the acrylic-covered BlenZer model beside a product sign at a trade show

Portfolio Large Equipment Models

BlenZer Inline Blending System Scale Model – Statco-DSI

Dozens of sanitary clamp fittings join the runs of piping on this KiwiMill scale model of the Statco-DSI BlenZer. The real BlenZer is a continuous inline blending system for beverage production, and this inline blending system scale model shows it as a single open skid with all the plumbing exposed.

BlenZer product information: https://www.statco-dsi.com/products/blenzer-inline-blending-systems/

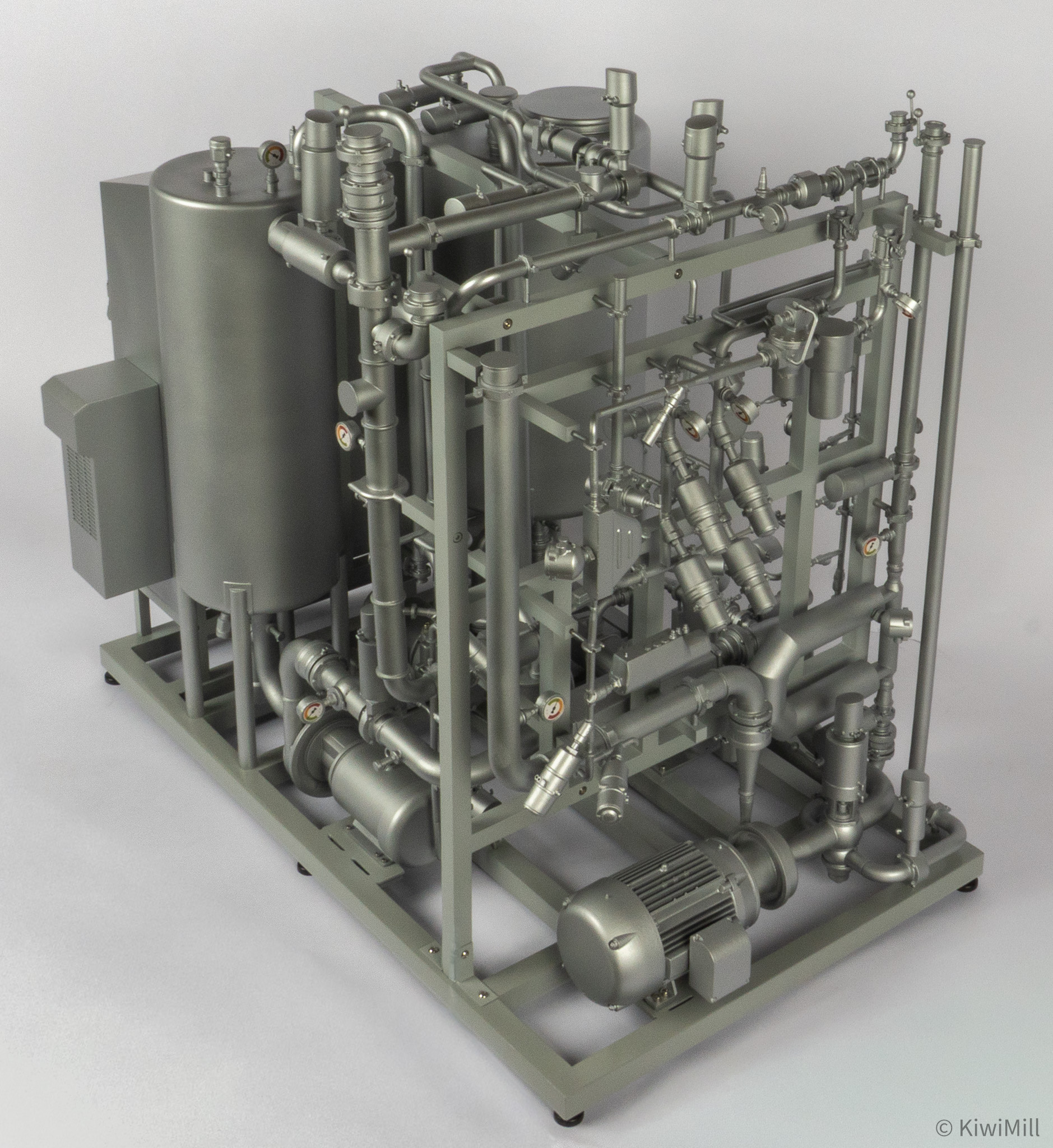

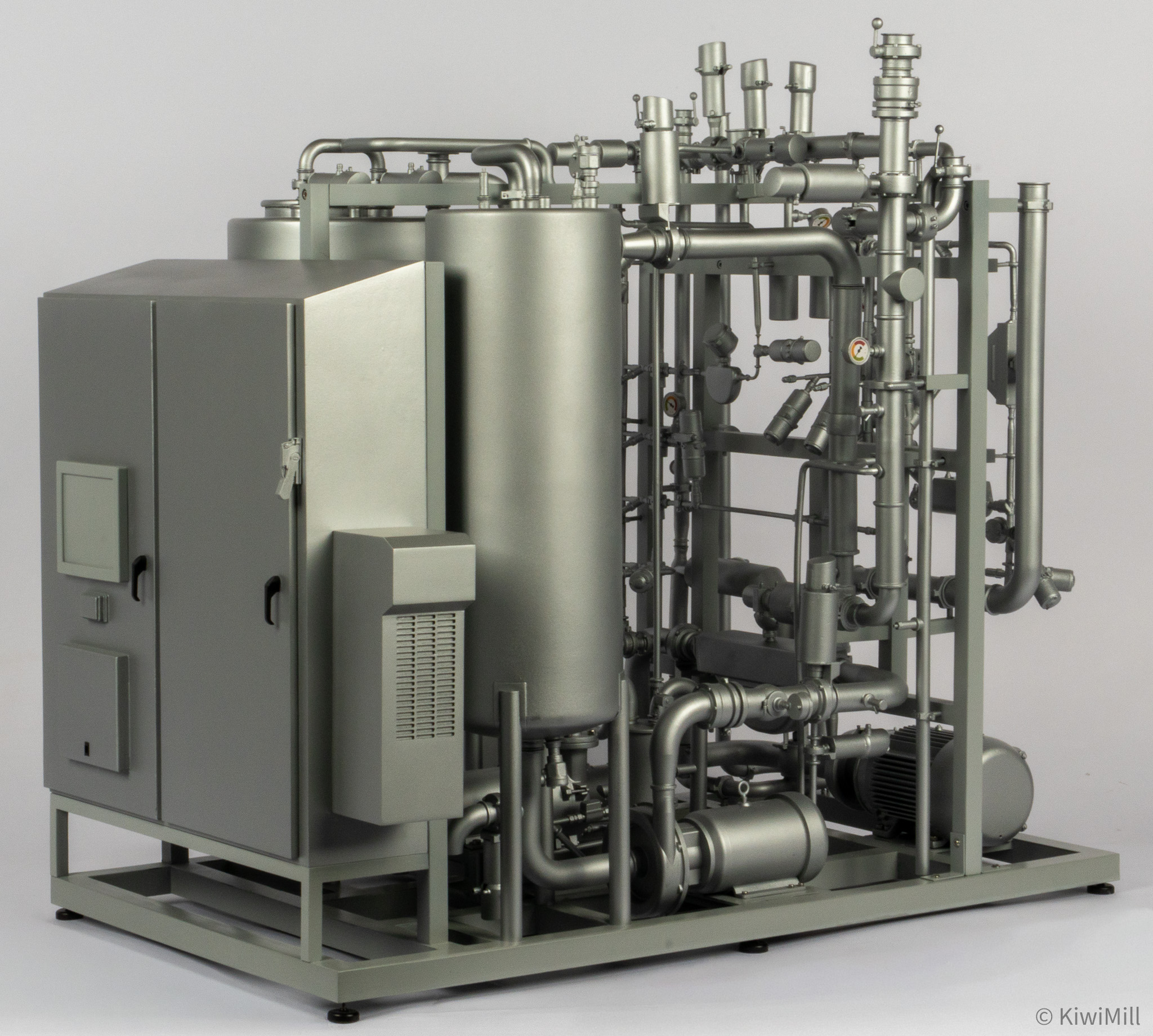

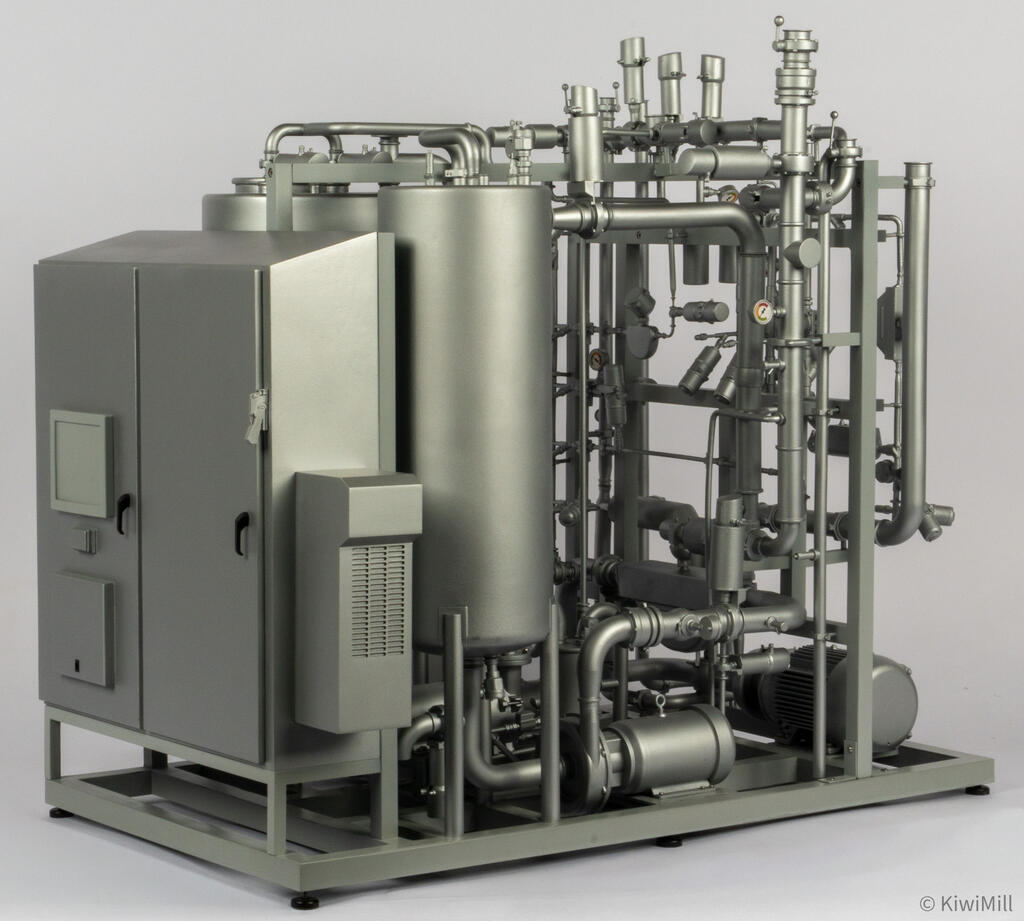

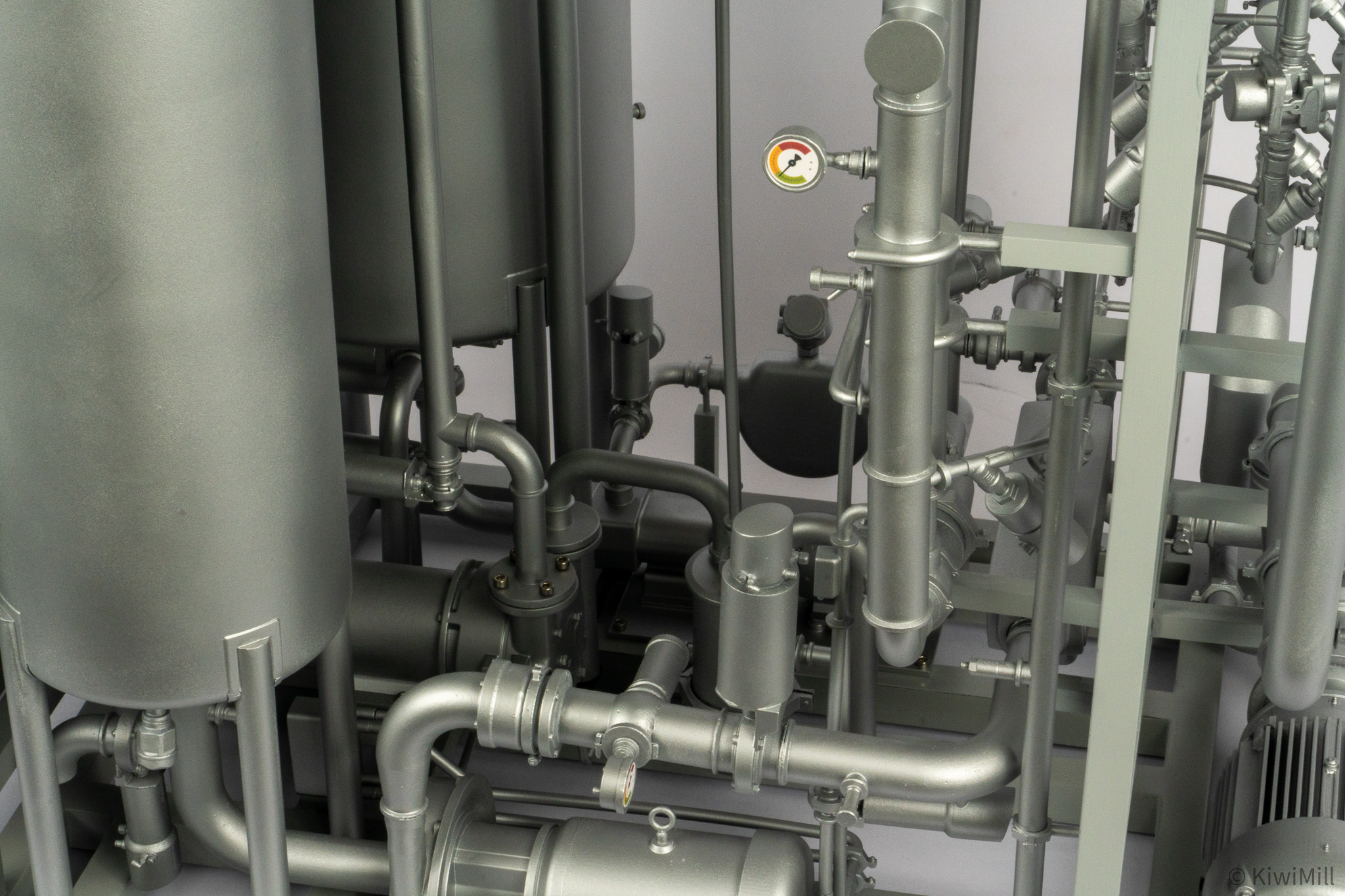

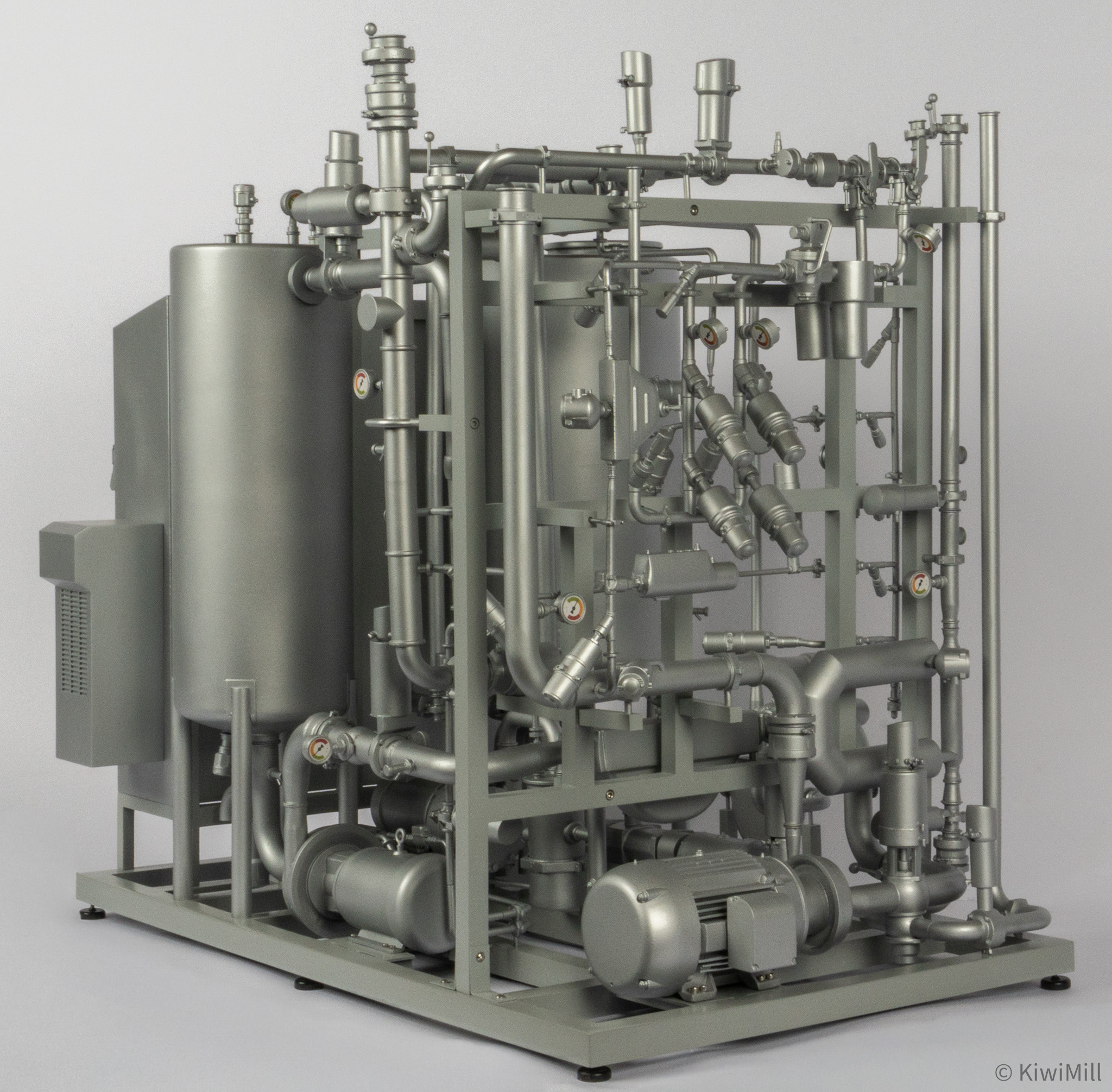

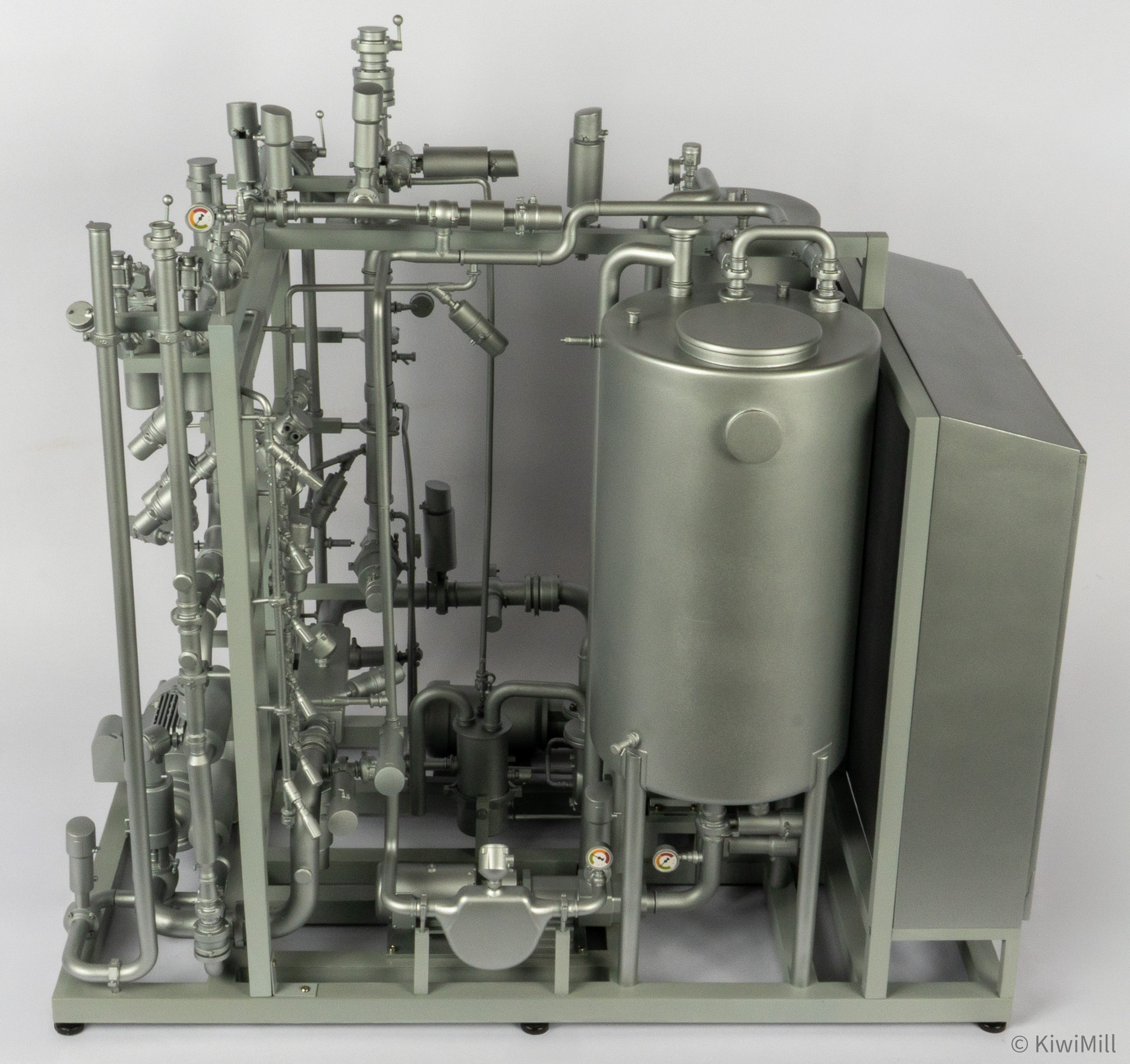

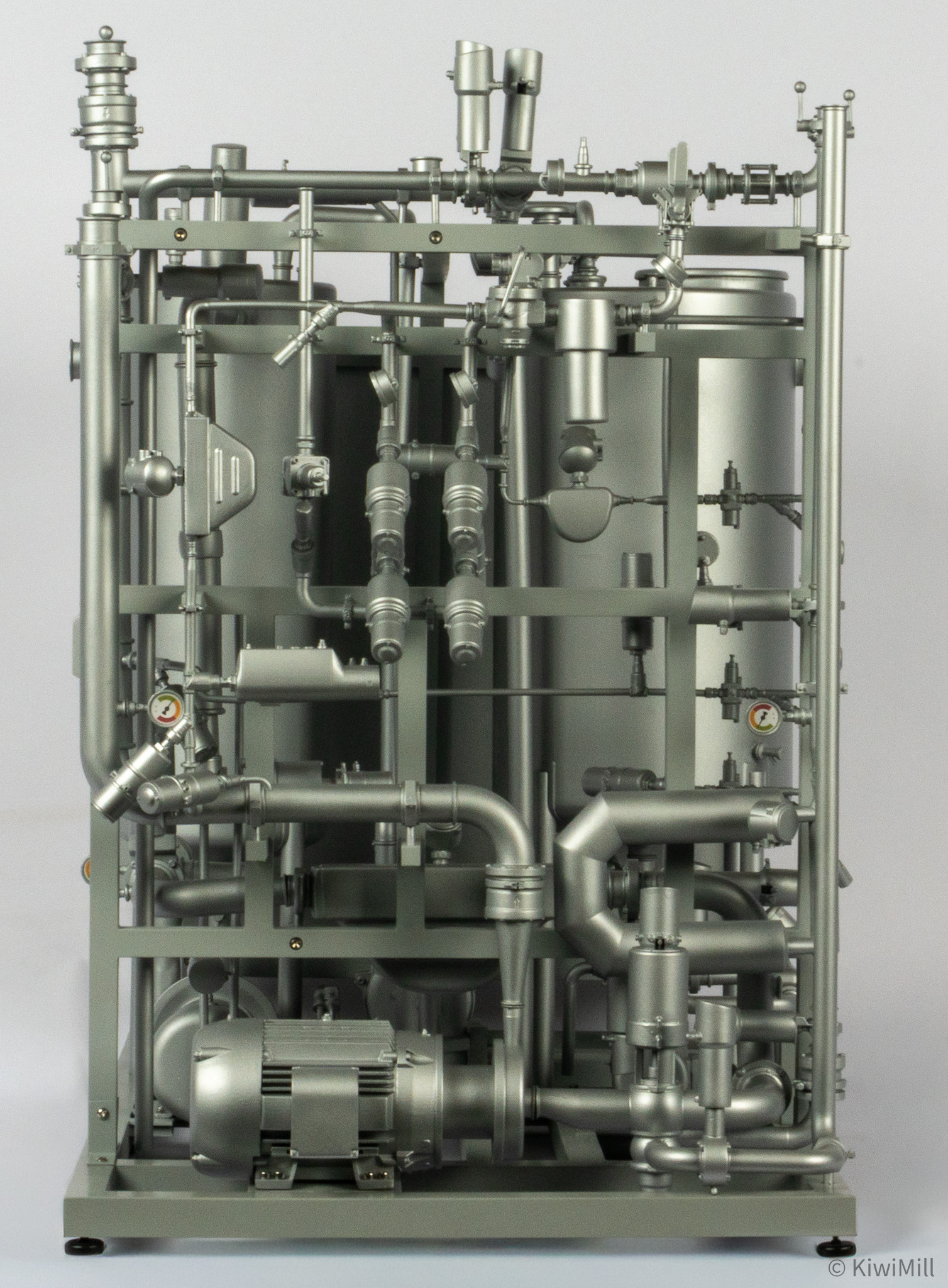

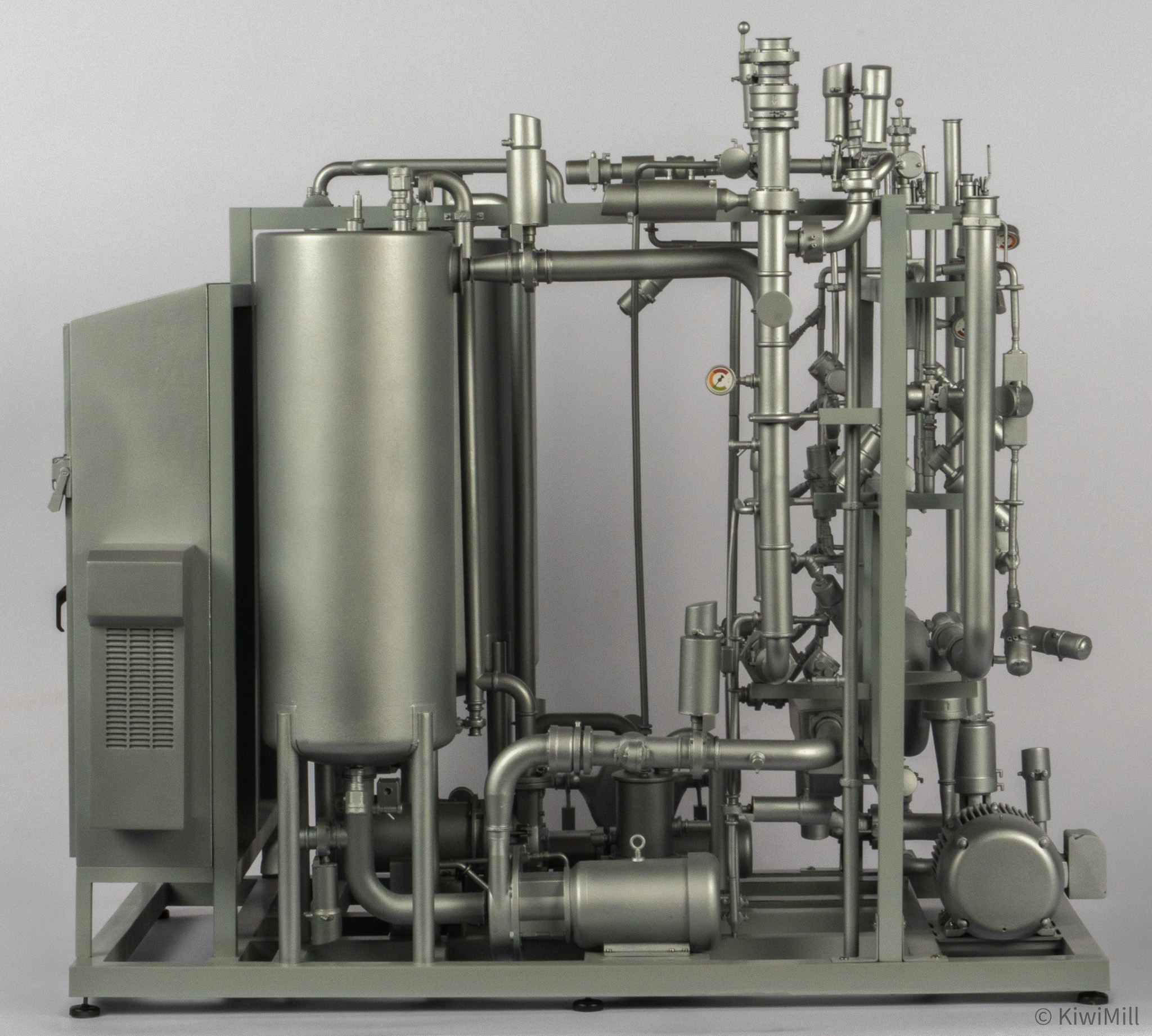

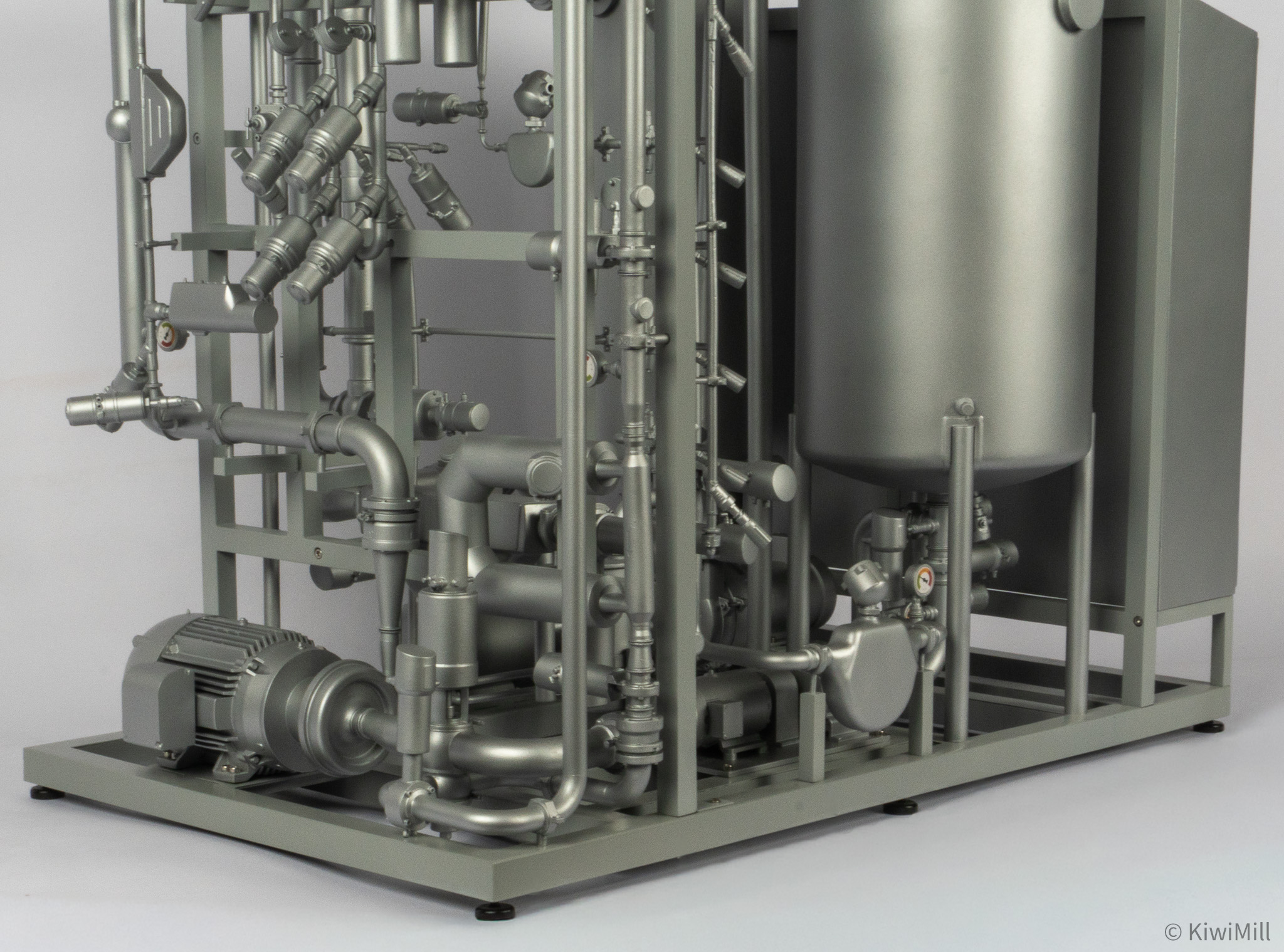

Start at the floor and work up. A finned motor drives a centrifugal pump at the front corner. Banks of valve actuators sit at an angle along the left side, and small knob-ended levers top the valves on the upper manifold. Pressure gauges show colored dial faces. Low in the line, a mass flow meter sits near the large process tank, which stands on legs and has a cone bottom, a side manway and a dished lid. A second tank rises behind it.

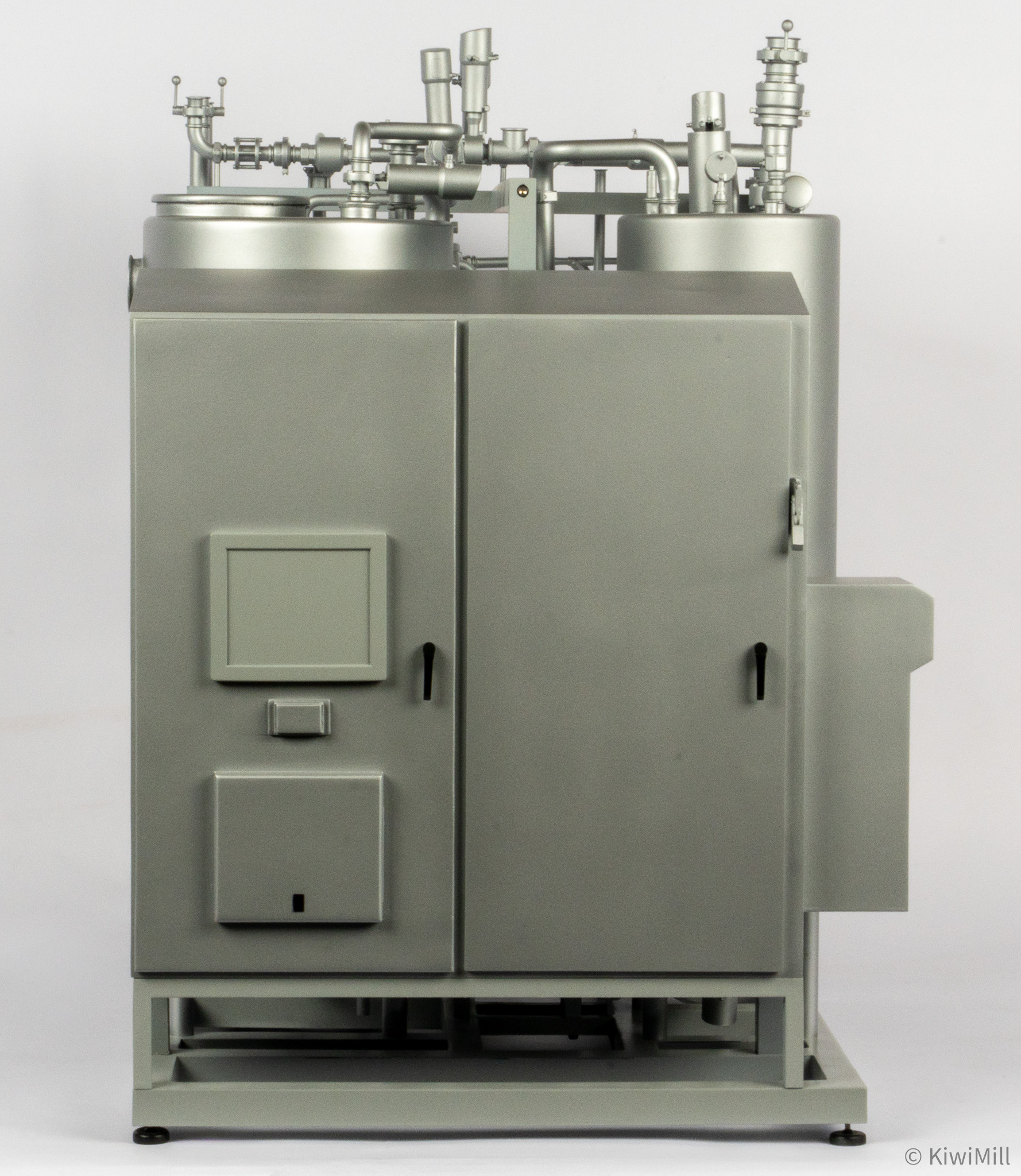

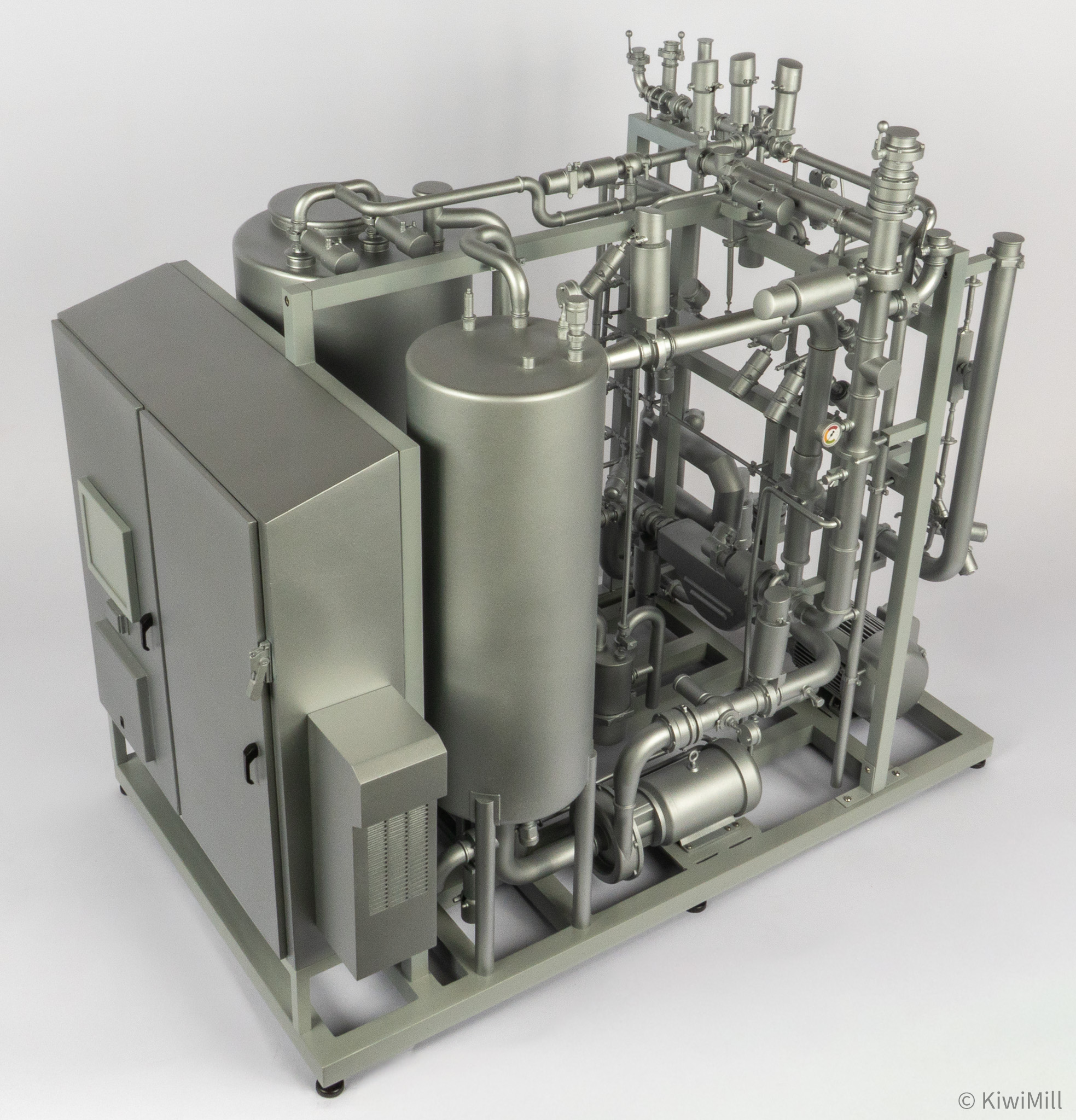

At the far end, the electrical enclosure has two doors with handles, an operator display panel and a smaller box mounted on its side. The skid frame, leveling feet included, is painted a soft gray that sets the structure apart from the satin metallic finish of the tanks and piping.

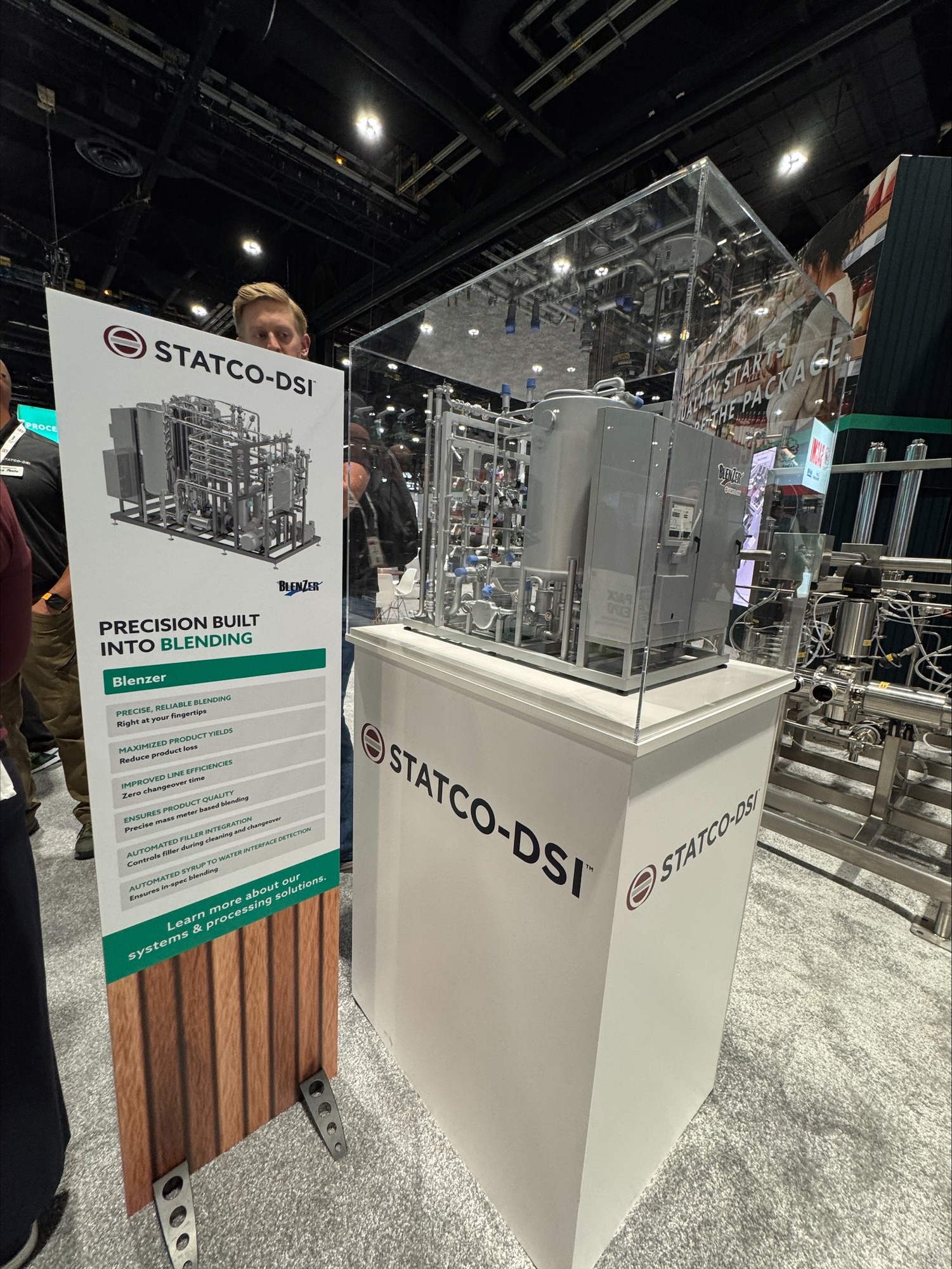

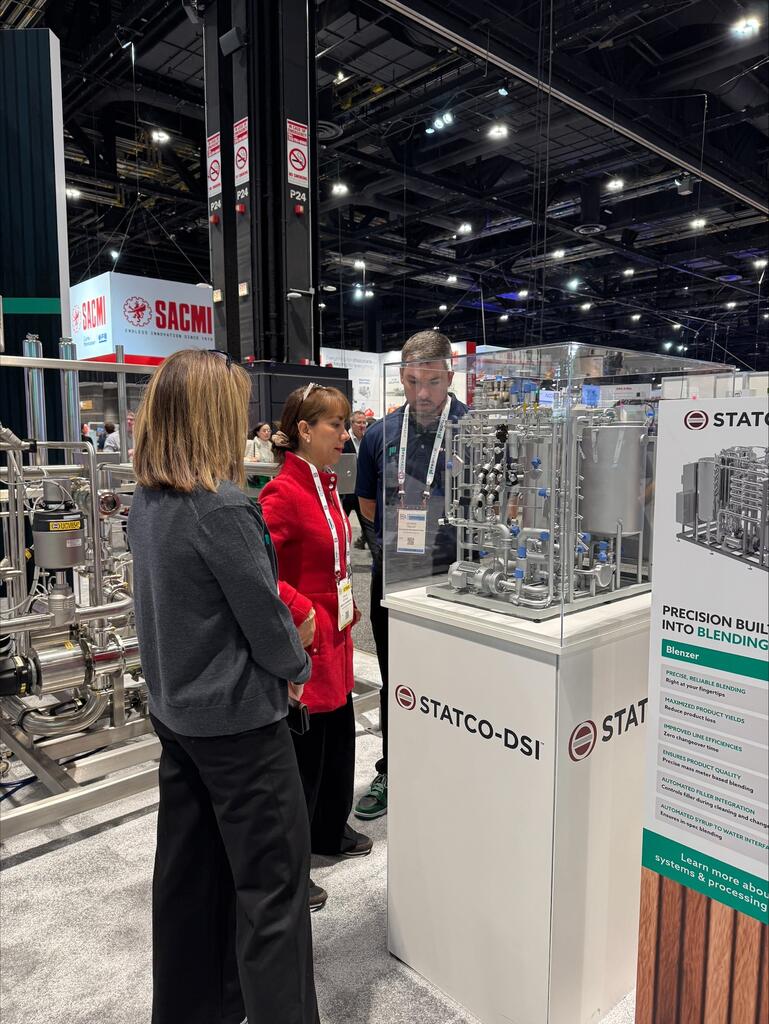

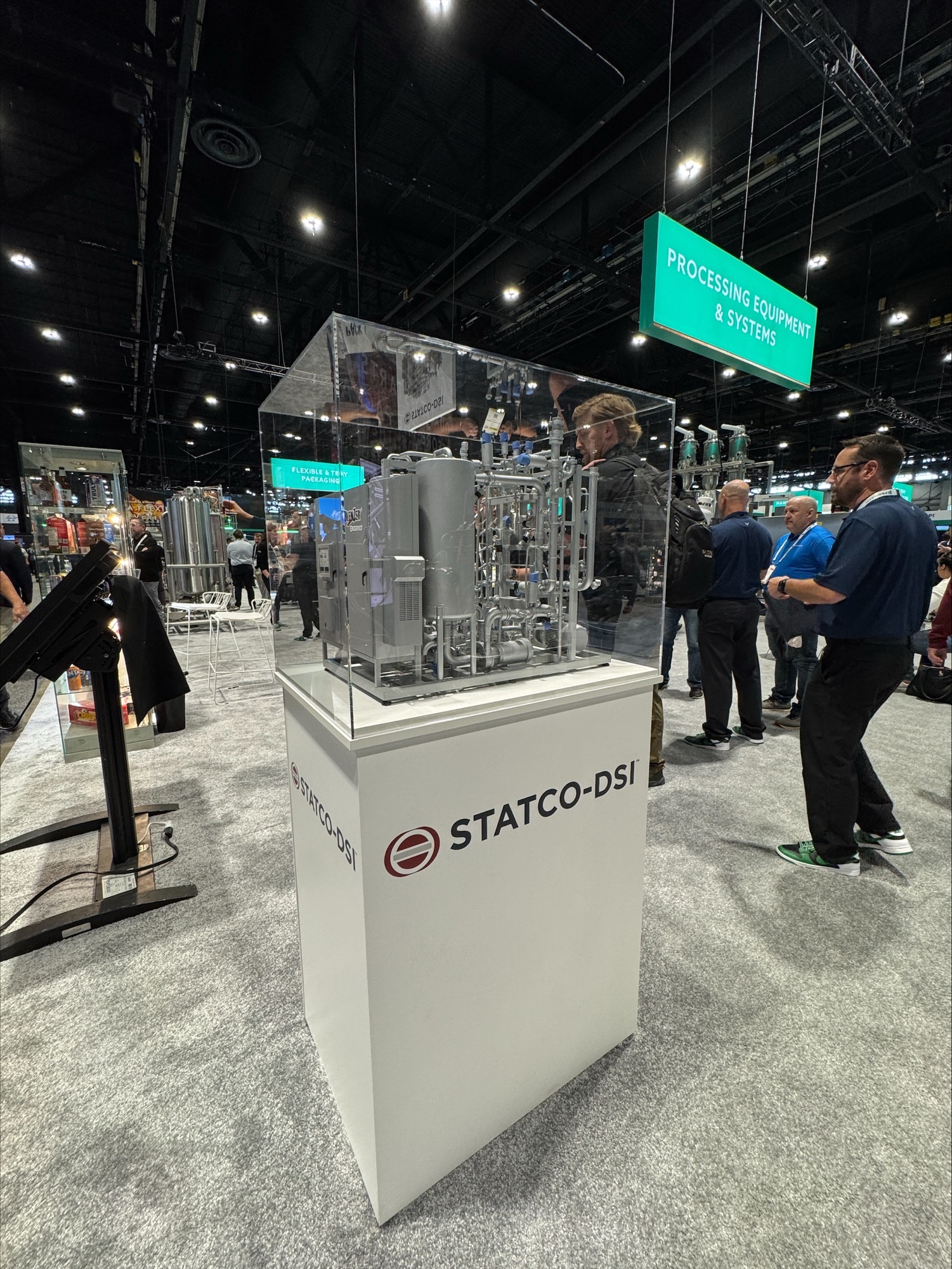

Statco-DSI commissioned the model for trade shows. Every side is finished, so visitors can walk around it and trace the flow from tank to pump to valve cluster.

Tradeshow Photos Courtesy of Statco-DSI (https://www.statco-dsi.com/).
