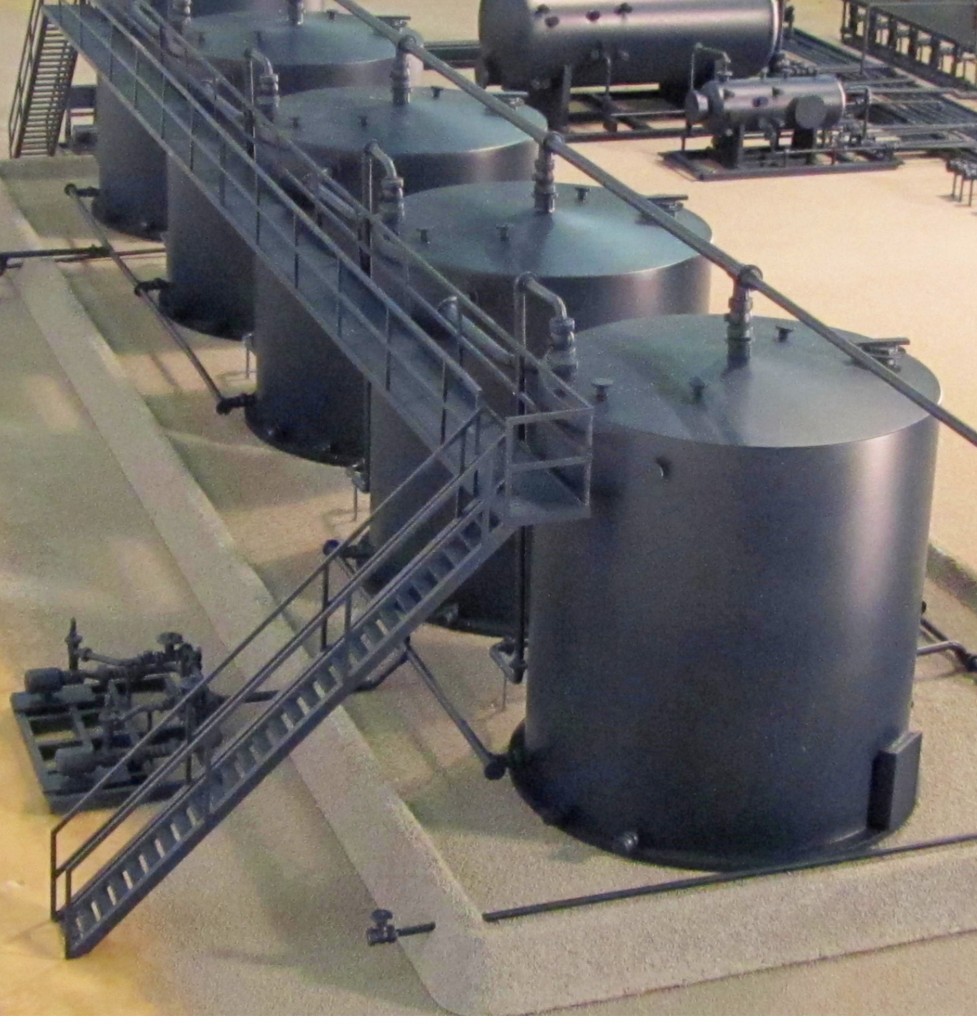

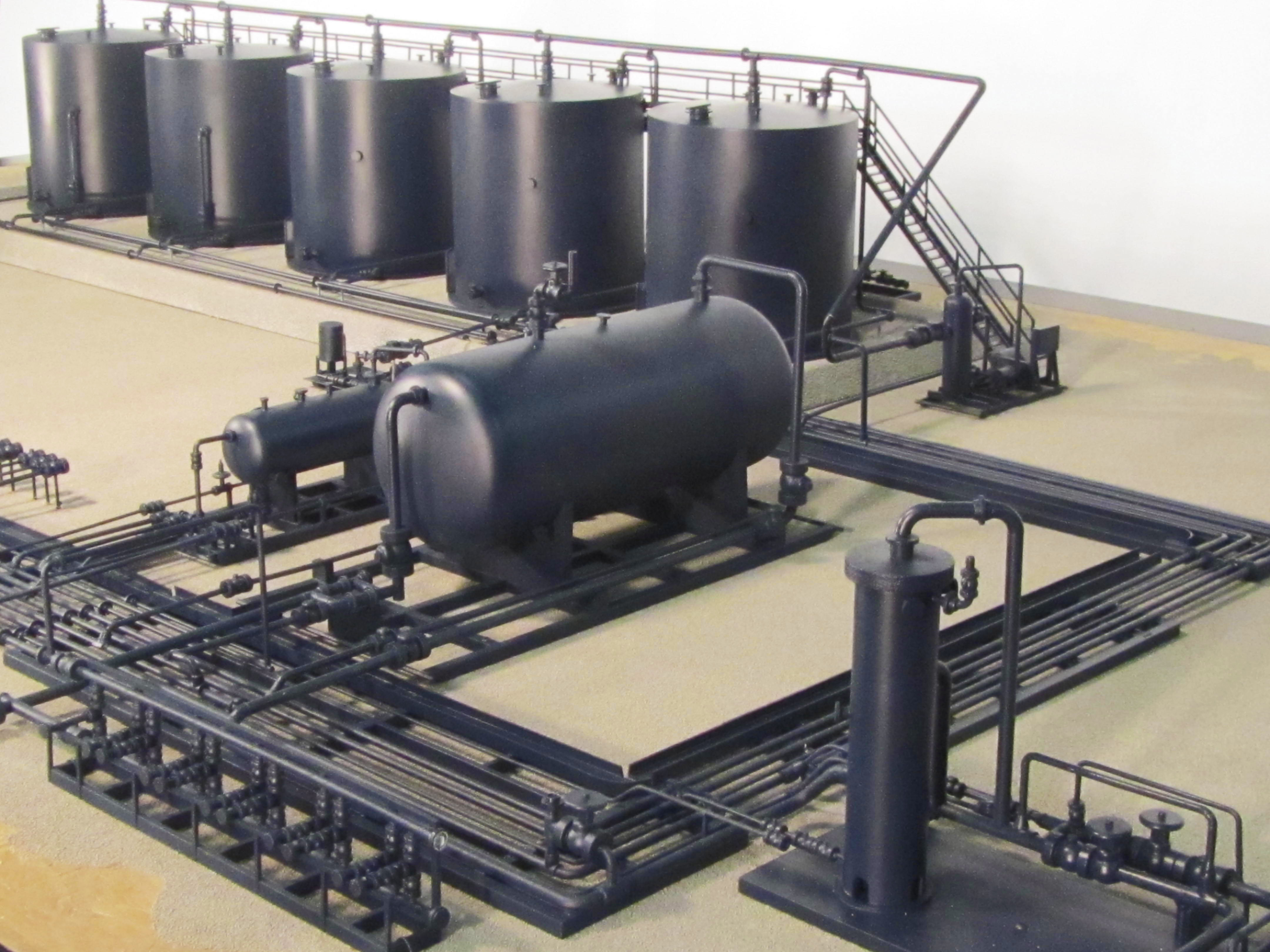

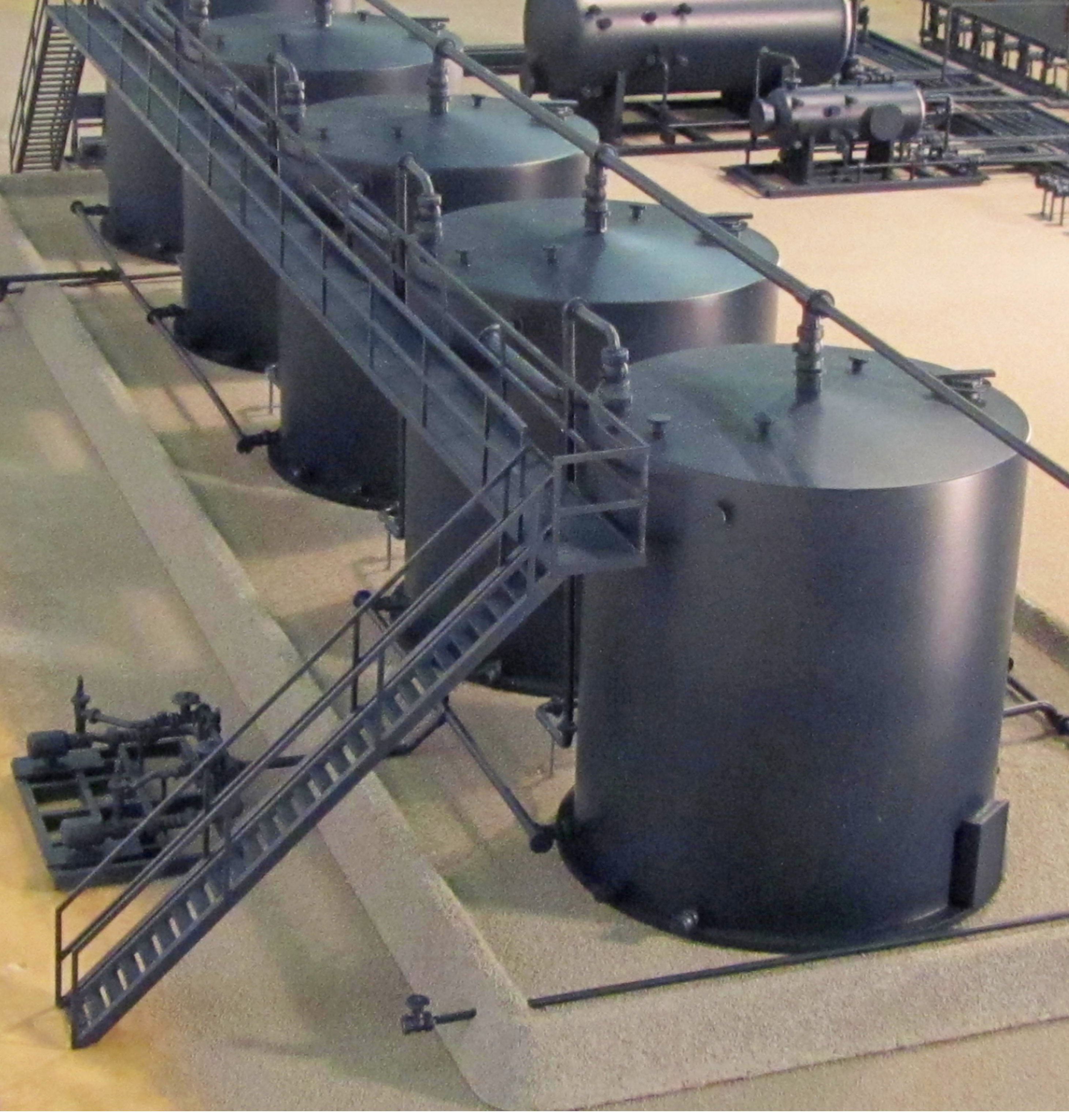

Industrial Tank Battery Model

This tank battery model was requested by our client, FET, for trade show use. It highlights the design structure of this industrial equipment in 1:35 scale. The piping and tanks are built on modular units that are bolted together on site.

The tank battery model was constructed with commercially available scale plumbing parts. It also included laser cut acrylic parts, as well as smaller 3D printed tanks, motors and fittings.
