Fuel Monitoring Cabinet

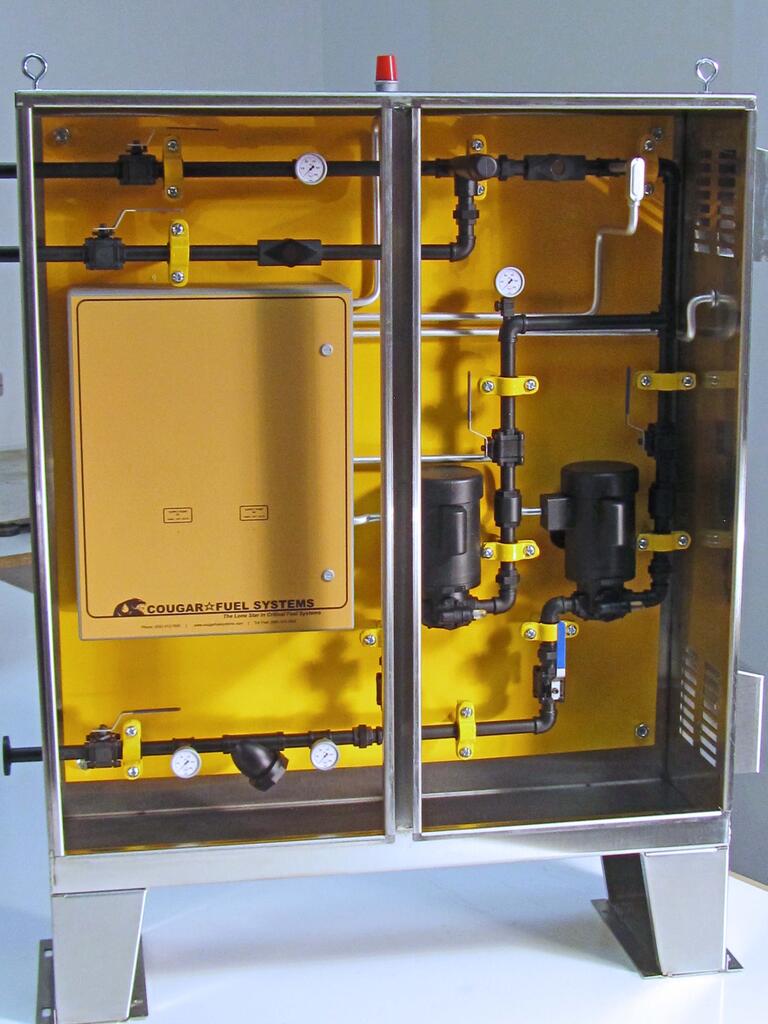

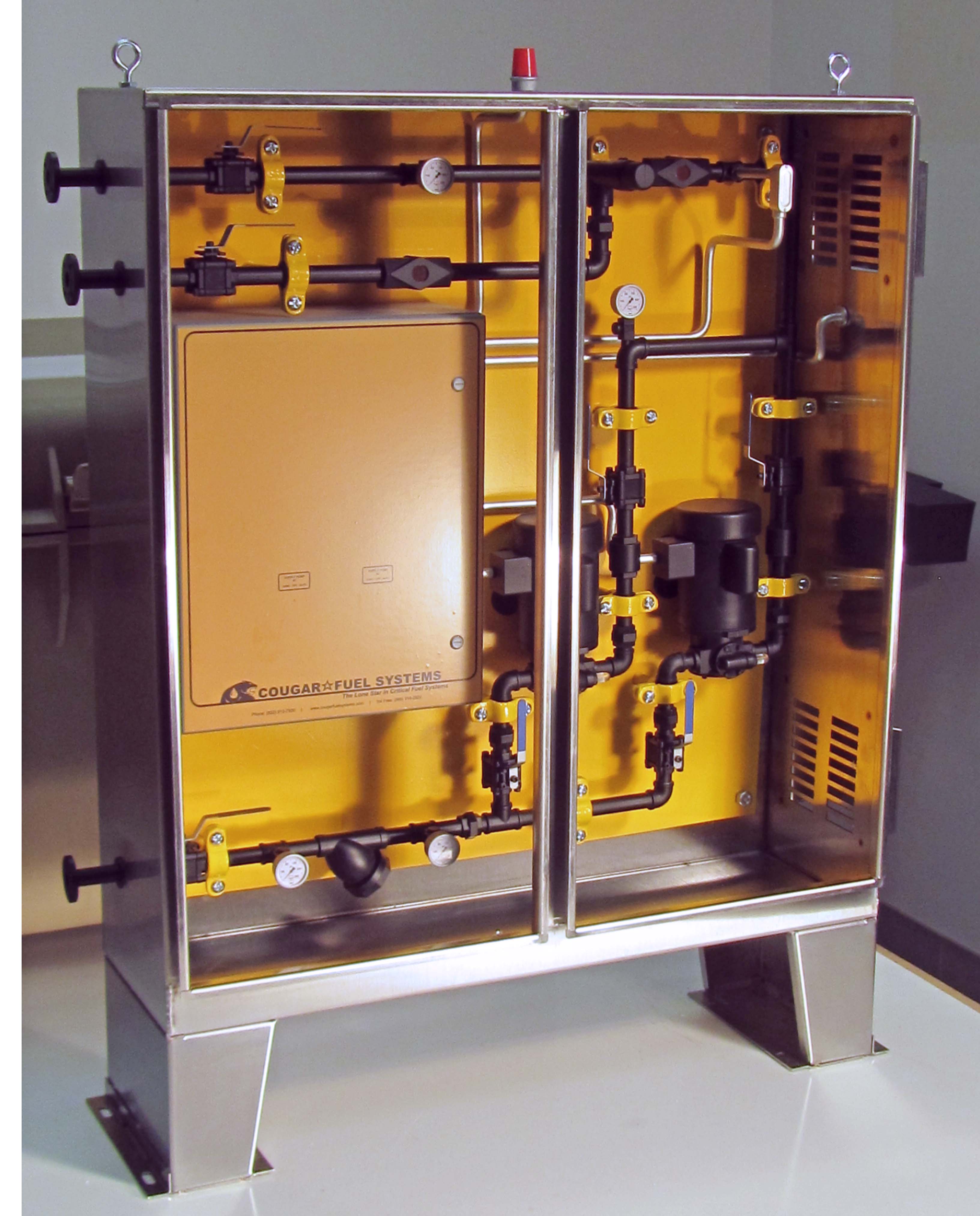

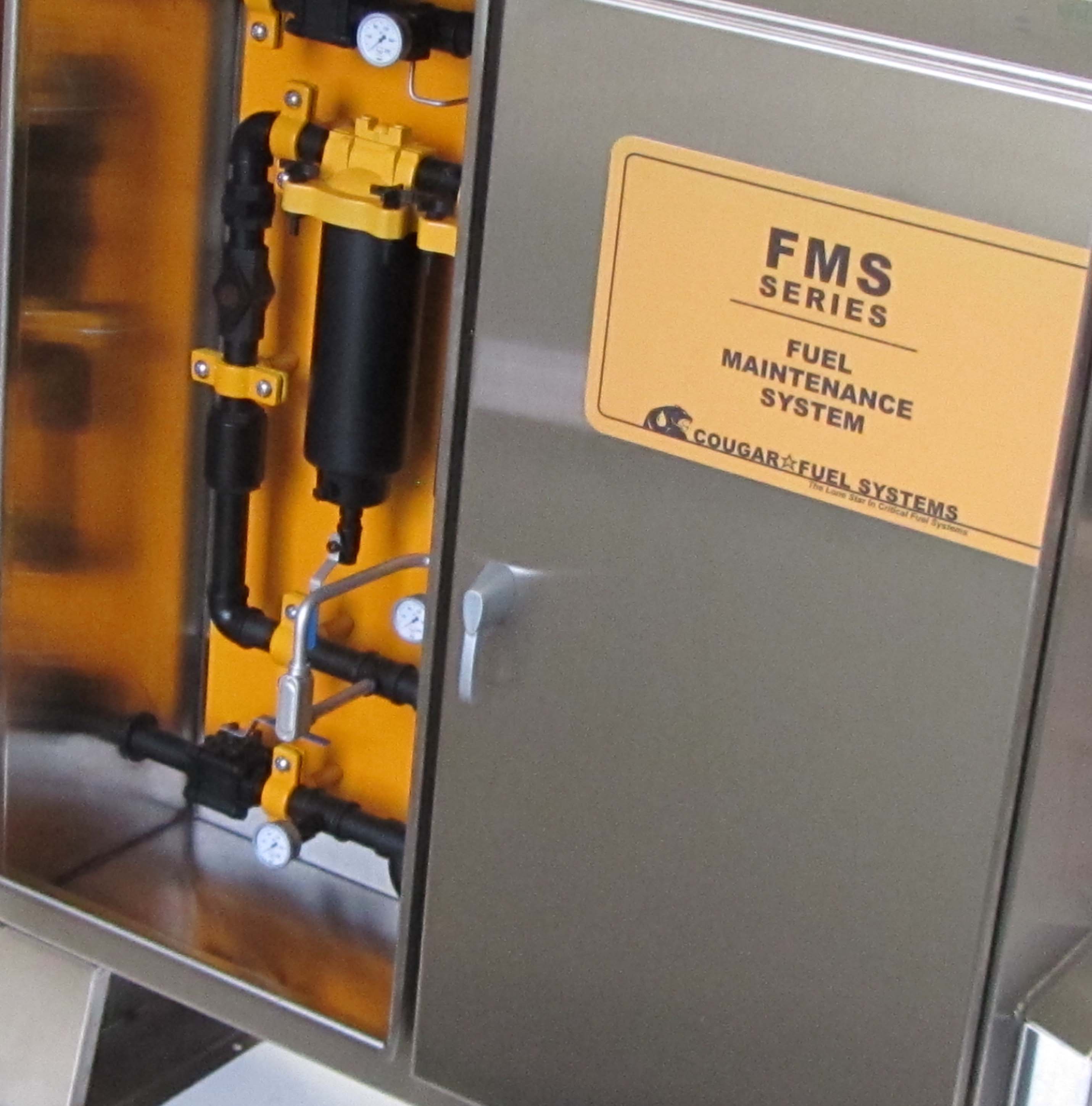

This Fuel Monitoring Cabinet was built for trade show use.

The model is in 1:3 scale. It resembles the real product but is lighter, smaller and easier to transport to trade shows.

The cabinets of the Fuel Monitoring Cabinet were made of stainless steel sheet metal. The piping was constructed from real plumbing pieces. The gauges were 3D printed with vinyl faces. The motors and valves were 3D printed.
