Gate Valve Model – Cutaway

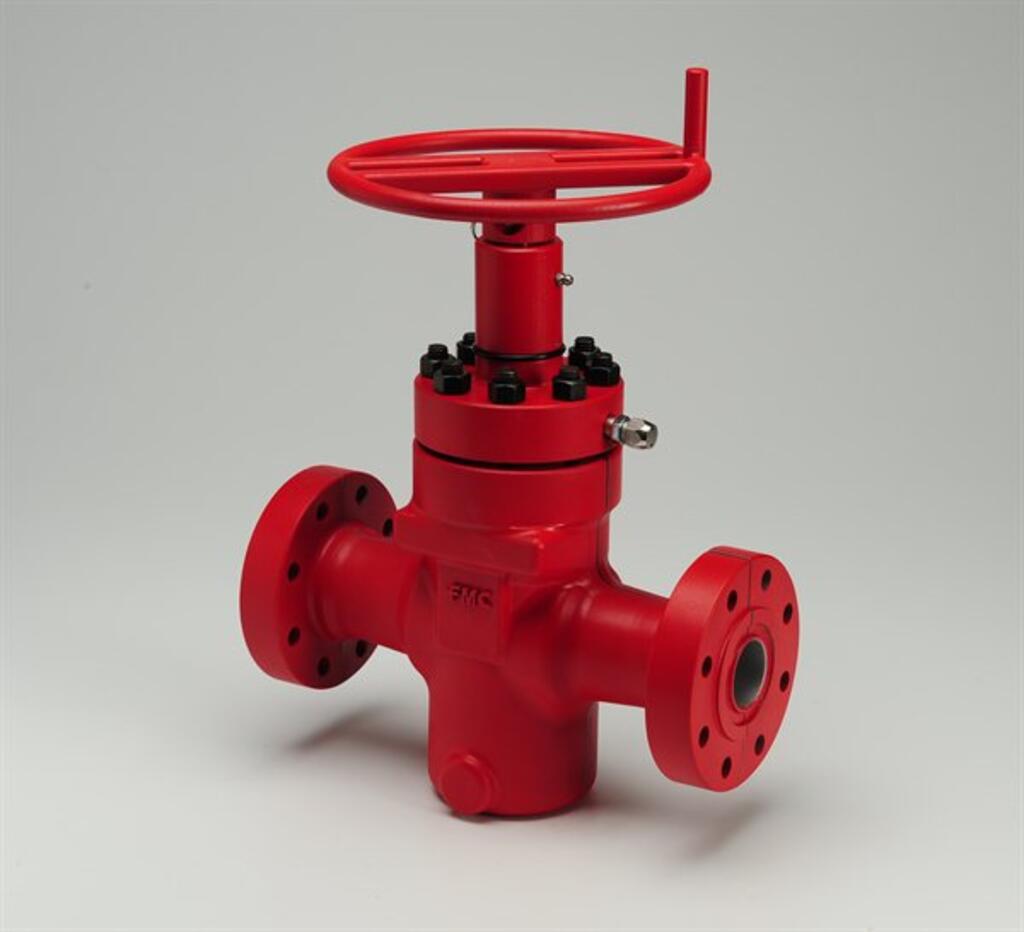

This gate valve model will be used for maintenance training by our client, FMC Technologies. The model is 1/2 the size of the real thing and lighter and easier to work with than the actual valve.

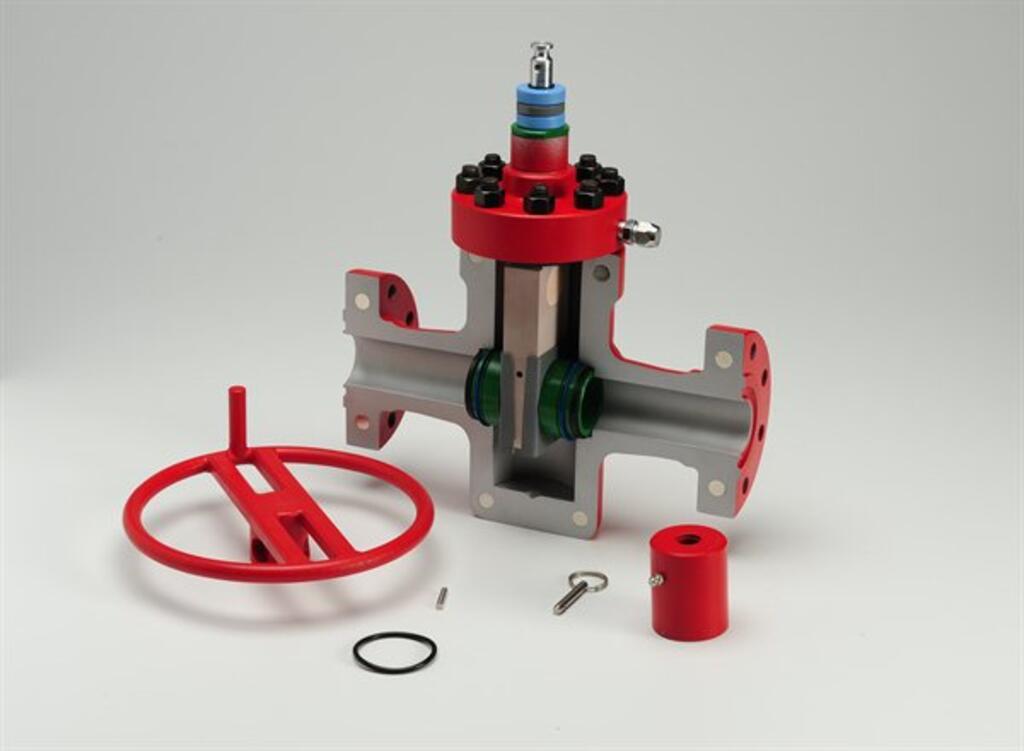

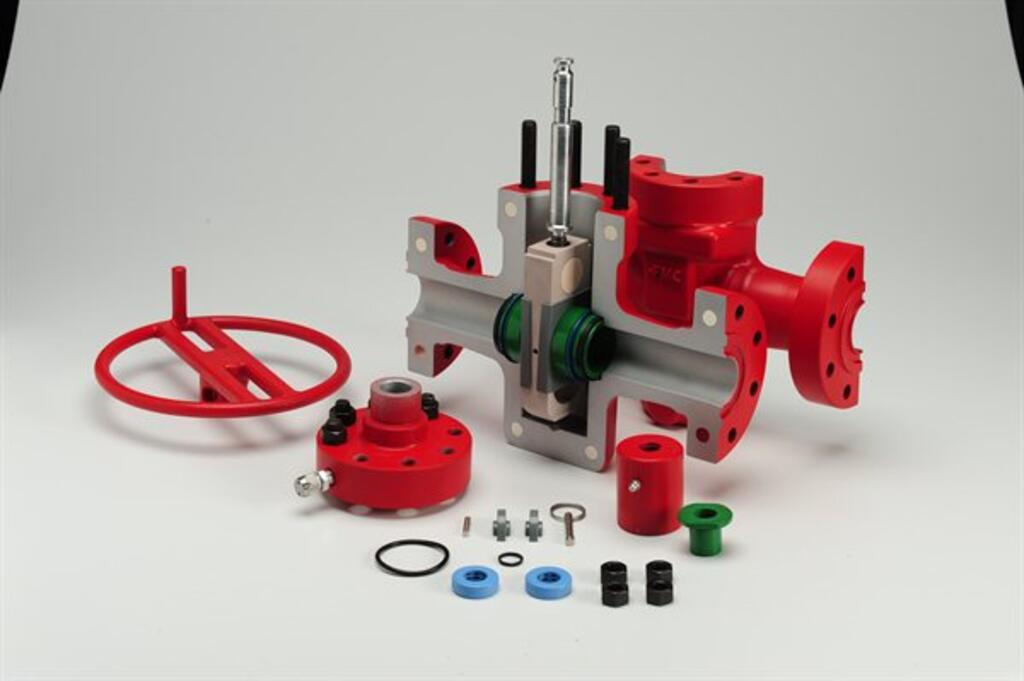

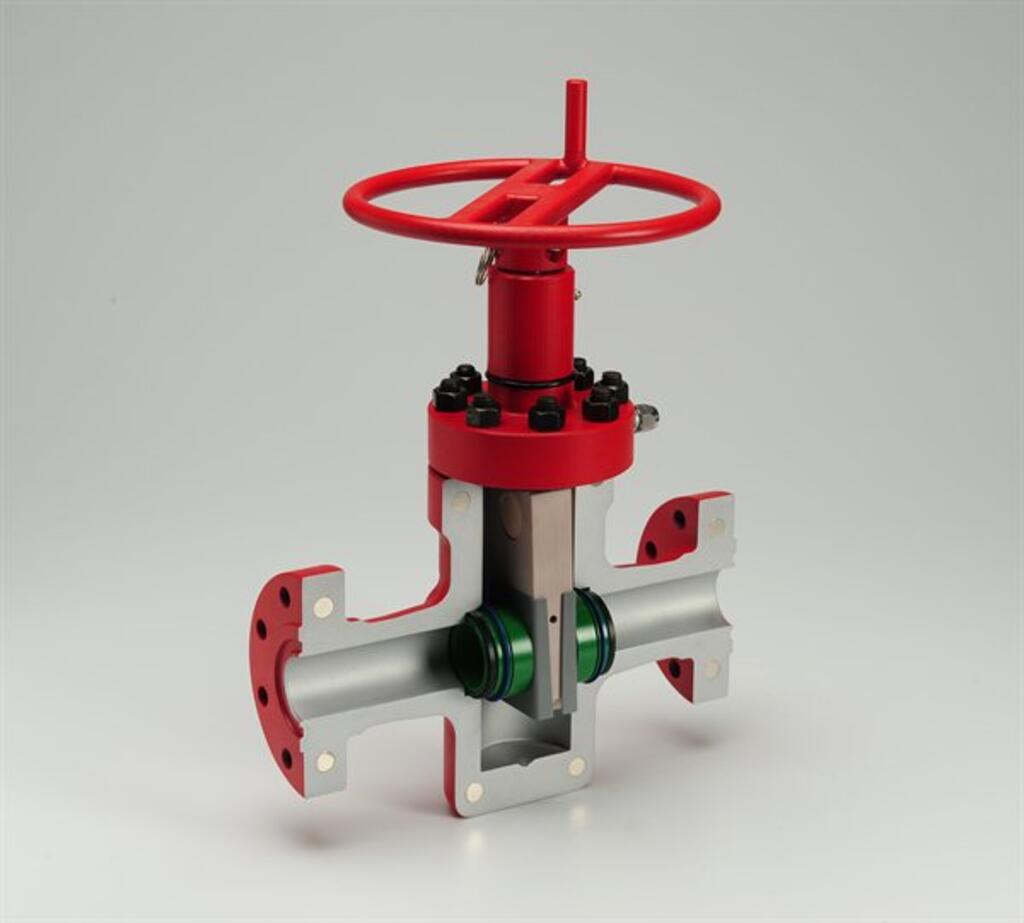

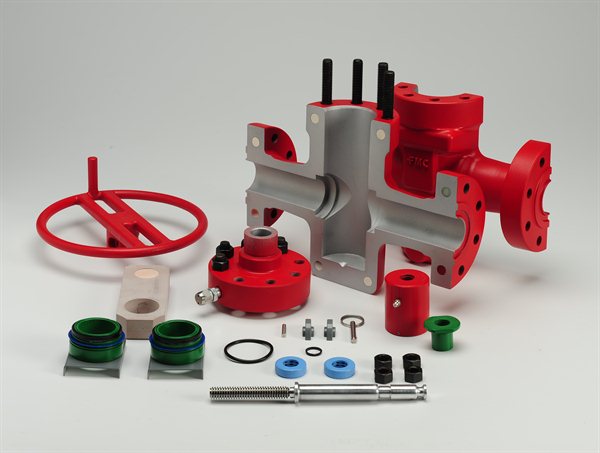

The gate valve model is designed to pull apart with magnets and reveal interior components that can be manipulated.  The individual parts can be assembled and reassembled for training purposes. The wheel is also a working part which moves the gate up and down on the rod when turned.

Check out our Blog for a more detailed description of the project.

CLICK HERE for a YouTube video of the assembly.
